Types of Mitsubishi Rear Axle
A Mitsubishi rear axle plays a crucial role in the drivetrain system of many rear-wheel-drive (RWD) and four-wheel-drive (4WD) Mitsubishi vehicles. Its primary function is to transmit power from the driveshaft to the rear wheels while also supporting the vehicle's weight. The rear axle houses the differential mechanism, which enables the wheels to rotate at different speeds during cornering—essential for smooth handling and tire longevity.
Straight Axle (Solid Axle)
This traditional design consists of a single rigid shaft connecting both rear wheels. It’s commonly referred to as a "dead axle" when not driven, but in RWD setups, it transmits power through the differential. Popular in rugged models like the Mitsubishi L200 and Mitsubishi Outlander, this design is known for its robustness.
Advantages
- Highly durable and reliable under heavy loads
- Simple mechanical design with fewer components
- Cost-effective to maintain and repair
- Ideal for off-road and commercial use
Limitations
- Limited cornering performance due to fixed wheel alignment
- Rougher ride quality on uneven surfaces
- Less precise handling at high speeds
Best for: Off-road vehicles, pickup trucks, and utility applications
Independent Rear Suspension (IRS) Axle
The IRS axle allows each rear wheel to move independently, improving ride comfort and handling dynamics. This system typically uses coil springs or multi-link suspension geometry. It’s featured in models like the Mitsubishi Pajero and Mitsubishi Galant, where refined driving characteristics are prioritized.
Advantages
- Superior ride quality and road-holding ability
- Better traction and stability during cornering
- Enhanced comfort for passengers over varied terrain
- Improved handling and reduced body roll
Limitations
- More complex design requiring regular maintenance
- Higher production and repair costs
- Less suited for extreme off-road conditions
Best for: Sedans, luxury SUVs, and sport-oriented models
| Type | Durability | Ride Quality | Handling Performance | Recommended Use |
|---|---|---|---|---|
| Straight Axle | Excellent | Fair | Good | Off-road, towing, rugged environments |
| IRS Axle | Good | Excellent | Excellent | Paved roads, sporty driving, passenger comfort |
Expert Tip: If you frequently drive on rough terrain or tow heavy loads, a straight axle setup may be more suitable for your needs. However, if you prioritize ride comfort and precise handling, especially in urban or highway settings, an independent rear suspension axle would be the better choice.
Key Components of a Mitsubishi Rear Axle
-
Spindle:
The spindle serves as the connection point between the wheel hub assembly and the axle housing. It plays a vital role in transferring both driving torque and braking forces from the wheels to the chassis. Proper alignment and lubrication of the spindle ensure smooth operation and long service life.
-
Housing:
The axle housing encloses and protects critical internal components such as gears, bearings, and the differential. It also acts as a mounting point for suspension arms and control links. The housing must be robust enough to withstand torsional stress and impacts from road irregularities.
-
Center Section:
This central part contains the differential unit and associated gearing that distributes power to the axle shafts. It connects directly to the driveshaft via a pinion gear and ensures optimal torque distribution between the two rear wheels, especially during turns.
-
Wheel Bearings:
These precision-engineered components allow the wheels to rotate freely with minimal friction while supporting the vehicle's weight. They also manage lateral forces generated during cornering. Regular inspection and replacement of worn bearings are essential to prevent premature axle failure.
Specifications and Maintenance of Mitsubishi Rear Axles
Mitsubishi rear axles are engineered for durability and performance across a wide range of driving conditions. These components play a critical role in vehicle stability, handling, and load distribution. While specifications may vary by model and trim level, understanding the key elements of the rear axle system can help ensure proper maintenance and optimal functionality.
Key Specifications of Mitsubishi Rear Axles
The design and engineering of Mitsubishi rear axles are tailored to meet specific performance needs, whether for passenger cars, SUVs, or off-road vehicles. Here's an in-depth look at the primary specifications:

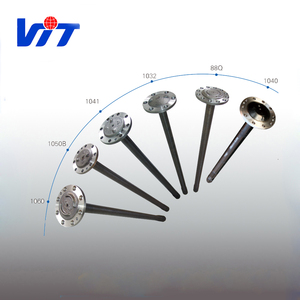

Axle Type
Mitsubishi rear axles typically come in two configurations: semi-floating and full-floating types.
- Semi-floating: The most common type, featuring a single shaft on each side that directly drives the wheel. It provides a balance between strength and weight efficiency.
- Full-floating: Found primarily in heavy-duty models, this design uses dual shafts per side. Each shaft supports and drives its respective wheel, offering enhanced load-bearing capacity and durability under extreme conditions.
Axle Ratio
The axle ratio determines how many times the driveshaft rotates relative to the rear axle. In Mitsubishi vehicles, this typically ranges from 3.08:1 to 4.56:1.
- Lower ratios (e.g., 3.08:1) improve fuel efficiency and are suited for highway cruising.
- Higher ratios (e.g., 4.56:1) enhance towing capability and acceleration but may reduce fuel economy.
Shaft Diameter
The diameter of the rear axle shafts varies depending on the vehicle's intended use and performance requirements. Most Mitsubishi models feature diameters ranging from 27 mm to 35 mm.
- Smaller diameters are adequate for standard passenger vehicles.
- Larger diameters offer increased strength and resistance to torsional stress, ideal for trucks and off-road models.
Wheel Bearings
Rear axle wheel bearings support the wheels and facilitate smooth rotation. Common types used in Mitsubishi vehicles include tapered roller bearings and ball bearings.
- Tapered roller bearings are preferred for their ability to handle both radial and axial loads.
- Ball bearings are lighter and suitable for lower-load applications.
Differential Gear Types
The differential allows wheels to rotate at different speeds while maintaining power delivery. Mitsubishi rear axles incorporate several types:
- Open Differential: Standard in most models, allowing smooth cornering but providing limited traction when one wheel slips.
- Limited-Slip Differential: Offers improved traction by limiting slip between wheels, commonly found in performance-oriented models.
- Locking Differential: Provides maximum traction by locking both wheels together; often seen in off-road variants like the Pajero and Triton.
Suspension Compatibility
The rear suspension system interacts closely with the rear axle to influence ride comfort, handling, and load distribution. Mitsubishi employs various suspension systems based on the model:
- Leaf Springs: Common in older models and commercial vehicles for their robustness and load-carrying capacity.
- Coil Springs: Offer better ride quality and are typical in modern sedans and SUVs.
- Multi-Link Suspensions: Provide superior handling and stability, especially in high-end models like the Outlander PHEV.
| Specification | Typical Range/Type | Performance Impact |
|---|---|---|
| Axle Type | Semi-floating, Full-floating | Determines load capacity and durability |
| Axle Ratio | 3.08:1 – 4.56:1 | Affects acceleration, towing, and fuel economy |
| Shaft Diameter | 27mm – 35mm | Influences strength and resistance to wear |
| Wheel Bearing Type | Tapered Roller, Ball Bearings | Determines load-handling capability and longevity |
| Differential Type | Open, Limited Slip, Locking | Impacts traction and off-road performance |
| Suspension System | Leaf Spring, Coil Spring, Multi-Link | Controls ride quality and handling precision |
Essential Maintenance Practices for Mitsubishi Rear Axles
Regular maintenance is crucial to ensuring the longevity and reliability of your Mitsubishi rear axle. Neglecting these components can lead to costly repairs and compromised safety. Below are detailed maintenance tips tailored to keep your rear axle performing at its best:
Important: If you notice vibrations, unusual noises, or difficulty handling, it may indicate a problem with the rear axle. Addressing these issues early can prevent further damage and ensure safe driving conditions. Consider consulting a certified technician or Mitsubishi dealership for complex diagnostics and repairs.
How to Choose Mitsubishi Rear Axles
Selecting the right Mitsubishi rear axle is crucial for maintaining optimal vehicle performance, durability, and safety. Whether you're replacing a worn-out axle or upgrading for enhanced capabilities, several key factors should guide your decision-making process.
Vehicle Model Compatibility
Ensuring compatibility with your specific Mitsubishi model is the foundation of choosing the correct rear axle. Each Mitsubishi model comes with unique specifications that dictate the type of rear axle it requires. For example:
- The Mitsubishi Outlander typically uses a half shaft design in its rear axle assembly, optimized for compact SUV performance and fuel efficiency.
- Pajero (Montero) models often require robust full-float axles designed for off-road capability and heavy towing loads.
- Lancer Evolution variants may feature limited-slip differential-equipped rear axles engineered for high-performance handling.
Pro Tip: Always cross-reference part numbers with your VIN to ensure perfect fitment.
Vehicle Type and Usage
Your vehicle's type and intended use play a significant role in determining which rear axle will best suit your needs. Heavy-duty applications demand stronger components:
- SUVs and trucks benefit from reinforced housings and upgraded bearings
- Off-road vehicles need sealed components to resist dirt and moisture ingress
- Commercial vehicles should consider torque capacity and wear resistance
- Racing or modified vehicles might require custom gear ratios and materials
Key Insight: Consider both current usage and potential future modifications when selecting your axle type.
Driving Conditions and Terrain
The environments where you most frequently drive significantly influence the ideal rear axle characteristics. Different conditions place varying demands on axle components:
- Off-road enthusiasts benefit from high-clearance designs and protective coatings
- City drivers prioritize quiet operation and smooth power delivery
- Towing-focused users need enhanced heat dissipation features
- Cold climate drivers should look for corrosion-resistant treatments
Environmental Tip: Coastal area residents should prioritize salt-corrosion protection features.
Load Capacity Requirements
Understanding your typical load requirements ensures you select an axle that can withstand regular stress without premature failure:
- Light passenger use: Standard duty rating sufficient
- Regular towing: Look for "HD" or heavy-duty designation
- Commercial hauling: Seek axles with reinforced internals and upgraded lubrication systems
- Performance builds: Consider upgraded spline counts and materials
Important: Never exceed manufacturer-recommended load capacities regardless of axle rating.
Selection Advice: When considering used or aftermarket Mitsubishi rear axles, always inspect for signs of excessive wear or damage. Pay particular attention to the condition of the differential gears, bearing surfaces, and housing alignment. A properly maintained axle can provide years of reliable service, while a compromised unit can lead to expensive repairs down the road.
Gear Ratio Matching
Proper gear ratio selection and matching between the rear axle and transmission system is critical for efficient power delivery and drivetrain longevity:
- Stock replacement: Match original equipment (OE) gear ratios exactly
- Fuel economy focus: Higher numerical ratios (e.g., 3.0:1) at highway speeds
- Towing/hauling: Lower numerical ratios (e.g., 4.1:1) for increased low-end torque
- Performance tuning: Custom ratios to match engine power curves
Critical Note: Mismatched gear ratios can cause severe drivetrain damage and poor performance.
Budget and Value Considerations
While cost is always a factor, it's important to balance initial expense with long-term value when selecting a Mitsubishi rear axle:
- Economy options: Suitable for temporary fixes or low-mileage vehicles
- OEM replacements: Balanced performance and reliability at premium pricing
- Aftermarket upgrades: Often offer improved features at competitive prices
- Rebuilt units: Cost-effective but verify warranty and rebuild quality
Smart Buying Tip: Factor in expected lifespan and maintenance costs when comparing options.
| Application Type | Recommended Axle Features | Durability Rating | Average Cost Range |
|---|---|---|---|
| Standard Passenger Use | Factory specification, standard lubrication | 5-7 years | $300-$600 |
| Light Off-Road | Sealed bearings, corrosion protection | 4-6 years | $400-$800 |
| Heavy Towing | Reinforced housing, HD bearings | 6-9 years | $600-$1,200 |
| High-Performance | Upgraded materials, custom gearing | 3-5 years (track use) | $1,000-$2,500+ |
DIY Replacement Guide for Mitsubishi Rear Axle
Replacing a Mitsubishi rear axle is a complex task that demands mechanical skill, patience, and the right tools. This guide provides a detailed walkthrough to help you successfully complete the job while minimizing risks and ensuring long-term reliability of your vehicle's drivetrain system.
Safety Warning: Working with heavy components like a rear axle poses significant injury risks. Always use proper lifting equipment, wear safety glasses and gloves, and never work under a vehicle supported only by a jack. Ensure your workspace is well-lit and free from hazards.
Step-by-Step Replacement Process
- Prepare the Vehicle
Begin by parking the vehicle on a level, stable surface to prevent movement during the procedure. Engage the parking brake firmly and place wheel chocks in front of the front wheels for added security. Use a high-quality floor jack to lift the rear of the vehicle, then secure it on sturdy jack stands placed at designated jacking points specified in your service manual.
- Ensure the vehicle is completely off and transmission is in park (or first gear for manuals)
- Allow the engine and exhaust system to cool completely before beginning work
- Keep a fire extinguisher nearby when working under vehicles
- Remove the Wheels
Loosen the lug nuts while the vehicle is still on the ground using a breaker bar or impact wrench set to appropriate torque. Once the vehicle is securely raised, remove the wheels completely to provide better access to the axle assembly. Keep all hardware organized in labeled containers to avoid confusion during reassembly.
- Use a torque wrench to check recommended lug nut removal specifications
- Inspect wheel bearings for play while wheels are removed
- Clean brake dust and debris from hubs before reinstallation
- Drain the Differential Oil
Locate the differential cover on the rear axle housing – typically a large circular plate at the bottom. Place a suitable oil catch pan beneath the differential before removing the drain plug with an appropriately sized wrench. Allow all oil to drain completely before proceeding. Inspect the drained oil for metal particles which could indicate internal wear issues.
- Check for magnetic drain plugs that collect metal debris
- Warm oil drains more completely than cold oil
- Dispose of used differential oil at certified recycling centers
- Disconnect the Driveshaft
Before disconnecting, mark the driveshaft position relative to the differential yoke to maintain proper balance upon reinstallation. Loosen the U-joint bolts connecting the driveshaft to the differential flange. Carefully separate the driveshaft and support it securely while you work. In some models, you may need to unbolt the center bearing mount as well.
- Take photos of connections for reference during reassembly
- Use thread locker on bolt threads when reinstalling
- Inspect U-joints for wear or binding before reuse
- Remove the Suspension Components
Identify and label all suspension connections to the axle including shock absorber mounts, control arms, and sway bar links. Remove these components systematically, keeping track of washers and bushings. For vehicles with coil springs, use spring compressors if necessary to safely manage tensioned components.
- Apply penetrating oil to rusted fasteners 24 hours in advance
- Replace worn bushings during this maintenance window
- Mark positions of adjustable suspension components
- Disconnect the Brakes
For vehicles with drum brakes, consider adjusting the brake shoes inward for easier wheel removal. Disconnect brake lines carefully using two wrenches to avoid twisting fittings. Cap open hydraulic lines immediately to prevent contamination and fluid loss. Remove calipers or brake drums along with their mounting brackets.
- Use zip ties to suspend calipers safely without stressing brake lines
- Label brake line connections clearly for reassembly
- Consider replacing brake hoses during major axle work
- Support the Rear Axle
Position a sturdy transmission jack or axle-specific support stand beneath the rear axle assembly. Adjust the height so the jack makes firm contact with the axle housing. Apply slight upward pressure to take load off mounting points before removing any securing bolts.
- Use rubber adapters on jack pads to protect axle surfaces
- Double-check jack stability before proceeding
- Never rely solely on chains or straps to support heavy components
- Remove the Rear Axle Assembly
Systematically remove all remaining mounting bolts connecting the axle to the vehicle frame. Common locations include leaf spring shackles, trailing arm mounts, and crossmember connections. With all fasteners removed, carefully lower the axle assembly while maintaining control throughout the process.
- Work with a partner for better control of heavy components
- Protect surrounding components from damage during removal
- Inspect frame mounting points for wear or cracks
- Install the New Rear Axle
Position the replacement axle into place using the same jack setup. Align mounting points carefully before inserting bolts. Reconnect brake lines, suspension components, and the driveshaft following original markings. Fill the differential with manufacturer-recommended gear oil through the fill plug opening until oil reaches the correct level.
- Torque all fasteners to factory specifications using a calibrated wrench
- Use new crush sleeves where required for pinion adjustments
- Verify proper backlash and gear pattern if rebuilding differential
- Final Steps
Gradually lower the vehicle to the ground and remove jack stands. Reinstall wheels and torque lug nuts to specifications. Start the engine and check for unusual noises or vibration. Take the vehicle for a short test drive at low speeds to verify basic functionality before highway speeds.
- Check for fluid leaks after initial startup
- Monitor brake performance during early test driving
- Recheck all fasteners after 50-100 miles of operation
| Phase | Essential Tools | Recommended Accessories | Common Challenges |
|---|---|---|---|
| Preparation | Jacks and stands, socket sets, torque wrench | Penetrating oil, marking pens, camera | Access to specialized tools, space limitations |
| Disassembly | Breaker bar, u-joint remover, spring compressor | Drip pans, wire ties, protective covers | Stuck fasteners, limited clearance, fluid spills |
| Installation | Transmission jack, alignment tools, seal drivers | New gaskets, thread locker, RTV silicone | Proper alignment, torque sequencing, connection accuracy |
| Testing | Fluid refill kits, diagnostic scanner | Noise detection tools, leak detection dyes | Undetected leaks, abnormal vibrations, warning lights |
Expert Tip: Before installing the new axle, thoroughly inspect all related components such as bushings, bearings, and seals. Replace any worn parts to ensure optimal performance and longevity. Consider upgrading to polyurethane bushings for improved handling characteristics if appropriate for your vehicle application.
Important Note: Some modern Mitsubishi models incorporate advanced systems like electronic stability control and traction control that interact with rear axle components. Consult factory service information for specific calibration requirements after axle replacement to ensure proper operation of safety systems.
Mitsubishi Rear Axle FAQ
The Mitsubishi rear axle is a critical component of the vehicle's drivetrain system, responsible for several essential functions:
- Weight Distribution: It supports and evenly distributes the vehicle’s weight across the rear wheels, ensuring balanced handling and tire wear.
- Power Transmission: It transfers torque from the differential to the wheels, enabling them to rotate in unison.
- Stability & Traction: By maintaining proper wheel alignment and connection to the road surface, it enhances driving stability, especially during cornering or on uneven terrain.
- Load Bearing: The rear axle plays a key role in carrying the load of the vehicle and any cargo, particularly important for SUVs and trucks.
Depending on the model, Mitsubishi vehicles may use either a solid (beam) axle or an independent rear suspension (IRS) setup, each offering distinct advantages in performance and comfort.
Mitsubishi has equipped many of its popular models with rear axles, particularly those designed for rugged use, off-road capability, or towing purposes. Some notable examples include:
| Model | Typical Axle Type | Key Features |
|---|---|---|
| Mitsubishi Pajero / Montero | Solid Beam Axle (4x4 variants) | Heavy-duty construction for off-road durability and articulation |
| Mitsubishi Triton / L200 | Rigid Rear Axle (pickup bed support) | Designed for heavy payloads and towing applications |
| Mitsubishi Outlander (older generations) | Independent Rear Suspension | Offers better ride quality and space optimization |
| Mitsubishi ASX | Independent Multi-Link | Focuses on comfort and refined handling for urban driving |
Newer compact models like the Eclipse Cross typically feature IRS setups for improved ride quality, while older or more rugged models retain traditional beam axles for durability and simplicity.
Upgrading your Mitsubishi’s rear axle can be a smart move if you're looking to enhance performance, increase towing capacity, or improve off-road capability. However, there are several considerations before proceeding:
- Compatibility: Ensure that the upgraded axle is compatible with your specific model year, trim level, and drivetrain configuration (e.g., 4WD vs. 2WD).
- Purpose: Determine your primary use case—off-roading, towing, or daily commuting—as this will dictate the type of upgrade needed (e.g., locking differential, stronger half-shafts, reinforced housing).
- Professional Installation: Due to the complexity involved, always seek assistance from a certified mechanic or a Mitsubishi dealership to avoid compromising safety or warranty terms.
- Legal Compliance: Modifications should meet local regulations and emissions standards where applicable.
Common upgrades include limited-slip differentials, chromoly axle shafts, and reinforced differential covers. These enhancements can significantly improve reliability under stress and provide better traction in challenging conditions.
