Mechanical hinge design

Types of mechanical hinge design

The mechanical hinge design connects two parts while allowing movement. It is used in various applications, from doors and laptops to machinery. It provides a stable pivot point for rotating components. There are different types of mechanical hinges. They include:

• Butt Hinges

  These hinges are commonly used on doors. They have two plates (or leaves) that are joined by a pin. One plate is fixed on the door frame. The other plate is attached to the door panel. When installed, the plates are aligned so that the door can swing open and closed.

• Concealed Hinges

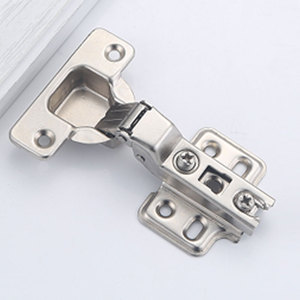

  These are also called cup hinges. They are commonly used in cabinets and furniture. They are installed inside the cabinet door and frame. So, when the door is closed, the hinge is hidden from view. This provides a clean and sleek appearance.

• Pivot Hinges

  Pivot hinges are placed at the top and bottom of the door. They allow the door to rotate around a pivot point instead of a pin. They are ideal for heavy doors. They distribute weight more evenly. They are also used in glass doors and in places where a swinging door is needed.

• Spring Hinges

  These hinges contain a spring inside. It causes the door to close automatically when opened. They are used in doors that need to close automatically. For example, fire exit doors and restroom doors.

• Corner Hinges

  These hinges are placed on corners of cabinets or furniture. They enable doors or panels to open around a corner. They come in different designs, such as full overlay or half overlay, depending on how the doors are positioned.

• Drop Hinges

  These hinges are used on platforms. They allow the door or panel to drop straight down when opened. This makes them useful for access panels, hatch covers, and platforms.

• Adjustable Hinges

  These hinges allow for adjustments in the alignment of the door or panel. They are useful for situations where precision alignment is needed. For example, in high-end cabinetry and custom doors.

• Scissor Hinges

  These hinges open and close like scissors. They are used in applications where space is limited. For example, in folding partitions and compact machinery enclosures.

Functions and features of mechanical hinge design

Mechanical hinges have different features, and here are some of their functions and features:

• Connecting two parts

  The mechanical hinge's primary function is to connect two parts, such as a door and a frame. This allows the door to open and close, providing access to an enclosed space. Mechanical hinges connect multiple parts, like a laptop screen and body, allowing for smooth movement and functionality.

• Weight distribution

  Mechanical hinges help distribute weight evenly across the hinge's length. This prevents excessive pressure on a single point and ensures durability. For example, in a cabinet door hinge, the weight of the door is distributed across the top and bottom hinges when closed.

• Rotation

  Mechanical hinges allow two parts to rotate around a fixed point. For example, a door can open up to 90 or 180 degrees, depending on the type of hinge. Laptop hinges can rotate 360 degrees, allowing the screen to face any direction.

• Adjustability

  Many mechanical hinges offer adjustable functions. This allows users to modify the alignment and gap between the two parts. For example, door hinges can be adjusted to ensure the door fits perfectly in the frame. Some cabinet and furniture hinges allow for minor adjustments to keep everything looking and functioning well.

• Locking

  Some mechanical hinges have locking features. This allows users to lock the hinge in a specific position when needed. For example, in fire safety regulations, doors may need to be locked in an open position using specific types of hinges. Special heavy-duty hinges can support doors weighing up to 400 pounds and are often used in schools, detention centers, and other facilities.

• Concealment

  Some mechanical hinges are designed to be hidden when the door or cabinet is closed. This provides a clean and seamless look. Examples include piano hinges that run the entire length of the door or Blum hinges for cabinets. In laptops, the hinge is often recessed into the body and screen, making it less visible while still allowing for smooth opening and closing.

Scenarios of mechanical hinge design

Mechanical hinge design is an essential component in various applications and industries. It provides durability, reliability, and precise movement. Here are some common usage scenarios:

• Doors and Gates

  Mechanical hinge design is commonly used in doors and gates. It controls and supports the swinging motion. These include: - Residential doors: Mechanical hinges are used for home doors and gates. - Commercial doors: They are used in office and building doors. - Industrial doors: These hinges are suitable for heavy-duty and high-traffic doors. - Security doors: Mechanical hinges provide strength and stability to security doors.

• Cabinets and Furniture

  These hinges are used in cabinets and furniture to allow smooth opening and closing motion. For instance: - Kitchen cabinets: Mechanical hinges are used in kitchen cabinet doors. - Wardrobe doors: They are used in sliding and hinged wardrobe doors. - Office furniture: These hinges are used in filing cabinets, desks, and storage units.

• Windows

  Mechanical hinges support and control the opening and closing motion of windows. They include: - Casement windows: These windows are opened outwards or inwards using mechanical hinges. - Awning windows: These windows are opened from the top using hinges. - Hinged patio doors: Mechanical hinges are used in patio doors that function like windows.

• Machinery and Equipment

  These hinges support and control moving parts in different machines and equipment. For example: - Maintenance access panels: Mechanical hinges are used in access panels for easy opening and closing. - Covers and shields: They are used in machinery covers to protect and allow access to internal parts. - Conveyor belts: Mechanical design hinges are used in conveyor systems for smooth operation.

• Automotive and Transportation

  Mechanical hinge design is widely used in the automotive industry. It controls and supports the swinging motion of different car parts. For instance: - Doors: They are used in passenger doors, trunk doors, and hood doors. - Bonnet and trunk lid: Mechanical hinges support the opening and closing of the engine cover and boot. - Tailgate: These hinges are used in the rear door of SUVs and vans.

How to Choose Mechanical Hinge Design

When choosing the right mechanical hinge design for any application, it is important to consider some things. These include:

• Load-Bearing Capacity

  Engineers or designers must ensure that the selected mechanical hinge design can support the weight of the door or cover plate. This ensures durability and smooth operation. Each manufacturer provides the technical specifications and details indicating the load capacity of each hinge type. In some cases, the intended use and environmental factors must be considered, such as temperature, moisture, and presence of chemicals.

• Angle of Opening

  Different types of mechanical hinges allow for different ranges of motion. For example, continuous hinges allow for 180-degree opening, while piano hinges allow for 90-degree opening. It is important to consider the angle of opening to allow for the desired range of motion. Special applications may require specific angles of opening, such as medical carts and laboratory equipment.

• Material Selection

  The choice of material used to manufacture mechanical hinge design affects its performance, durability, and functionality. Common materials include stainless steel, brass, plastic, and aluminum. Stainless steel is a favorite choice for most applications due to its strength and corrosion resistance. The material selection also affects the aesthetic appearance of the hinge. Brass and stainless steel offer a more pleasing appearance for exposed hinges, while functional plastic or painted steel may suffice for utility purposes.

• Mounting Options

  The mechanical hinge design must be compatible with the mounting surface. This includes recessed hinges, surface-mounted hinges, and pivot hinges. It is important to consider the mounting options to allow for easy installation and optimal performance. Some hinges, like concealed hinges, provide a clean and seamless look, while others, like pivot hinges, are able to support heavy doors and provide smooth operation.

• Adjustment Features

  Some mechanical hinge designs allow for adjustments after installation. These include alignment, height, and lateral adjustments. For example, cam hinges and hydraulic hinges offer adjustment features that ensure proper functioning of doors and other applications. The adjustment features are important because they allow for fine-tuning and compensation for settling or misalignment. This enhances the longevity of the hinge and ensures optimal performance.

mechanical hinge design Q&A

Q1: What are the key components of a mechanical hinge design?

A1: Mechanical hinge design primarily consists of leaf plates, pivot/knuckles, pin, bearing, axis, and in some cases, arms. The leaf plates form the connection between the door frame and the door. Pivot or knuckles connect the two leaves, while the pin holds the pivot in place. The bearing provides support for the hinge while the axis is the central line around which the door will rotate.

Q2: What are the types of mechanical hinge design?

A2: There are several types of mechanical hinges, including butt hinges, continuous or piano hinges, pivot hinges, concealed hinges, and door pivot hinges. Each of these hinges has specific applications.

Q3: What are the factors to consider when choosing mechanical hinges?

A3: Several factors must be considered when choosing a mechanical hinge, such as the door's weight and size, the material of the door and frame, the level of security required, the range of motion, and the aesthetic preferences. Other factors include environmental conditions, fire rating, and ease of installation and maintenance.

Q4: What are the industry standards for mechanical hinge design?

A4: There are several industry standards for Mechanical hinge design. For instance, ANSI/ BHMA A156. 8 - 2011 is a standard that covers the performance requirements for various types of hinges. Another standard is the ASTM E 2074, which provides testing for fire protection-rated doorset hinges.
