Dead end clamp

Types of Dead End Clamp

Dead-end clamps are designed to terminate the tension stringing and support conductors, including the drop wire.

Typical dead-end clamps are made from flexible materials, including aluminum, stainless steel, and weather-resistant plastics.

Ideally, they feature sturdy bolts, nuts, washers, lock-up, and are widely used to secure wires to poles, helping maintain adequate tension and prevent wire sagging. Here are common dead-end clamps:

• Aluminum Deadend Clamp

  Aluminum dead-end clamps are lightweight yet highly resilient. These clamps resist corrosion and withstand adverse weather. Apart from being lightweight, they provide ample strength and are unbreakable to support heavy conductors.

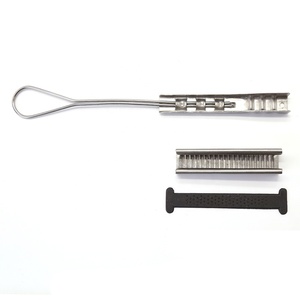

• Stainless Steel Dead End Clamp

  Stainless steel dead-end wire clamps are highly durable and corrosion-resistant. They endure harsh weather and salt, making them suitable for coastal and industrial environments. They offer excellent long-term stability and are ideal for heavy-duty and premium applications.

• PVC insulated Dead End Clamp

  PVC(Polyvinyl Chloride) insulated dead-end clamps have good insulating and standard non-conductive properties. The clamp is wrapped in PVC that reduces the risk of electrical short circuits and provides some cushioning against mechanical shocks.

• Galvanized Steel Dead End Clamp

  This clamp's low price and convenience are one of the factors that contributed to its popularity in various industries. Galvanized steel clamps have a protective zinc layer that provides corrosion resistance, especially in environments with good moisture and outdoor exposure.

• Ceramic insulator dead end clamp

  They provide supreme electrical insulation and are primarily used in high-voltage applications. Their strong resilience to electrical stress makes them ideal for power lines that terminate on insulator brackets.

Function, Feature, and Design of a Dead End Clamp

Function

A dead-end clamp's primary function is to secure electrical wire and rope to support its weight, help maintain tension, and prevent stretching. The clamp holds the wire at its termination point while keeping tension constantly exerted on the wire and preventing it from sagging or losing contact with the system.

Features

Common features and advantages of a dead-end clamp include the following:

• Adjustable nature: The clamp can be easily affixed and adjusted to accommodate various wire diameters and sizes.
• Corrosion-resistant: It is made from galvanized steel and aluminum and is resistant to PVC, stainless steel, and weather-resistant materials that offer superior protection for outdoor use.
• Insulation: PVC and ceramic tension clamps provide electric insulation. This feature is critical when used on power lines to prevent different risks, including short-circuiting and electrical leakage.
• Durability: dead-end clamps are robustly designed to resist mechanical wear, tear, and fatigue.

Design

Most dead-end clamps feature a loop or eye that provide a point of attachment for the tension cable or wire and a gripping surface that secures the electric wire. They are also fitted with a bolted movable jaw and a fixed jaw to facilitate easy clamping and to prevent loosening over time.

Some designs also include tie rods that help splay the jaws apart and ensure the tightening pressure is evenly distributed throughout the assembly. The tie rods transfer the load from one side to the other. Others are furnished with rubber pads inside the eyes to prevent cable wear and provide gripping surfaces.

In addition, there are commonly three common configurations for these cable clamps, including:

• Straight clamp: This clamp is designed to fix the wire perpendicular to the supporting structure. Straight clamps are often used where the wire must be held averaged or uniformly balanced.
• Looping end clamp: Just as the name suggests, the looping deadend clamp is used to create a loop at the wire’s end. This type of clamp is prominent when the wire is wrapped around a pole or hooked onto a support structure.
• Equalizer clamp: This type of clamp is designed to equalize tension between two wires. They are usually deployed in adverse conditions, where variations of tension might be caused by irregular topography or uneven loads.

Commercial value and use cases of a Dead End Clamp

Commercial Value

Deadend cable clamps are pivotal in telecommunication and electrical power industries. They secure conductors to ensure efficiency and promote safety. Due to their strong resilience to corrosion, fatigue, and adverse weather conditions, these clamps are ideal for long-term cable management.

Similarly, these are preferred due to reduced maintenance costs and enhanced operational efficiencies.

One of the significant trending considerations for buyers should be the increase in demand for infrastructure development. This will mean electrical deadend clamps will be required for the supports of new transmission lines and safe distribution networks.

Also, the rise in renewable energy generation, including wind and solar, will create additional demand for these clamps—especially for securing wiring in installation and maintaining system integrity.

That aside, there is consumer interest in sustainable materials. Suppliers that provide dead-end clamps made from recyclable and environmentally friendly materials will increase their commercial appeal.

Use Cases

• Power distribution: Dead-end clamps offer electrical lines secure termination points on poles and towers. They are commonly used in power distribution and help maintain wire tension and prevent sagging or drooping.
• Telecommunication: In telecommunication applications, these clamps secure fiber optic and coaxial cables to support infrastructures like towers and poles. They help take the tension off the cable and prevent a tight pull that will damage it.
• Renewable energy systems: Dead-end clamps are commonly used in solar and wind energy systems to install secure wiring and cables. In these systems, they help ensure optimal performance and electrical safety.
• Railway systems: Clamps are employed on overhead electrification systems on railways to support and terminate the power delivery cables.
• Signage and lighting: Suspended signs, lights, and other fixtures on high ceilings or poles may feature tense wires held by clamps. The clamps here help secure the wire and keep the fixture in a stable position.

How to Choose the Suitable Dead End Clamp

One key thing that wholesale buyers should consider when getting death end clamps is the material. Ensure to select materials that match the application environment and demands. For instance, stainless steel clamps are suitable for marine or industrial environments.

Conversely, aluminum clamps are used in general applications from moderate to great. Galvanized steel clamps are preferred due to their cost in standard outdoor applications.

The clamp's load-bearing requirement is another factor to consider. The clamp selected should be able to sustain the wire or cable's entire maximum load. Using a clamp rated for inferior loads will result in sagging or snapping. On the other hand, employing an overengineered clamp means added costs.

Similarly, always consider a wire stranding. Specially designed clamps for fine-stranded wires usually have a manufacturing standard that accommodates this type of wire. Using a fine-stranded wire on a standard clamp designed for a larger stranding wire will ultimately lead to wire damage.

Electric insulation is another factor that will require attention, especially for high voltage power lines and telecommunication cables. Plastic or ceramic-coated clamps are good insulators and are preferred in this application.

On the other hand, standard black painted galvanised wire clamps lack insulator properties and are preferred in low-voltage applications or grounding wires. Lastly, consider compatibility with existing infrastructure and ease of installation.

Q&A

Q1. Which are the most common materials used to make dead-end clamps?

A1. Dead end clamps are usually constructed of corrosion-resistant materials like stainless steel, aluminum, and galvanized steel. PVC coated clamps are manufactured from galvanized steel to increase their durability for general outdoor applications.

Q2. Which factors are crucial for ensuring that a dead-end clamp functions properly and efficiently?

A2. Correct wire size or diameter, application load, and material compatibility selection are essential in ensuring a dead-end clamp functions efficiently. For instance, a stainless steel cable clamp provides superior long-term security in hostile environments like marine or industrial.

Q3. What role does a dead-end clamp play in the power distribution system?

A3. Dead end clamps provide electrical lines with secure termination points on poles and towers. They maintain wire tension and prevent sagging. In addition, they support conductors and improve system stability and reliability.

Q4. Can dead-end clamps be used in high-voltage applications?

A4. Yes. Dead end clamps are used in high-voltage applications. However, ensure to select a clamp with proper insulation, such as a ceramic or PVC-coated clamp. Proper insulation will offer an additional layer of security against electrical leakage and short-circuiting.

Q5. How often should dead-end clamps be inspected or replaced?

A5. In some cases, the lifespan of dead-end clamps can be over 30 years. This is, of course, depending on the material and environmental conditions. Users must regularly inspect them for signs of wear, corrosion, or mechanical damage and replace them whenever necessary.
