Calt encoder

Types of Calt Encoder

Calt encoders come in various types to cater for different precision applications. They range from linear to angular encoders. Each has unique functions and operations.

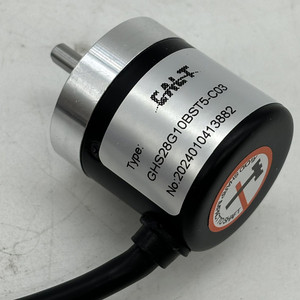

Rotary Calt Encoders

These are used to track rotational position and movement. They feature the following two basic classifications:

• Absolute rotary encoders

  They provide a unique position value on every shaft rotation at the encoder output. Unlike the rest, even when power is off, absolute encoders preserve position data. This is done via a memory system.

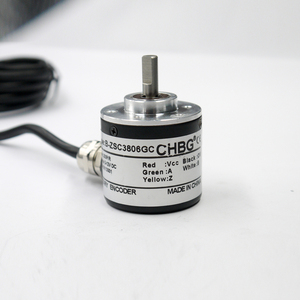

• Incremental rotary encoders

  These encoders produce pulses with each rotation. The pulses are then counted to ascertain the position or movement of a shaft. Unlike absolute encoders, they require resetting upon power up.

Linear Calt Encoders

Just like rotary types, linear encoders have absolute and incremental types. The only difference is that they measure position and movement along a linear path.

• Linear absolute encoders

  Similar to their rotary counterparts, linear absolute encoders furnish precise positional info on a linear pathway. Even with power off, they retain data through internal memory systems.

• Linear incremental encoders

  These encoders also emit pulses as the measuring grid passes a read head. The pulses can be used to calculate distance traveled along a linear path.

Blind Calt Encoders

These encoders can provide measurable gap information. They are mostly used in applications that require precision gap data.

Wire Calt Encoders

These encoders work by having a sensing wire in contact with the moving surface whose distance is being measured. The movement causes the wire to unwind from a spool, giving the distance measurement.

Material & Durability of Calt Encoder

The functionality of any encoder is greatly influenced by the materials used to make it. This also includes how long a device is likely to last from the quality of materials used.

Housing Materials

The majority of encoders have their housing manufactured from high-grade aluminum or stainless steel. While some have them manufactured from tough plastics. All these materials will be chosen based on the type of operation the encoder will be subjected to.

• Aluminum

  Aluminum is a lightweight and easy to machine material. It is also rust-resistant. Because of rust resistance, it can be used in many environments to protect internal components. It is normally found in environments where weight matters but good durability is still required.

• Stainless steel

  This is a heavier material than aluminum, but with better durability properties. Stainless steel is typically used in highly corrosive or critically durable environments. Usually, it will be over-value applications as a protective measure.

• Tough plastics

  They offer a cost-effective and lightweight alternative to metal casing encoders. They are mostly applied in less harsh environments. Commonly they are in less industrial applications where exposure to harsh elements is not a concern.

Shaft Materials

Depending on the application, the shafts of calt encoders can be made from a variety of materials. They include:

• High-grade steel

  These are great for applications that require heavy loads or mechanical stresses. Usually, they are for industrial machinery applications where durability is key.

• Brass

  Commonly found in electronics where non-magnetic properties are needed. This helps to prevent interference in signal transmission.

• Plastics

  Since plastics can be very durable and lightweight, it makes them a great option for low cost calt encoders. Usually, they are applied in consumer electronics or light machinery.

Internals of Calt Encoders

The various internal components embedded in calt encoders are made from several diverse materials. Depending on application requirements, these include:

• Optical disks

  They are commonly made from glass or plastic. They are then coated with a high-precision optical pattern as the encoder disc used for rotary encoders.

• Magnetic components

  These are predominantly found in magnetic encoders. The usual component materials are ferrite or neodymium magnets. The encoder resolution is normally dependent on the size and arrangement of the magnets.

• Resistors

  In a wired encoder, copper or other conductive metal is used to make the sensing wires. The wires offer high electrical conductivity and good durability.

Commercial Value of Calt Encoder

Since encoders are critical in various industrial applications, their commercial value tends to go high. Industries such as manufacturing, robotics, and automation depend on encoders for precise control.

Cost savings from increased accuracy

A calt encoder's improved accuracy, resolution, and precision directly affect machine operation in industrial settings. In heavy manufacturing, even a small miscalculation might lead to catastrophic consequences.

Thus, using a calt encoder compensates for high accuracy operations. This reduces wastage and lowers rework costs. They also promote faster production times, as products are manufactured with higher accuracy rates. This means it takes less time to produce each unit, and thus operational costs are lowered.

Increased reliability and reduced downtime

Calt encoders are commonly designed to ensure maximum durability and reliability. They can perform under extreme heat, dust, or moisture environments. This reliability, when compared to less robust position feedback systems, reduces potential downtimes caused by equipment failure.

Therefore, in critical production environments where downtime causes serious financial repercussions, investing in calt encoders' uninterrupted operation pays off. All transportation or logistic industries have to use calt encoders. They largely depend on seamless tracking and managing fleet systems to avoid losses.

Durability, robustness, and long life

Generally, calt encoders are applied in harsh industrial environments. They have been manufactured to last in terms of weather and industrial conditions adverse effects. A majority of them also come sealed from moisture, dust, and debris.

This not only ensures proper functioning of the encoder, but also eliminates the need for constant maintenance and replacements. Thus, over the lifetime of the encoder, substantial costs and hassle savings are realized.

Enterprises locate long-lasting solutions that pay for themselves over time. Therefore, durable encoders that minimize the need for frequent replacements fit in well within such systems.

Seamless operations and integration

Calt encoders provide accurate real-time feedback to control precision motion systems. Thus, they offer smooth operations and easy integration into any automated process. In high-volume industries, an efficient, quick, and smooth system integration is needed.

That is why directly linking position tracking and operational processes contributes considerably to the bottom line. This minimizes delays in system integration and quickly ramps up production.

Logistics companies, for instance, require precise position monitoring for fleet tracking. Thus, Calt encoders would integrate smoothly into their telematics or fleet management systems to provide real-time positional tracking of their vehicles with respect to time.

Increasing capabilities and precision

Any manufacturing process relies on Sectional Cals. They determine the overall speed and quality of the process. These encoders come in handy where accuracy is crucial to the overall product performance.

Take aerospace, robotics, and CNC machinery firms, for instance. They need the utmost accuracy in their vertical markets as they deal with life-and-death, high-precision, or high-value scenarios. Therefore, investing in highly accurate and precise encoders to avoid mistakes pays off in the long run.

Substantial cost savings or quality improvements will get realized if the end product service is within a few micrometers or millimeters. Thus, no wonder high-end industries are always willing to pay for one small increment in precision.

How To Choose Calt Encoder

When selecting a calt encoder, there are several important factors to consider. They key in applying the right encoder in an engineering system to protect its integrity.

Environmental factors

Dust, moisture, and temperature levels are among the environmental factors to consider when selecting the encoder. Operating conditions like these often determine whether to get a standard or an IP-rated heavy-duty encoder.

How the encoder will be powered

Calt encoders are powered in several ways to perform different tasks. Some have rotating parts, while others have linear parts that translate motion. Having this in mind will help make the right choice.

Signal type and count

The signal type produced, and the pulse count should also be considered when selecting the encoder. They will determine the accuracy and resolution required for the application.

Mounting style and alignment

How the encoder will be mounted in the system is another aspect to consider. It goes a long way in ensuring that the encoder aligns properly with the rotating components in the system for maximum efficacy.

Deciding between absolute and incremental encoders

Incremental encoders are ideal when measuring motion is needed. On the other hand, applications that require position tracking will need absolute encoders.

Considering all these factors will help select the right encoder for any specific application. They will also help boost the system's overall productivity, efficiency, and longevity.

Q&A

What role do encoders play in CNC machines?

They measure the position and movement of the machine's cutting tools and workpiece. This helps improve accuracy and enable operators to perform complex cuts and shapes.

What function does an incremental rotary encoder perform, and how is it different from an absolute rotary encoder?

Unlike absolute encoders which provide a unique position value for every shaft rotation at the encoder output, the incremental rotary encoder generates two phase-shifted square wave signals as its output. Counting these pulses gives the position, and they can be used for measuring motion.

Which hold the power longer between absolute and incremental encoders?

While both have their respective applications, absolute encoders have a higher advantage. They retain their position data even when powered off, while the incremental encoders need resetting once powered on.

How can Calt encoders be protected from excessive dust?

Encoders that have an ingress protection rating of IP65 and above will offer sufficient protection against dust. Just ensure the right IP-rated encoder is selected for a specific environment.

What is the impact of high-temperature exposure on encoders?

Exposing an encoder to excessively high temperatures will degrade its internal components, such as lubricants, optical disks, or magnetic sensors. This will eventually lead to failure.

What is the common error that occurs in Calt encoders?

A common encoder error is the misinterpretation of its position by the device. This mostly happens when the operating conditions strain the encoder, like exposure to extreme temperatures or environments or overloading it mechanically.
