Atribut
600×900Working Table Size(mm)
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
220V/380Vvoltage
1.5Power (kW)
weight (kg):800
warranty:1.5 tahun
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.02
number of axes:3
No. of Spindles:Single
travel (x axis)(mm):600
travel (y axis)(mm):900
repeatability (x/y/z) (mm):0.02

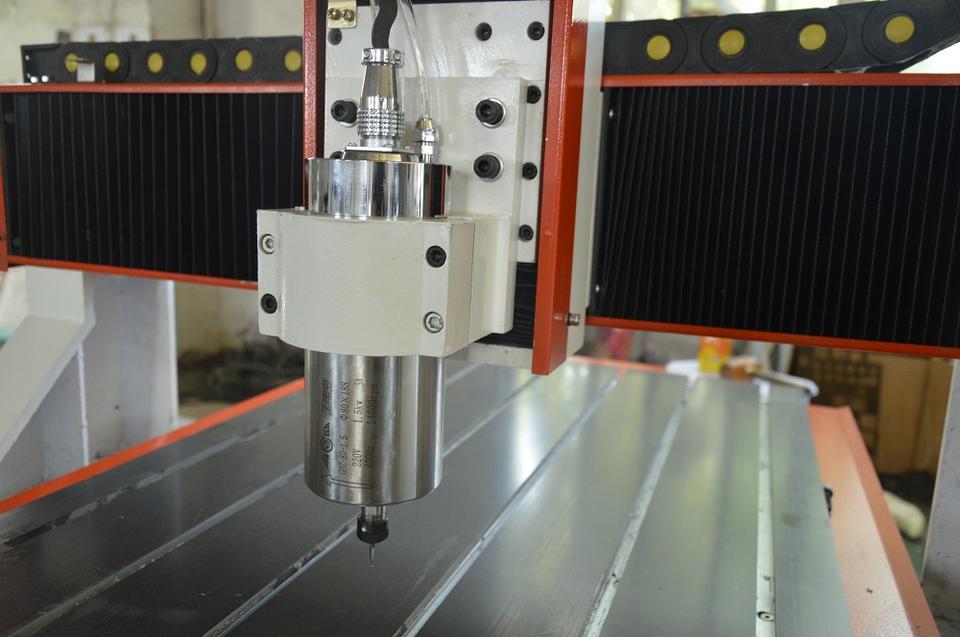

Spindle Motor Power (kw):1.5
brand name:Beta
dimension(l*w*h):1300*2500*2000mm
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Layanan purnajual disediakan:Para teknisi siap untuk menyervis mesin di luar negeri
Item:Mesin Router Cnc 3d

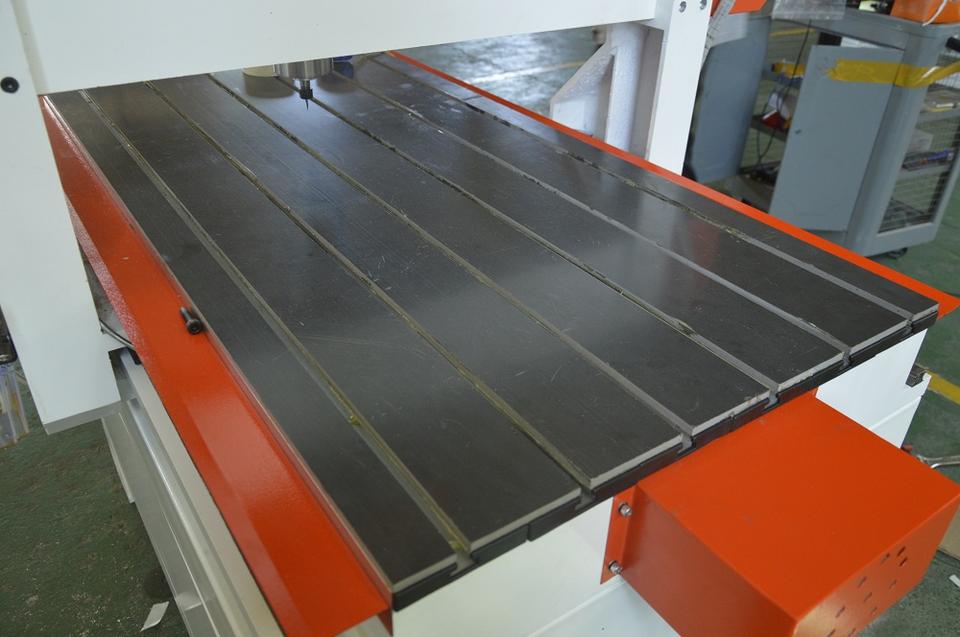

Ukuran meja kerja:600*900mm
Sistem kontrol:Pengontrol DSP
Motor dan driver:Motor Stepper dan driver
Inverter:Delta inverter
Rel panduan:Rel linier persegi HIWIN Taiwan
Sumbu transmisi X:Sekrup bola TBI Taiwan
Daya (W):1,5 kW
Lokasi Showroom:Mesir
Packaging Details:Inner packing: film plastik
Outter packing: kasus kayu lapis
jual Unit:item tunggal
ukuran paket tunggal:65X65X45 cm
tunggal berat kotor:65.000 kg
