Attributes
32I/O Number
Digital InputInterface type
Guangdong, ChinaPlace of Origin

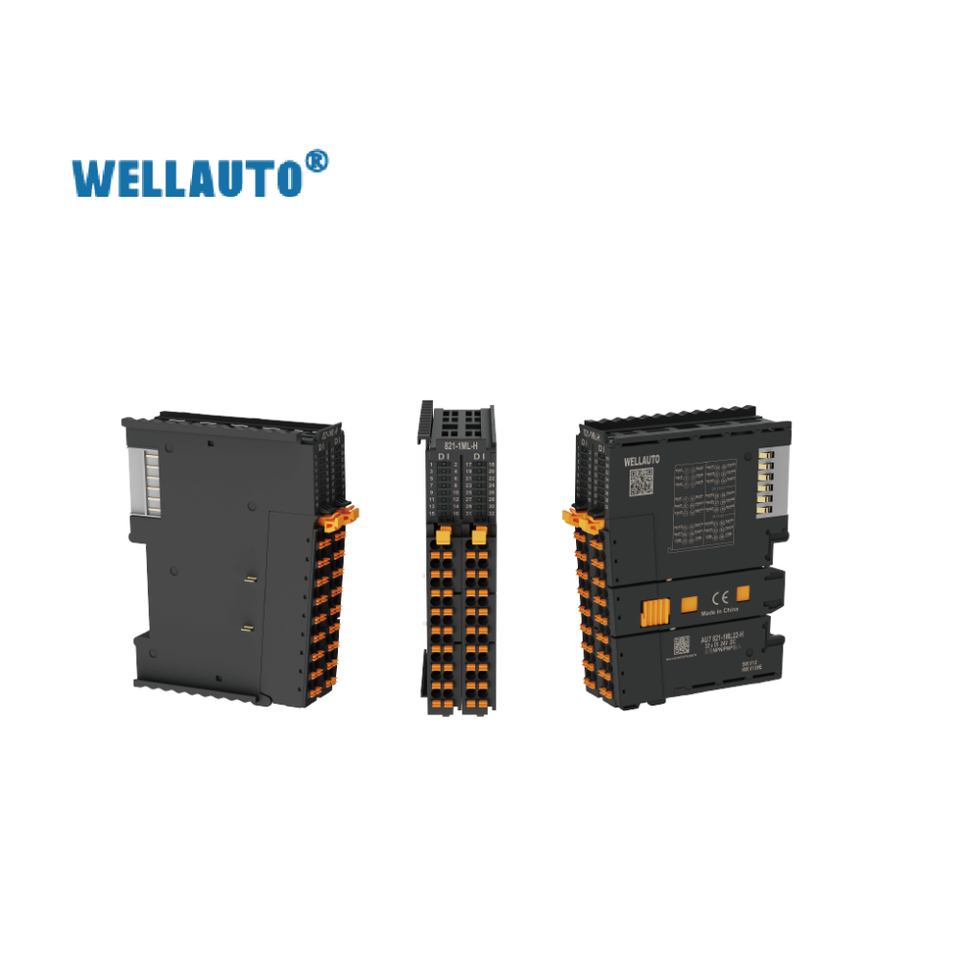

AU7 821-1ML22-HModel Number
WELLAUTOBrand Name
16Input channels
Rated bus input current (fully loaded):60mA
Cable length (shielded):Up to 500m
Cable length (unshielded):Up to 300m
Digital input delay(From 0 to 1, Max):4~6ms (Extended 32 module typical values)
Digital input delay(From 1 to 0, Max):4~6ms (Extended 32 module typical values)
Allowed quiescent current:1mA
Insulation testing voltage:500VDC
Size:12*103*82
Working environment:temperature: -20~60°C, Relative air humidity: 5%~90% (no condensation)
Selling Units:Single item
