Attributes
refer to datasheetMounting Type
ST342 seriesModel Number
SenydBrand Name
Tilt angles measurement/alarmUsage
relay output/ voltage outputOutput

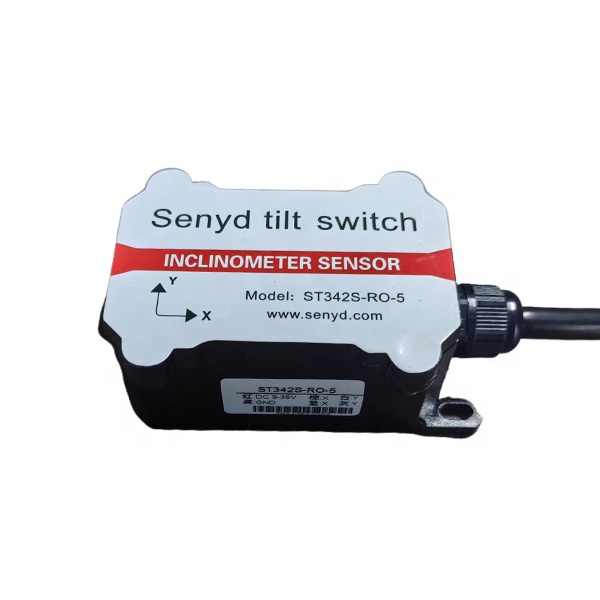

tilt switchDescription
Place of Origin:Shandong, China
Series:ST342S series
Brand:inclination sensor
Amplifier Type:none
Voltage - Supply:9-36vdc
Output Type:relay no/nc,voltage
Current - Supply:<40mA
Operating Temperature:-40℃.....85℃
Resolution (Bits):refer to datasheet
Current - Supply (Max):40mA
Packaging:?
Frequency:100
Current:40mA
Voltage Rating:9-36v
Operating Force:?
Size:Tilt switch
Size / Dimension:70*40*40mm
Measuring Range:±90°
Range:±90°
Accuracy:0.2°

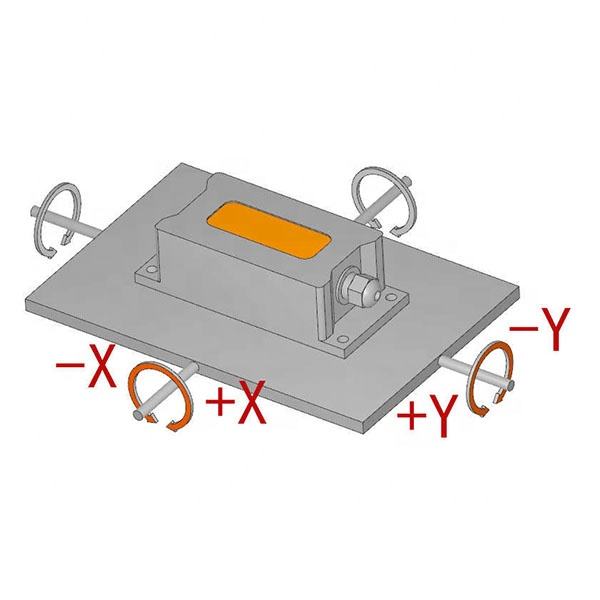

Axis type:dual axis XY/single axis X(Y)
connection:standard 1.5m length cable(customizable)
Output signal:relay output/switch voltage output
Long-term stability:<0.3°
frequency:100HZ
Service life:>35000 hours
weight:110g
Protection class:IP67
Selling Units:Single item
Single package size:10X10X10 cm
Single gross weight:1.000 kg
