Attributes
Development BoardType
Cortex-A17Core Processor
AndroidOperating System

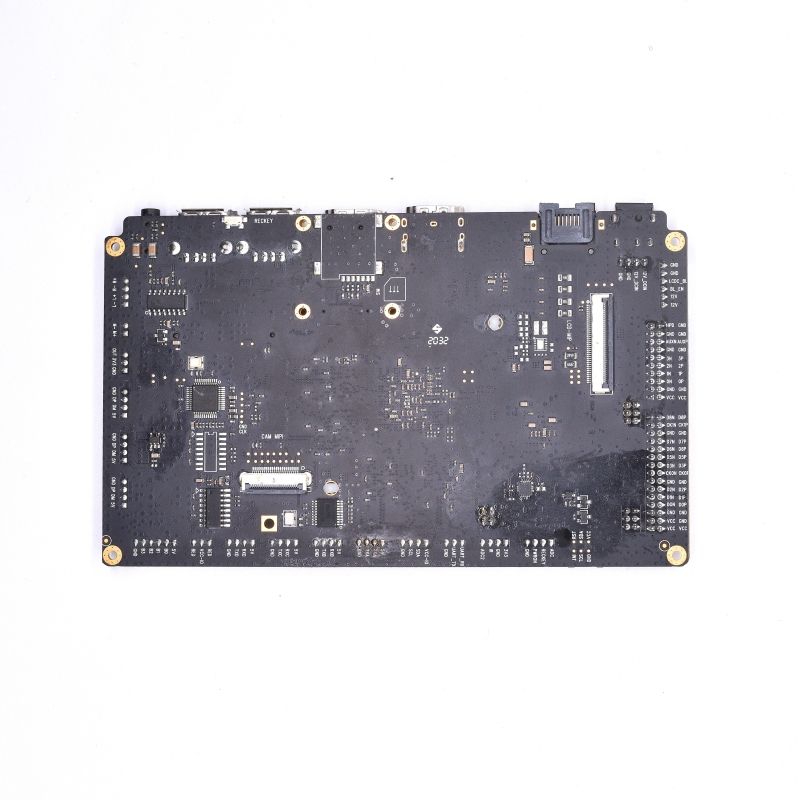

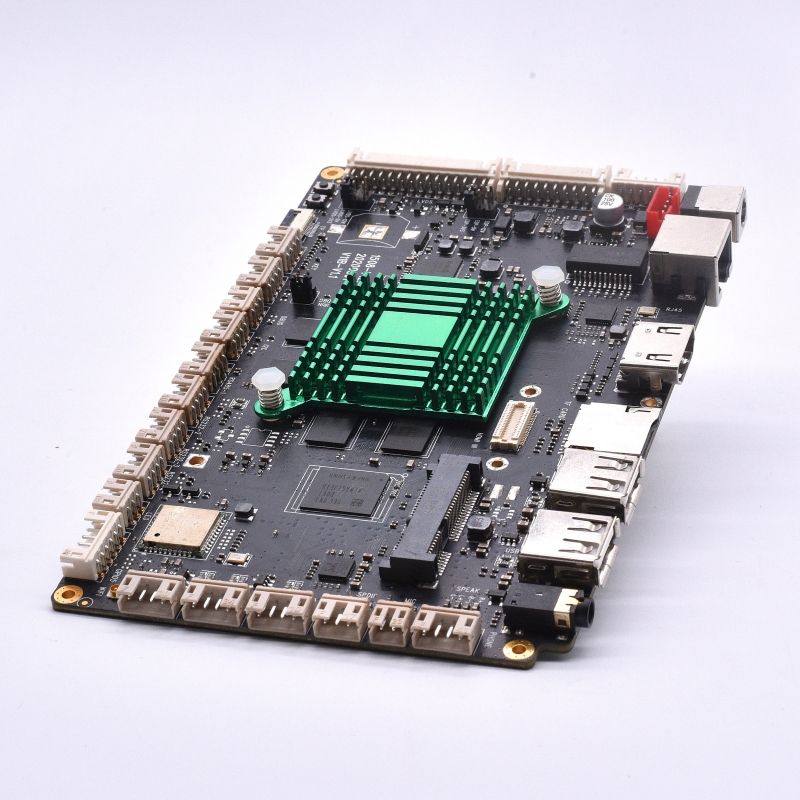

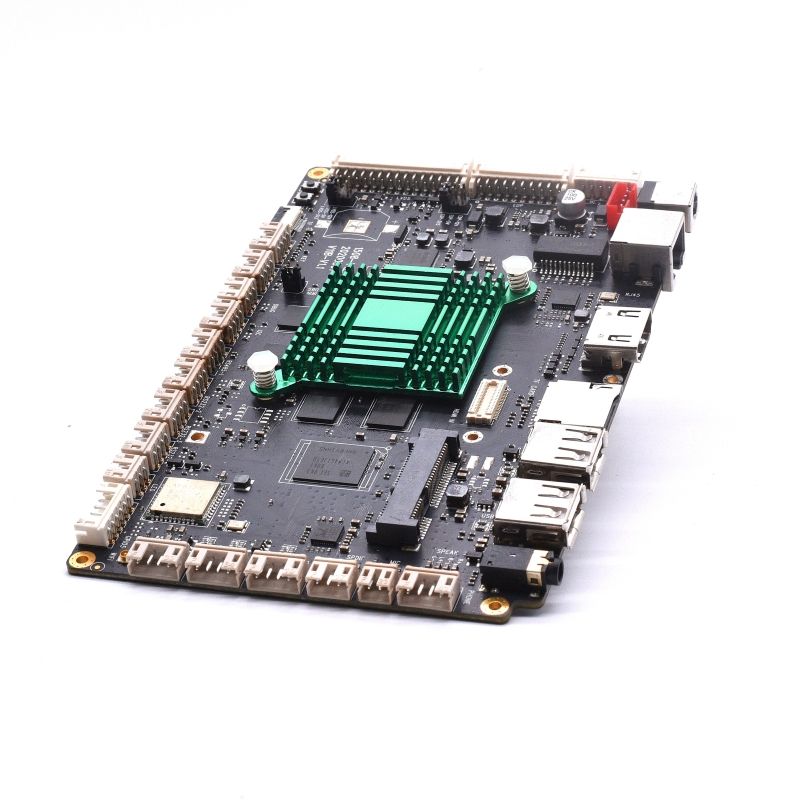

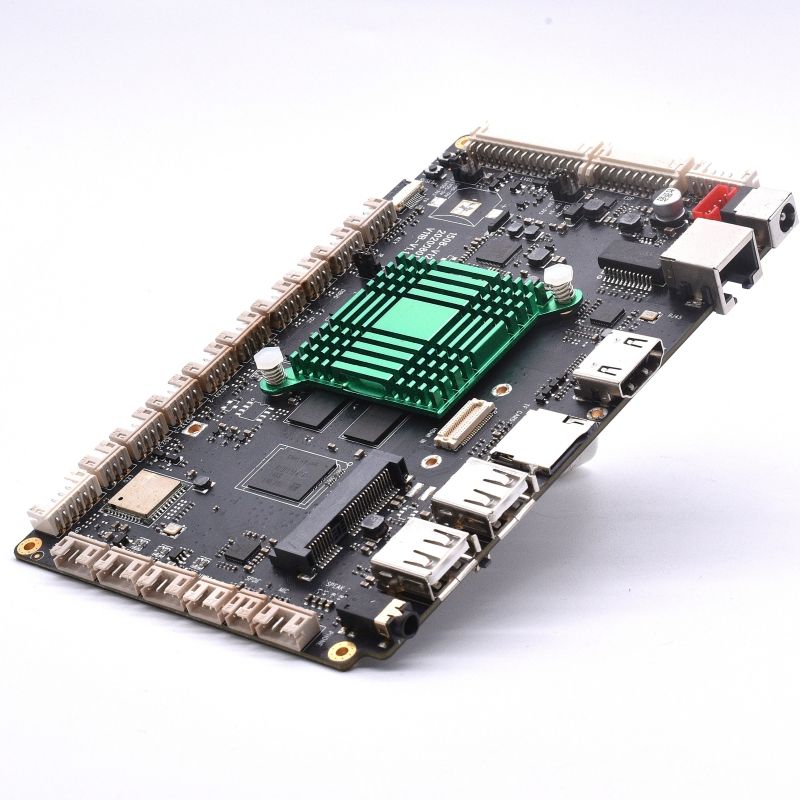

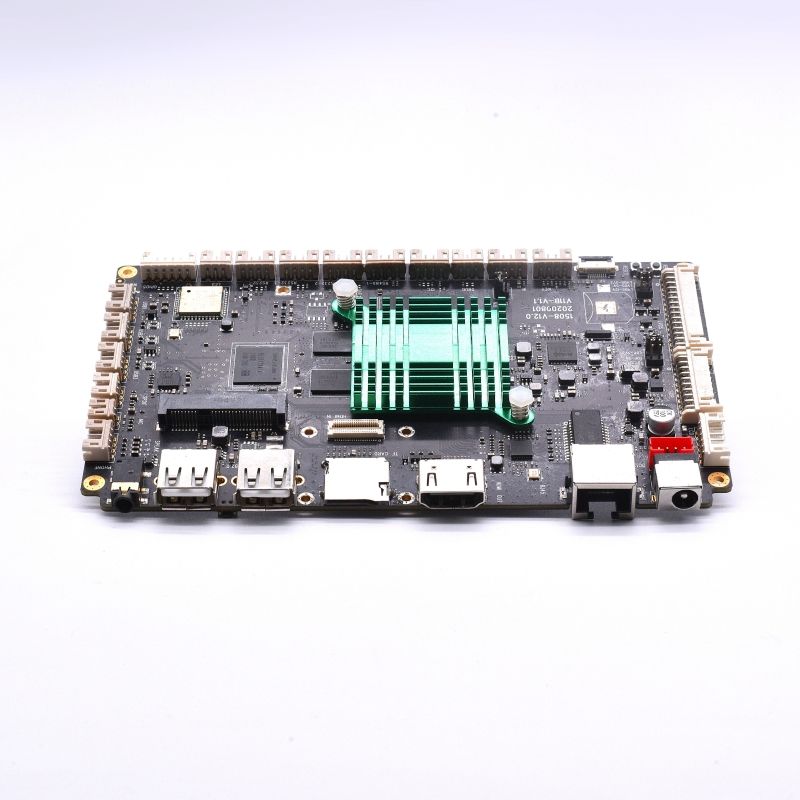

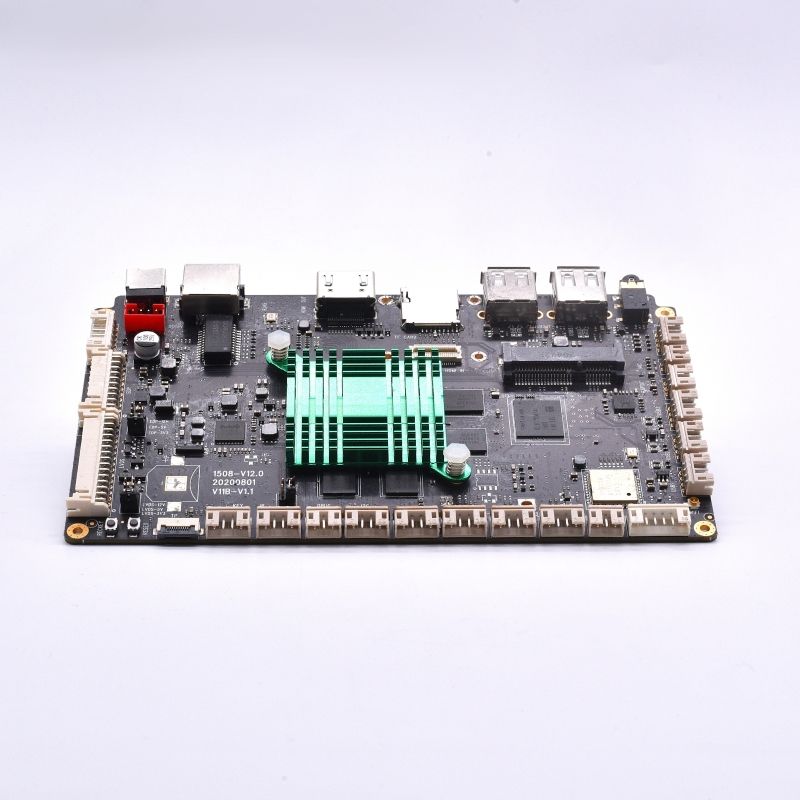

RK3288 Industrial MotherboardDescription
V11CModel Number
Guangdong, ChinaPlace of Origin
Brand Name:VK
Series:V11C
D/C:12V~3A
Function:Video decoding 2K/60FPS, Video encoding1080P@30fp
Embedded:Yes
Utilized IC / Part:Rochchip RK3288
Board Type:Single Board Computers (SBC)
Main Purpose:industrial automation, digital signage, and IoT
Maximum Number Of IC's:4
Mounting Type:Surface Mount
Communication Interface:I2C, USB, HDMI, VGA , mipi, SPI, uart
CPU:Rockchip 3288,four-core 4*Cortex-A17 UP to 1.80GHz
GPU:Mali-T764 GPU;support OpenGL ES 1.1/2.0/3.1, OpenCL,
RAM:DDR3L 2G(optional 4GB DDR3L)
ROM:EMMC 5.1-- 16GB (optional 32GB, 64GB, 128GB)
Operating System:Android 7.1 ; Linux Debian 9
WIFI:WI-FI5 802.11 a/b/g/n/ac 2.4G+5G
Bluetooth:BT 5.2 Mudule
Ethernet:1 way 100M/1000M Adaptive Ethernet;RJ45 x1
MINI_PCIE:Supports 4G communication modules
Display:EDP*1;MIPI_DSI*1;LVDS*1
Selling Units:Single item
Single package size:20X15X10 cm
Single gross weight:1.000 kg
