Attributs
500Poids (KG)
TY-techMarque nom
1 ANGarantie
Guangdong, ChinaPoint d'origine
FourniVidéo sortant d'inspection
FourniMachines Rapport D'essai
Composants de base:PLC, Moteur, Boîte de vitesses, Moteur, Pompe

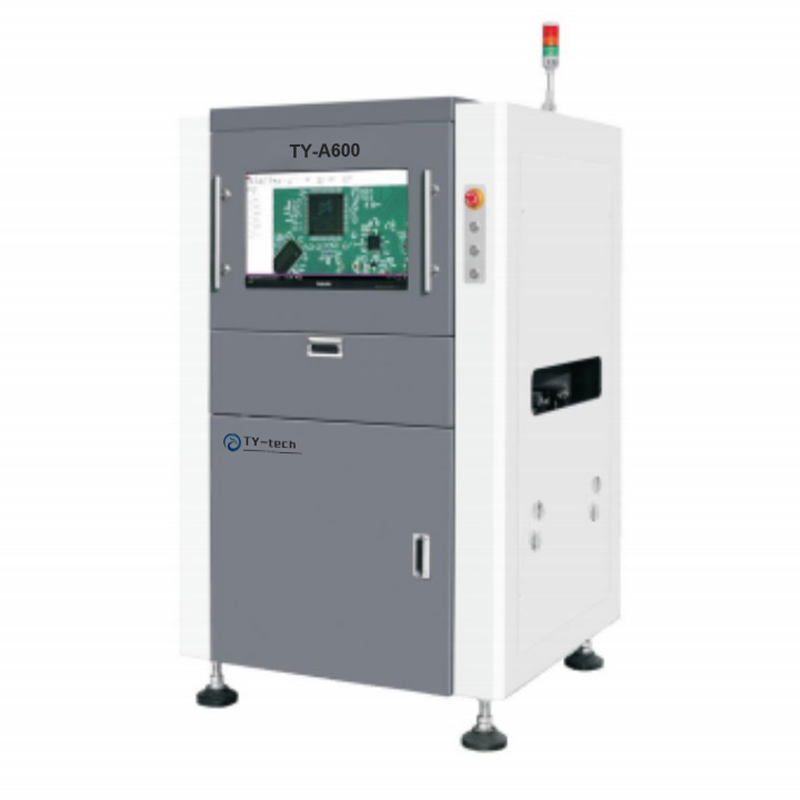

Numéro de Type:A600

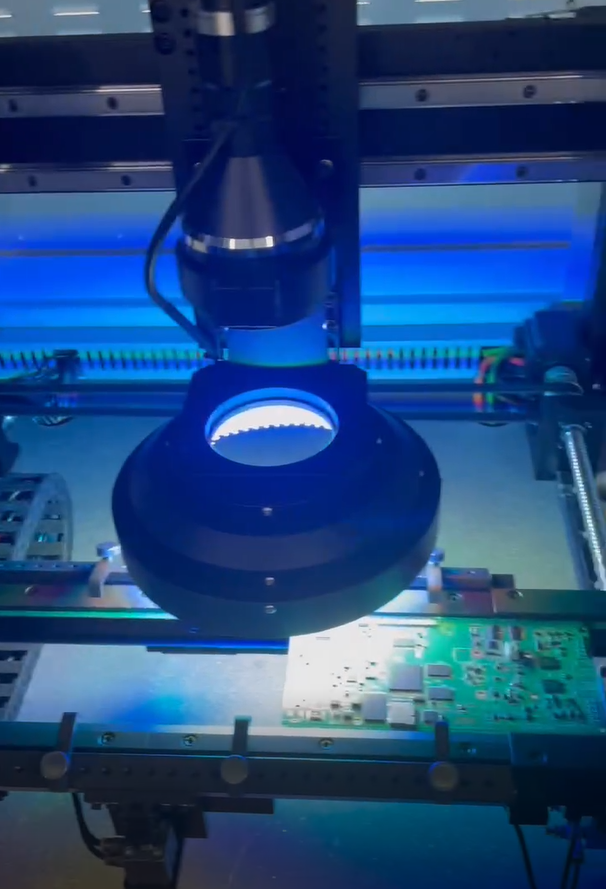

Optical camera:5 million high-speed intelligent digital industrial camera (optional)
Resolution (FOV):Standard 15μm/Pixel (corresponding FOV: 38mm*30mm) 10/15/20μm/Pixel
Optical lens:5M pixel level telecentric lens, depth of field: 8mm-10mm
Light source system:Highly bright RGB coaxial annular multi-angle LED light source
Operating system:Genuine Windows 10
Computer Configuration:i5 CPU, 8G GPU graphics card, 16G memory, 120G solid state drive
Machine power supply:AC 220 volts ±10%, frequency 50/60Hz, rated power 1.2KW
PCB flow direction:Can be set to left to right or right to left by pressing the button
PCB plywood method:PCB plywood method
Z-axis fixation method:1 track is fixed, 2 tracks are automatically adjustable
vente Unités:Article unique
seul paquet taille:90X95X160 cm
unique poids brut:500.000 kg
