Attributes
2100.4000Working Table Size(mm)
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
AC380V/50HZvoltage
32Power (kW)
weight (kg):2800
warranty:1 Year
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.02
number of axes:4
No. of Spindles:ATC
travel (x axis)(mm):2100
travel (y axis)(mm):2800
repeatability (x/y/z) (mm):0.02
Spindle Motor Power (kw):9KW
brand name:M-shine
dimension(l*w*h):4000*2300*2100
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox

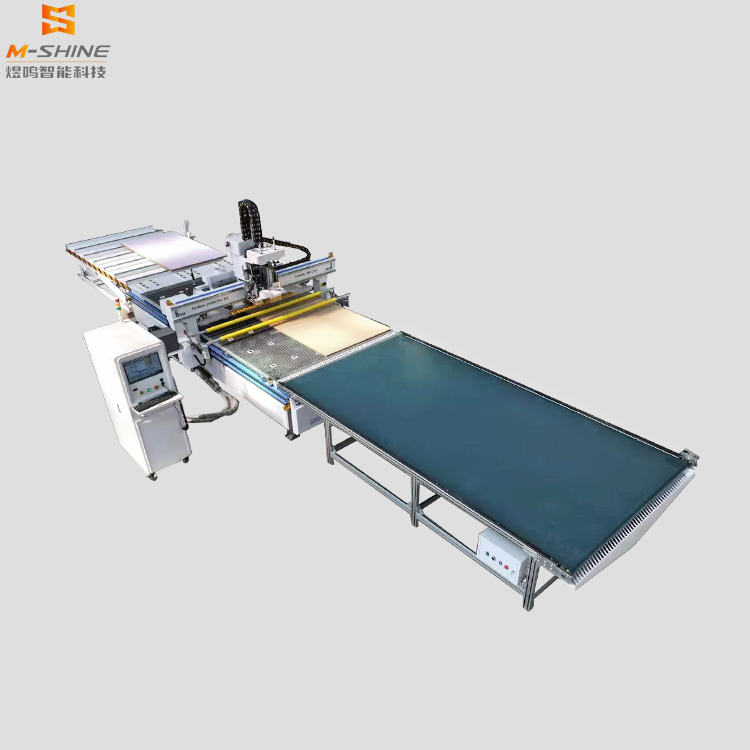

Product name:Nesting Atc CNC Router with Labelling, Loading and Unloading M-shine
Spindle:China 4*5HQD 9KW spindle (speed 0-24000/MIN)
Control system:Taiwan LNC Control System
Track:XYZ Axis 30 Taiwan Hiwin Track
Inverter:China Brand 11KW Fuling inverter
Motor:China Leadshine 1500W pure servo motor
Z-axis screw:Taiwan TBI3210 screw drive
Work table:7.5KW water cooling pumpdsor aption/
Bed structure:8MM quenched sandblasted heavy duty bed
Tool magazine:12 tool change linear magazine (supports 8-16 customization)
Selling Units:Single item
Single package size:4200X2250X2200 cm
Single gross weight:2600.000 kg
