Atribut
Instalasi tetapMounting Type
2025Manufacturing Date Code

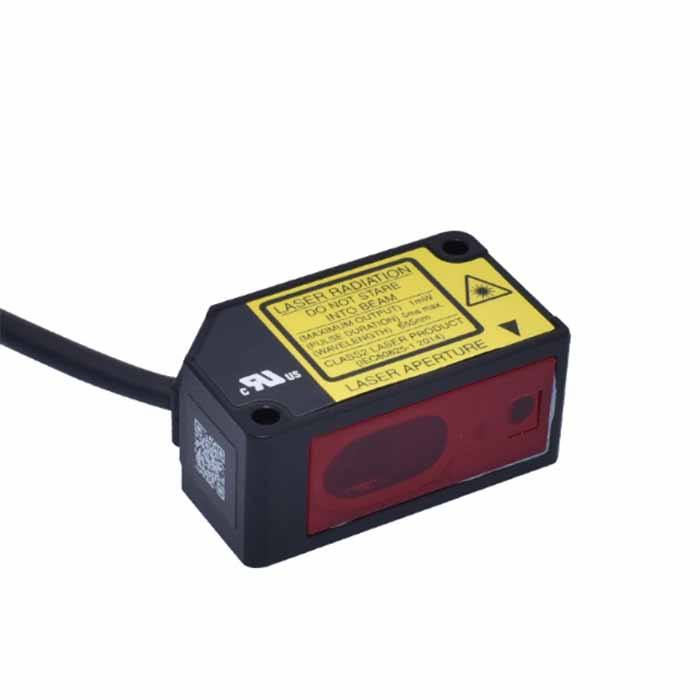

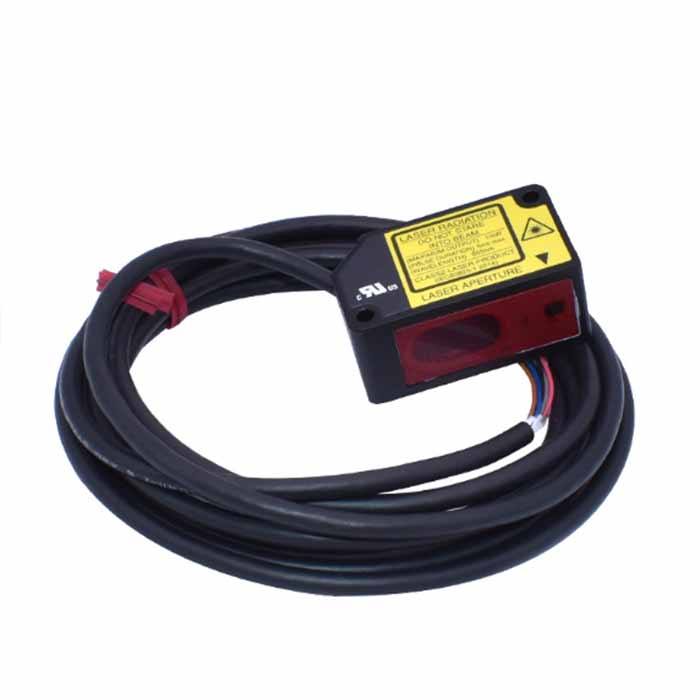

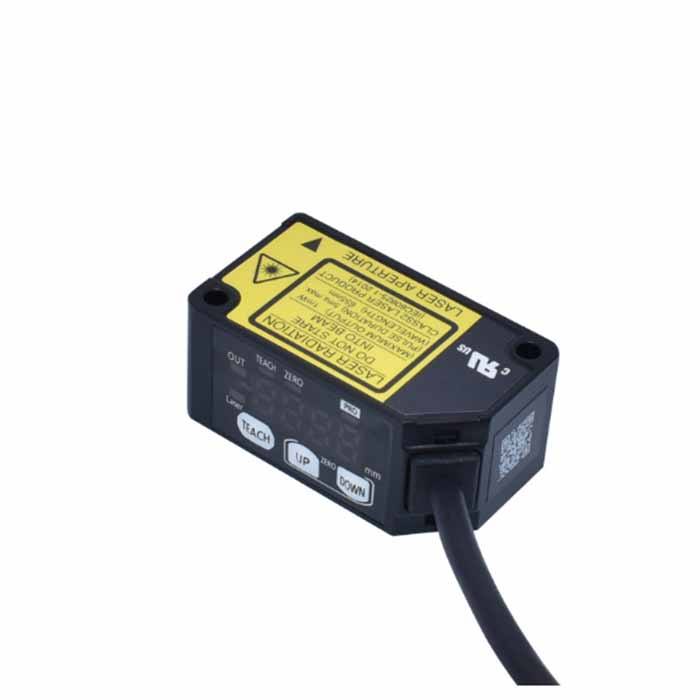

HG-C1100Model Number
Pana sonicBrand Name
Deteksi objekUsage
12 ~ 24V DC ± 10%Voltage - Supply
Description:Pengukuran Data
Type:Linear Displacement Sensor
Place of Origin:Jiangsu, China
Series:HG-C
Theory:Optoelektronik
Output:Sensor analog, NPN
Linearity:±0.1%
Communication Interface:Cable
Rotation Angle - Electrical, Mechanical:180 °
Catu daya voltase:12 ~ 24V DC ± 10%
Penarikan:P-P10 % di bawah
Suhu pengoperasian:: -10 ~ + 45 ℃ (perhatikan bukan kondensasi, pembekuan)
Penyimpanan:-20 ~ + 60 ℃
Tipe:Sensor posisi
Arus:Di bawah 40mA (24V DC), di bawah 60mA (12V DC)
Tekstur:(Body housing: aluminium die-cast rumahan depan: akrilik)
Berat:35g
Model:HG-C1100
Output:Sensor analog, NPN
jual Unit:item tunggal
ukuran paket tunggal:1X1X1 cm
tunggal berat kotor:0.800 kg
