Attributes
on the shaftMounting Type
20250630Manufacturing Date Code
PCBModel Number
LCBrand Name
robotics, motion control, automation systemsUsage
*Actuator Type

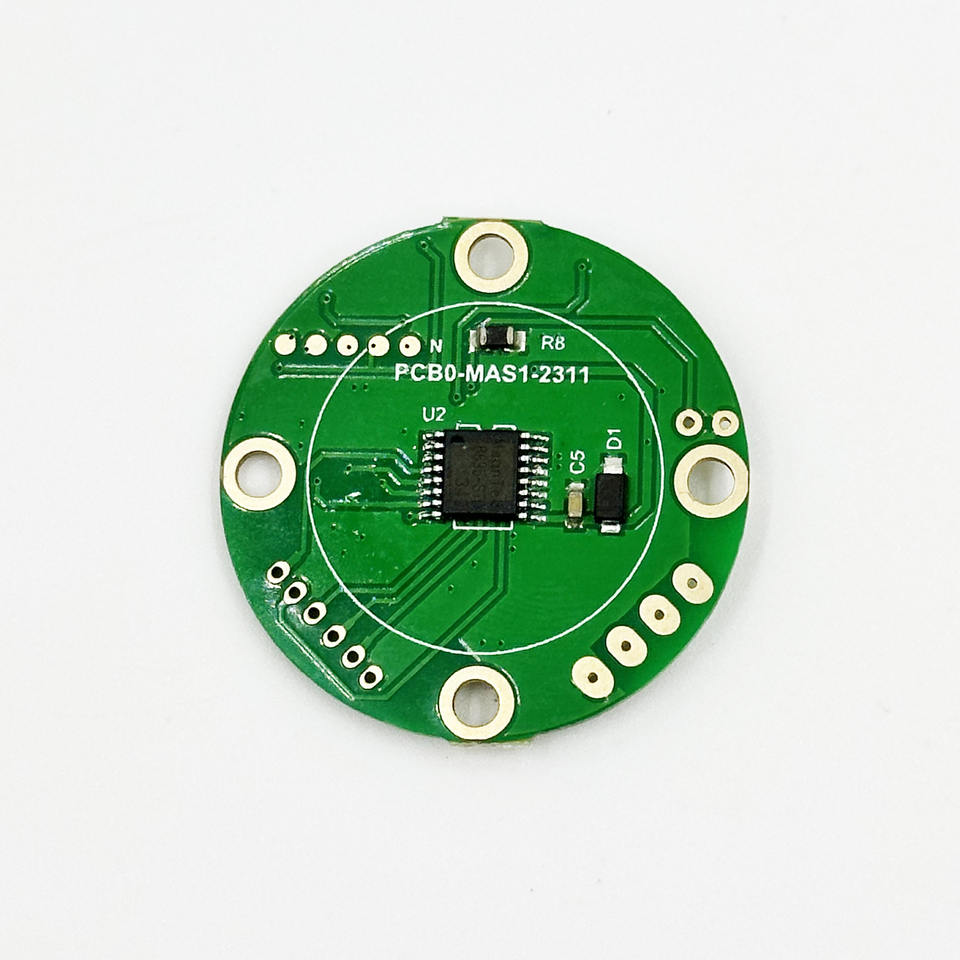

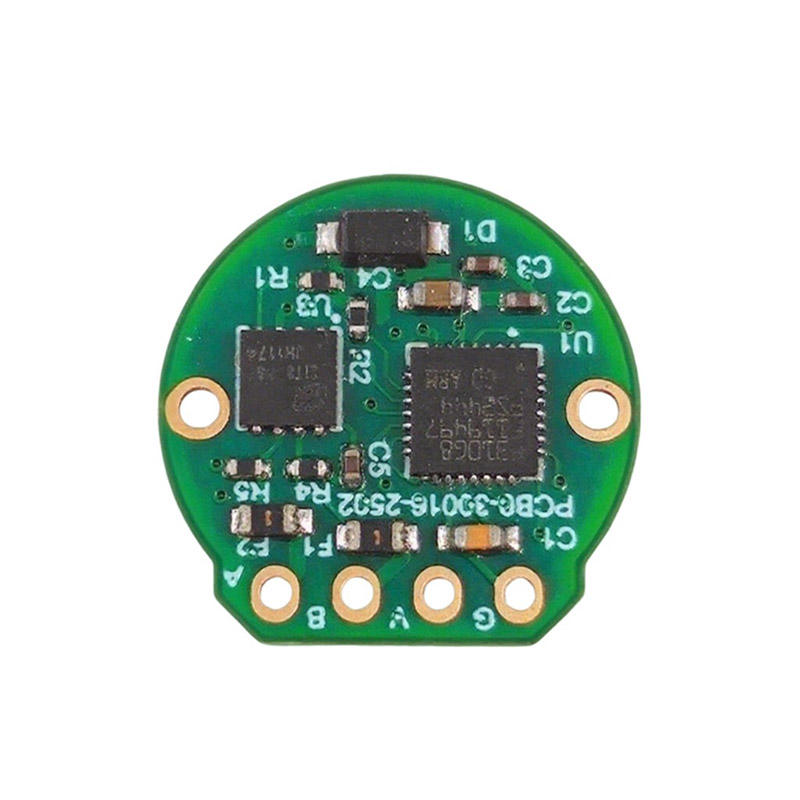

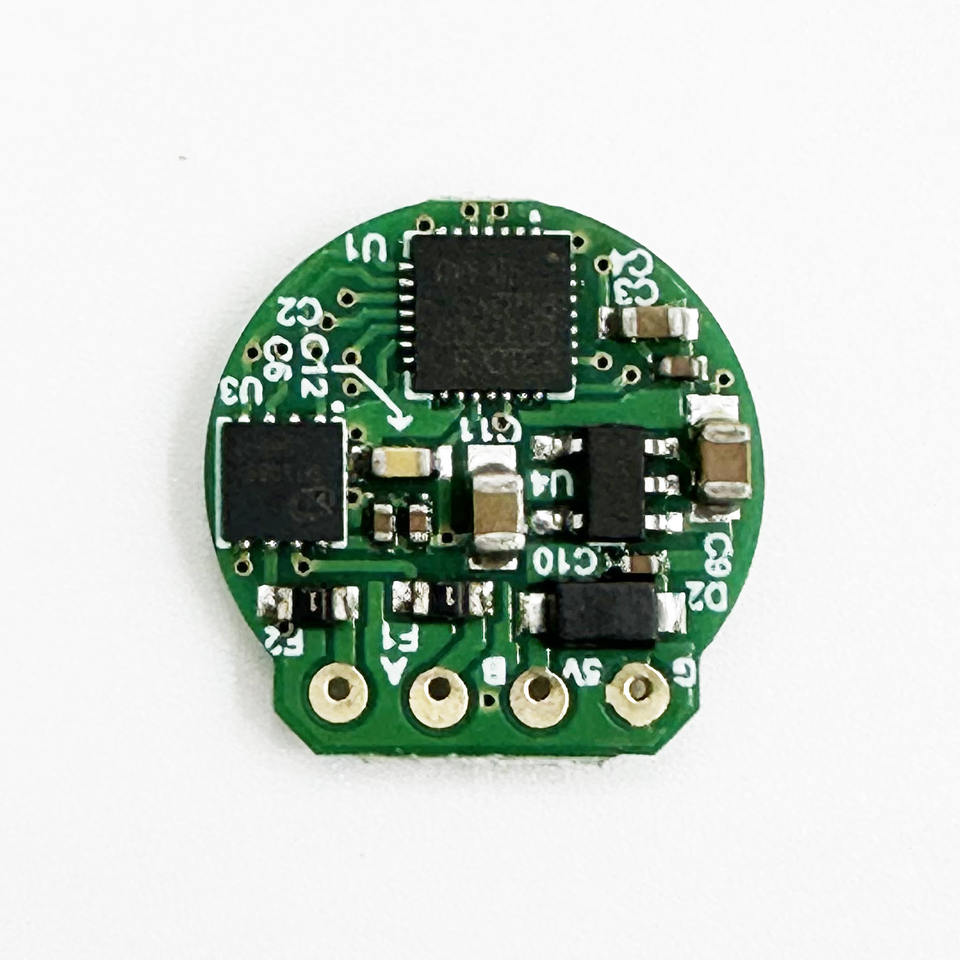

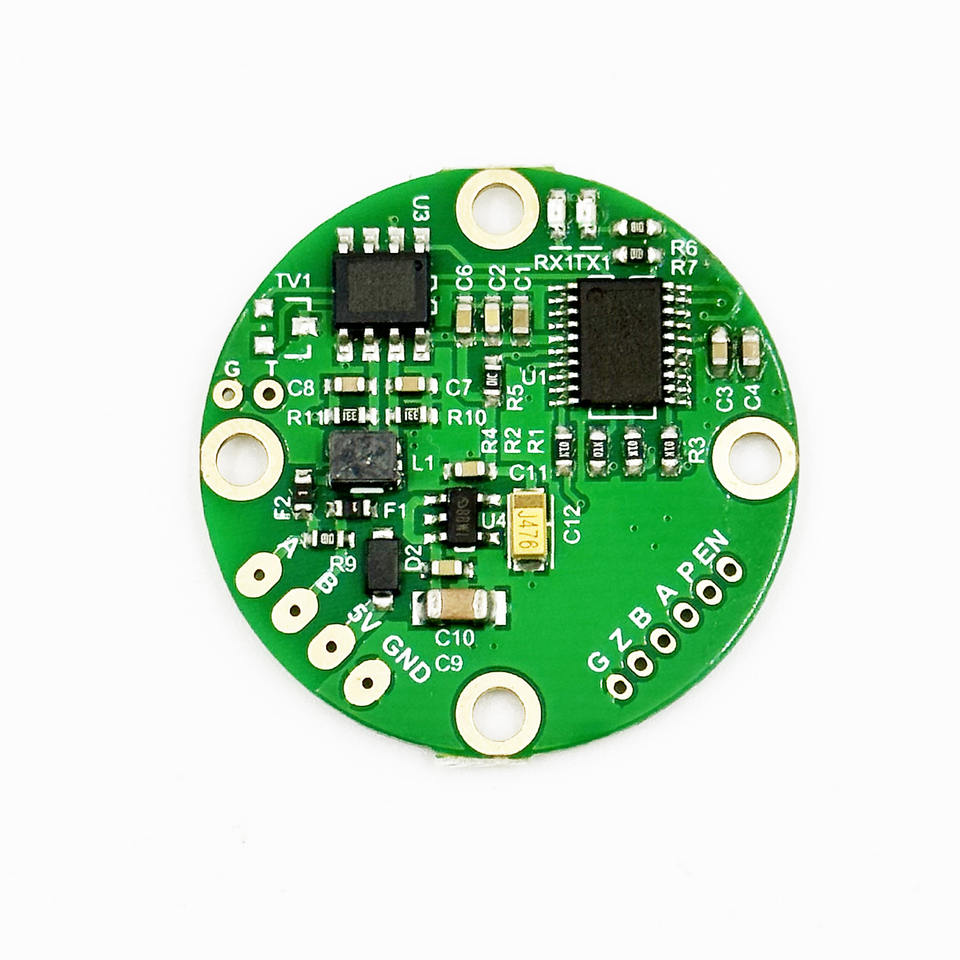

Description:12/14/21 Bit Absolute Magnetic Encoder
Type:Magnetic Encoder
Place of Origin:Guangdong, China
Series:Encoder
Features:21 Bit Absolute Modbus Tamagawa Encoder
Theory:Modbus Tamagawa Encoder RS485
Output:axle
Description:Magnetism Encoder 21Bit Absolute
Built in Switch:No
Voltage - Supply:DC3.3-5V/5-30V
Termination Style:*
Orientation:customized

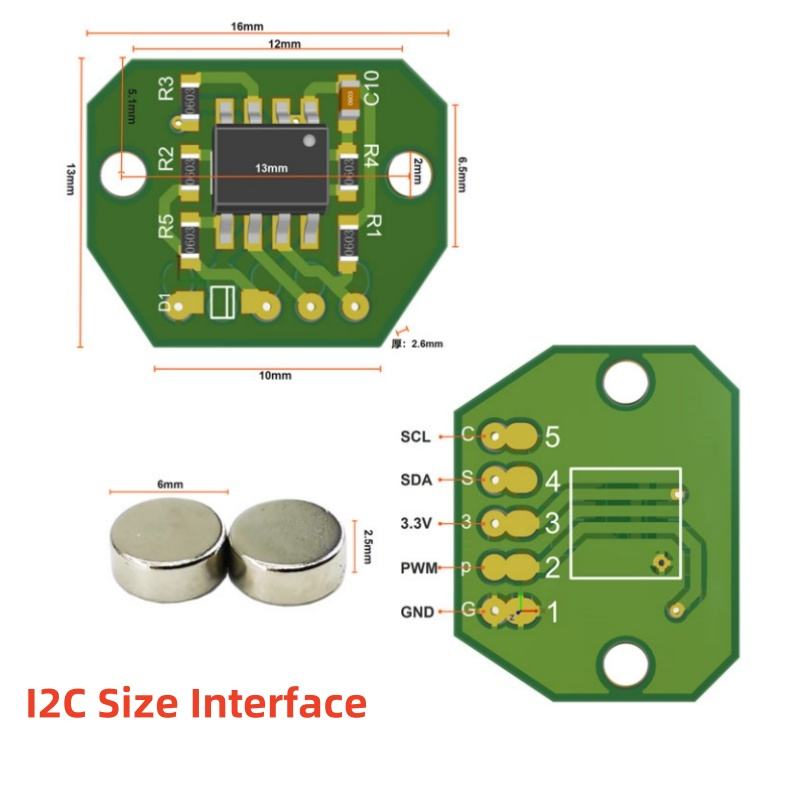

Communication Interface:RS-485/I²C +3 Wire Mode/SSI
Rotational Life (cycles Min):Countless times

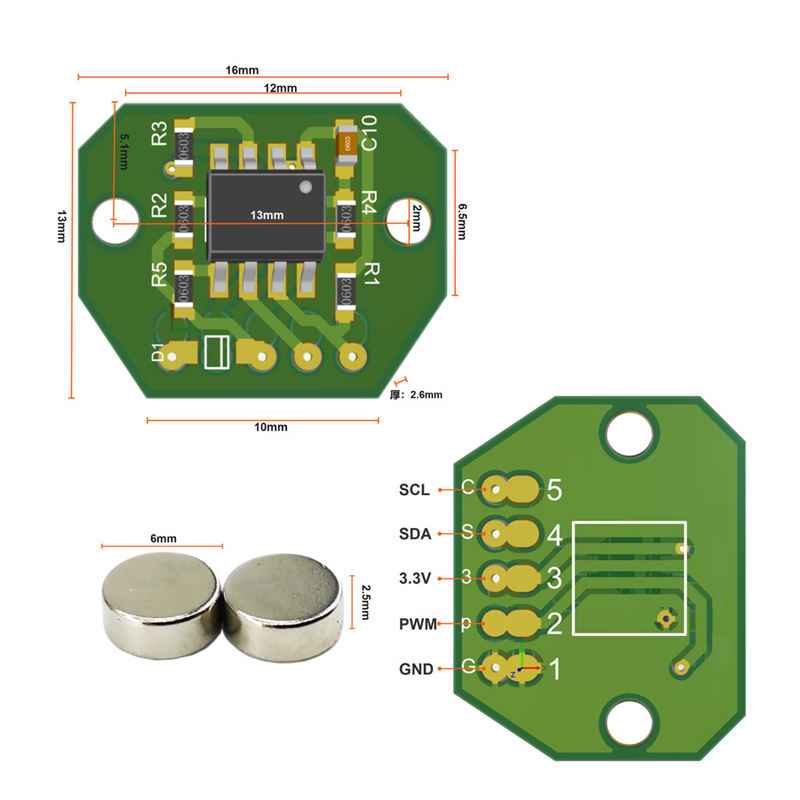

Diameter:15mm,38mm
Resolution:12Bit/14Bit/21Bit
voltage:3.3-5V/5-30V DC
Chip working current:22mA
Allowed speed:120000RPM
Protocol:Tamagawa or Modbus or 12C or SSI
Absolute accuracy:±0.07°/±0.5°
Measurement range:0-360°
Protection grade:IP56
Working temperature:-40 ℃ to+125 °C
Selling Units:Single item
Single package size:15X14X7 cm
Single gross weight:0.080 kg
