Atribut
1300mm * 2500mm * 200mmWorking Table Size(mm)
CNC Routermachine type
CNCcnc or not
Shandong,Chinaplace of origin
380/220Vvoltage
3.2Power (kW)
weight (kg):900
warranty:1 Year
range of spindle speed(r.p.m):6000 - 24000 rpm
positioning accuracy (mm):0.01
number of axes:3
No. of Spindles:Single
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):3.2
brand name:Puliweite
dimension(l*w*h):2100mm * 3100mm * 1700mm
key selling points:Presisi tinggi
machinery test report:Provided
video outgoing-inspection:Provided
core components:"Bantalan pompa Motor roda gigi PLC bejana tekanan

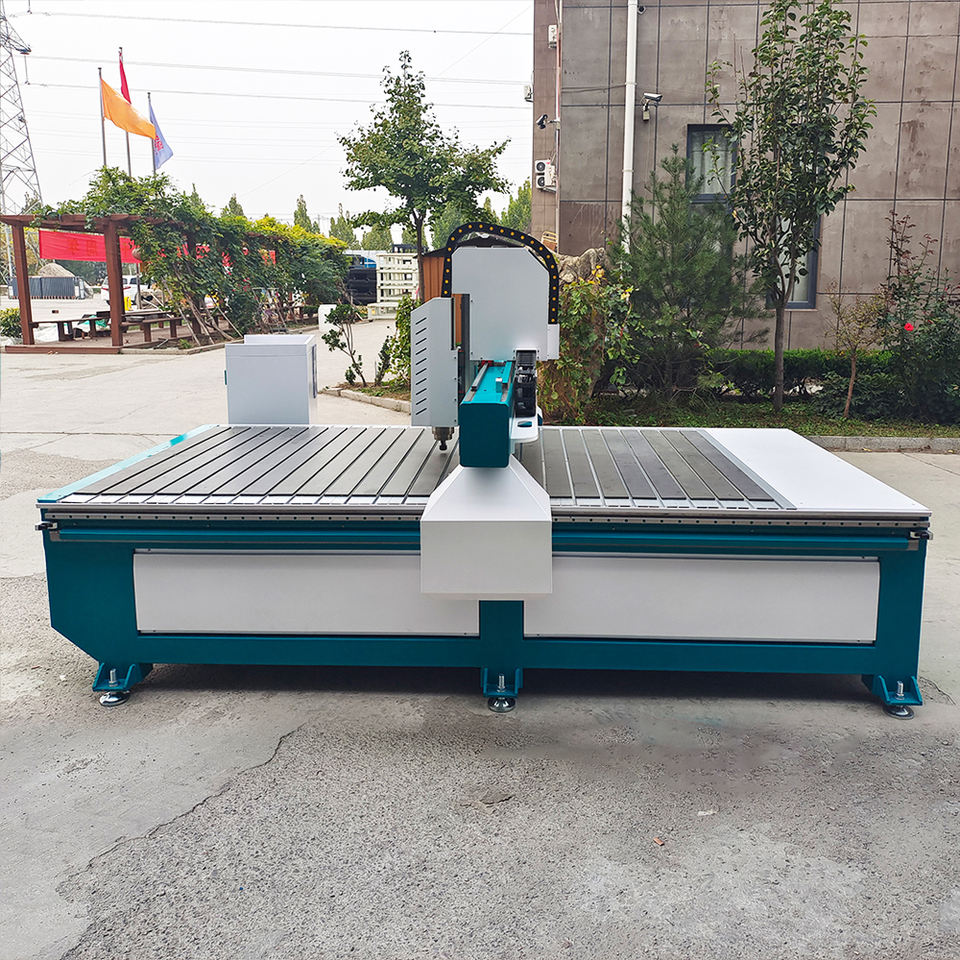

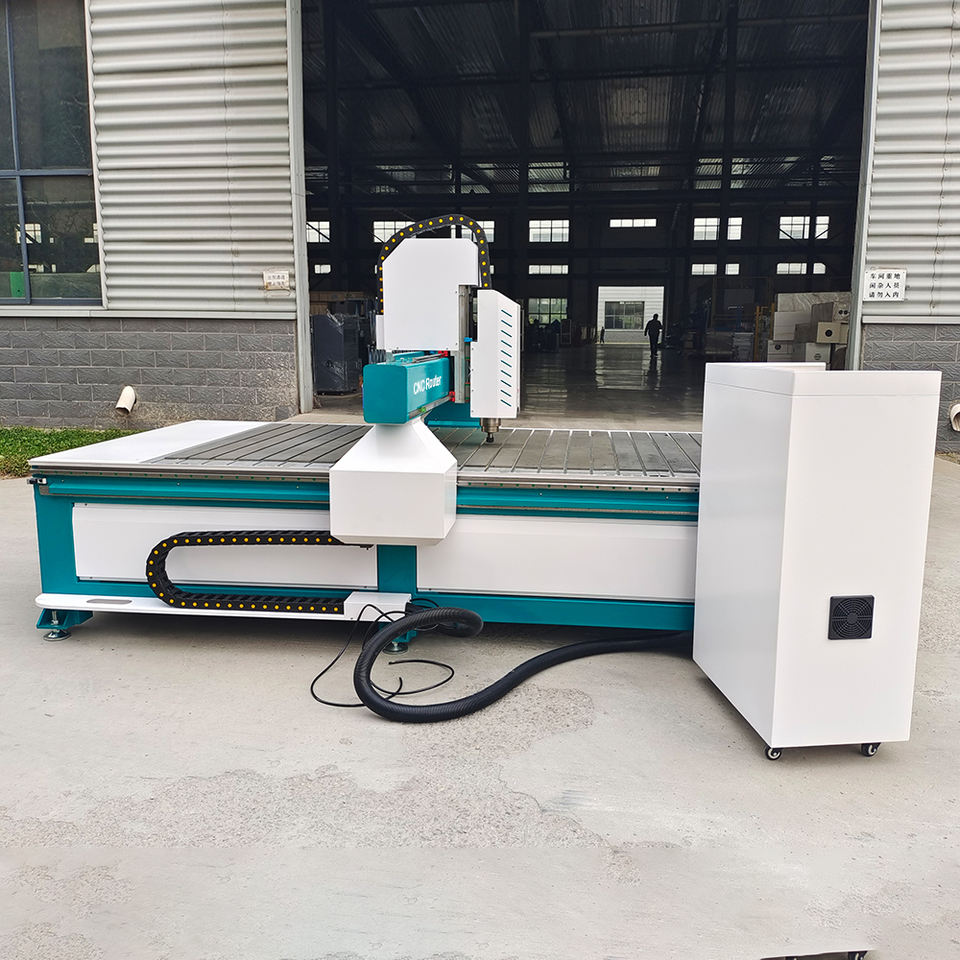

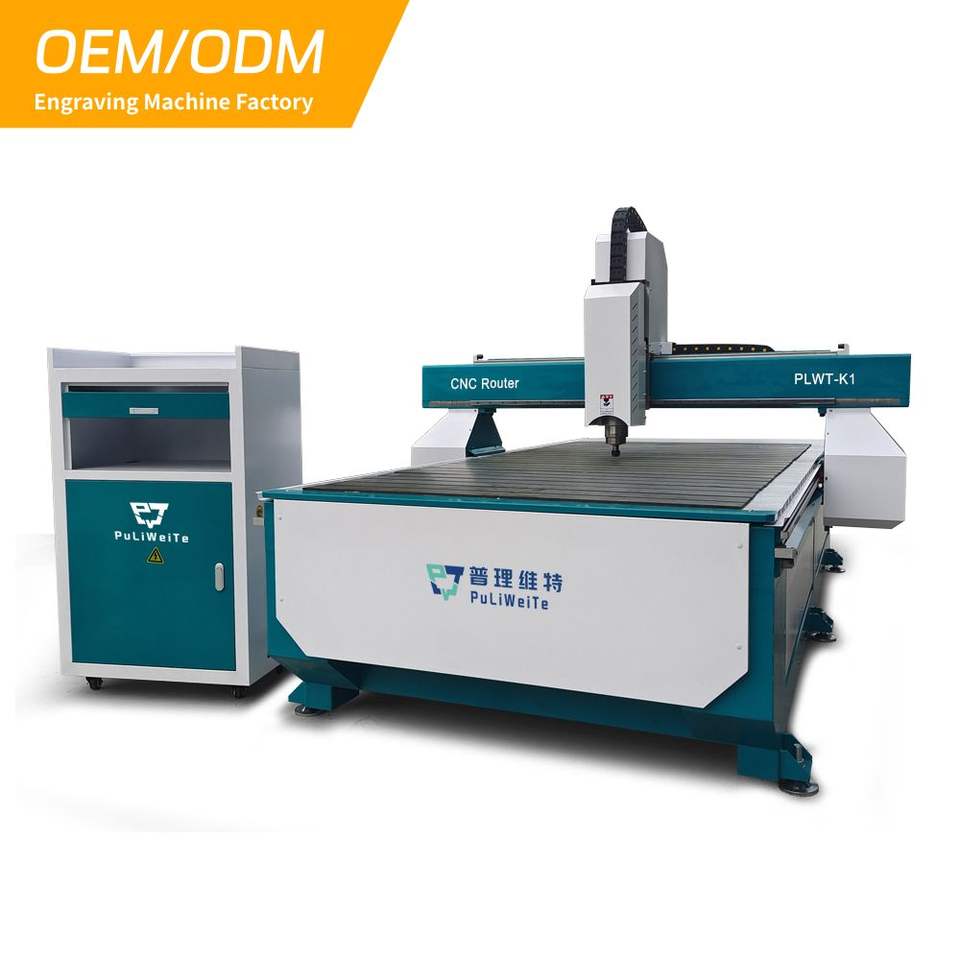

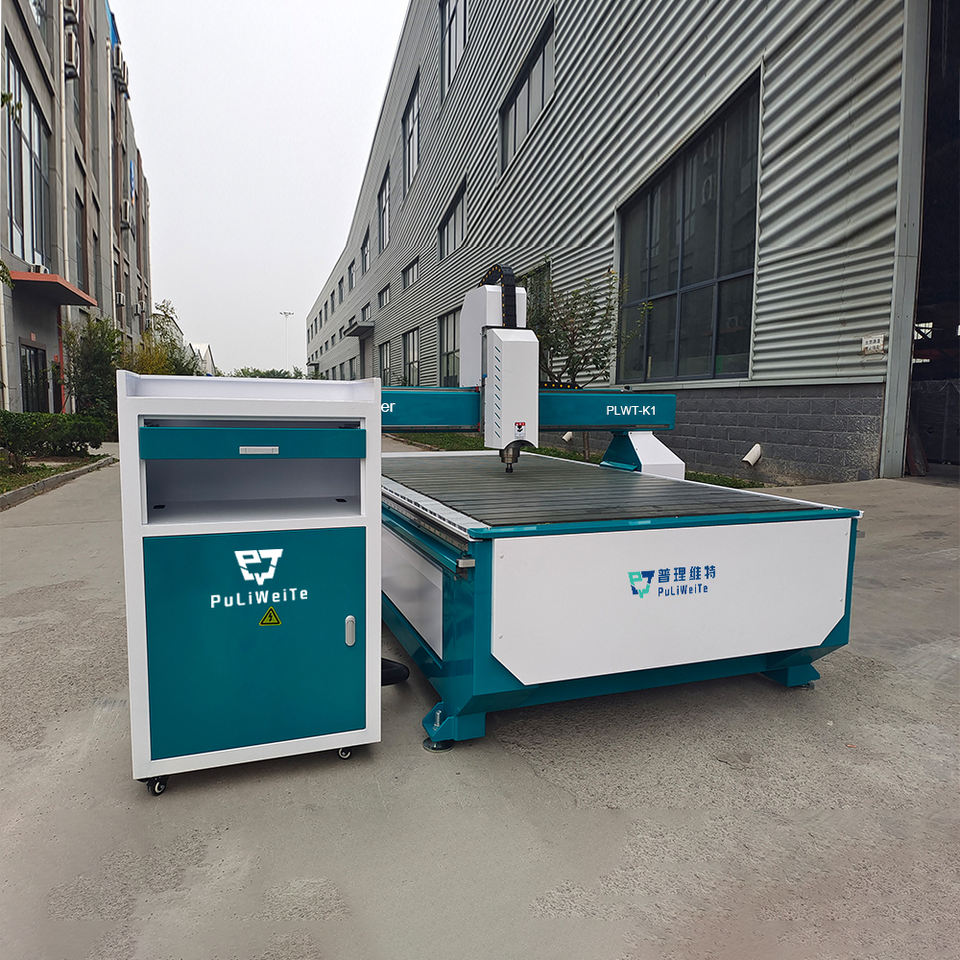

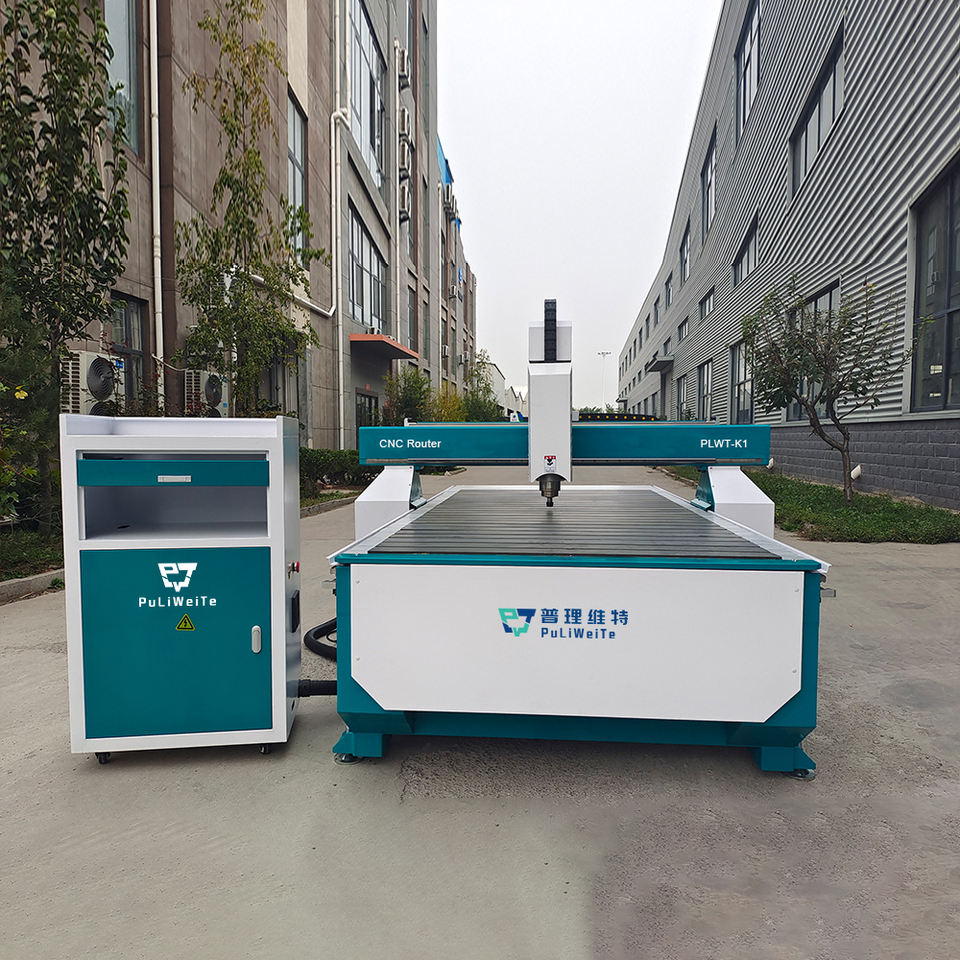

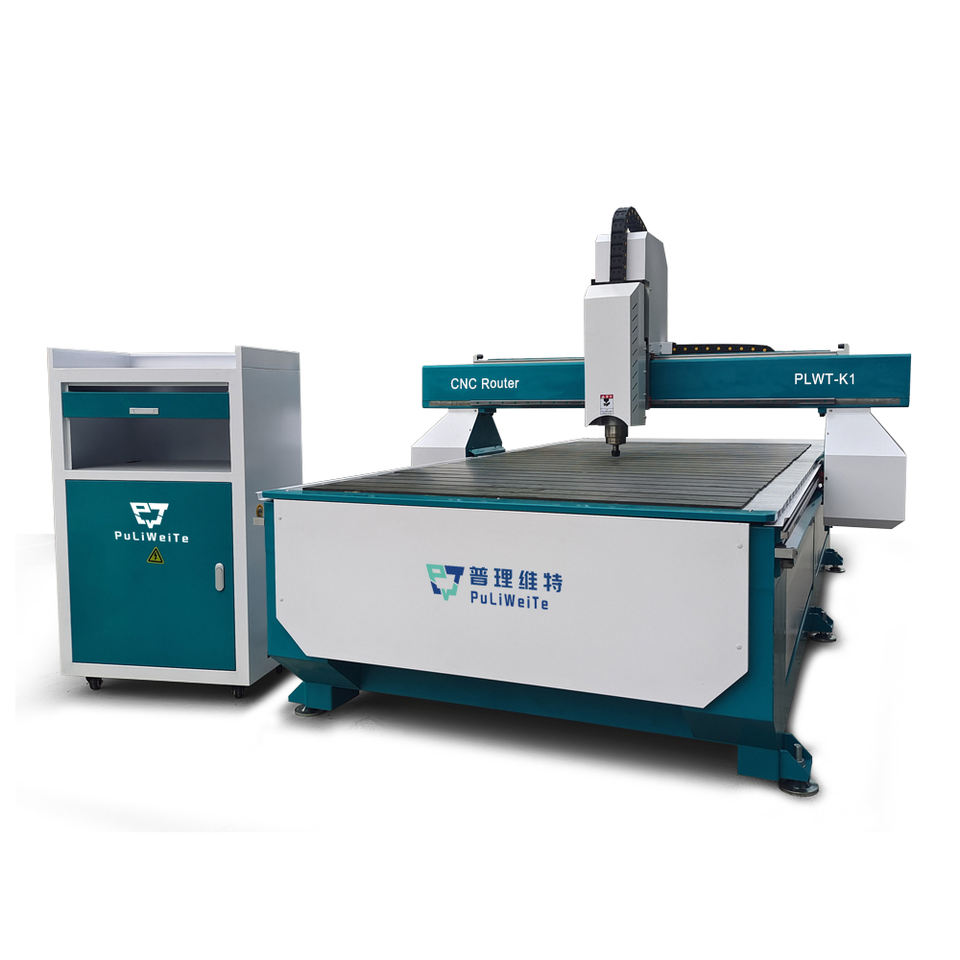

Nama produk:PLWT-K1
Aplikasi:Ukiran dan pemotong: akrilik, PVC, papan kayu, dll.
Layanan purnajual disediakan:Dukungan Online
Poros:Jester berpendingin air 2,2 KW
Sistem kontrol:Nc Studio 5.449
Motor:Motor besar 450
Meja:Lembaran aluminium tebal
Drive:Drive 2D68
Mode transmisi:20 # rel persegi
Garansi komponen inti:1.5 tahun
jual Unit:item tunggal
ukuran paket tunggal:325X215X180 cm
tunggal berat kotor:1100.000 kg
