Attributes
PCB & busbarMounting Type
HS2V H00Model Number
CHIPSENSEBrand Name
Battery Management Wind energy inverterUsage

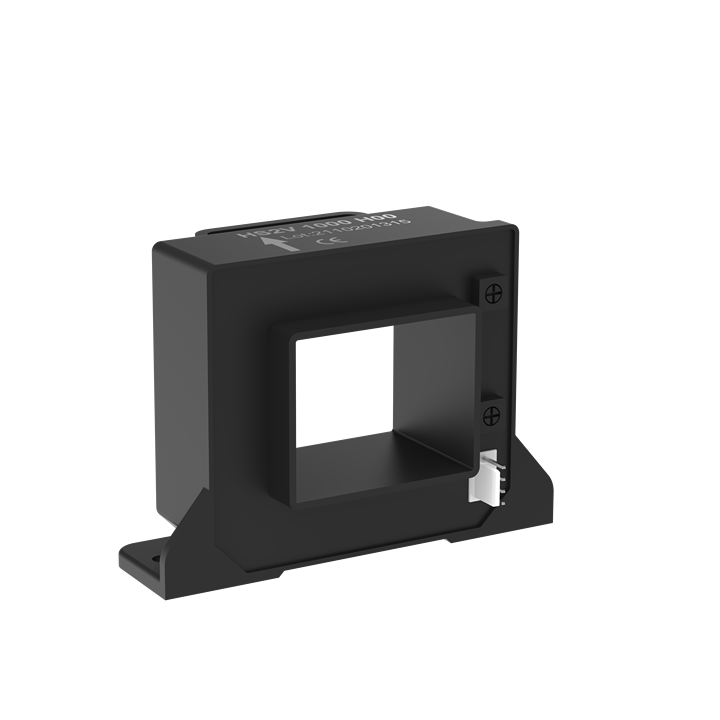

Open loop current sensor, Hall Effect technologyDescription
Hall Effect Current SensorType
Place of Origin:Guangdong, China
Series:HS2V H00
Features:current sensor
Theory:Hall effect
Output:voltage
Description:current sensor
Accuracy:±1
Voltage - Supply:±15V
Linearity:±1
Ambient operating temperature:-40℃~105℃
Ambient storage temperature:-40℃~105℃
Mass:280g
Primary nominal rms current:±200~±1500A
Rms voltage for AC insulation@50Hz,1min:4.9kV
Supply voltage:±15V
Linearity error:±1% of /PN
Accuracy @/PN:±1% of /PN
Frequency bandwidth(-3dB):100kHz
Product name:High Quality Hall effect Current sensor
Selling Units:Single item
