certified
Attributes
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
380 V, 110 V, 200 Vvoltage
2700weight (kg)
3 yearswarranty
range of spindle speed(r.p.m):0 - 24000
positioning accuracy (mm):0.01
number of axes:4
No. of Spindles:ATC
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):9
brand name:CATEK CNC
dimension(l*w*h):3950*2750*2200mm
key selling points:Automatic
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor, PLC
Drive mode:1.5KW high power bus absolute servo motor drive (Z axis brake motor)

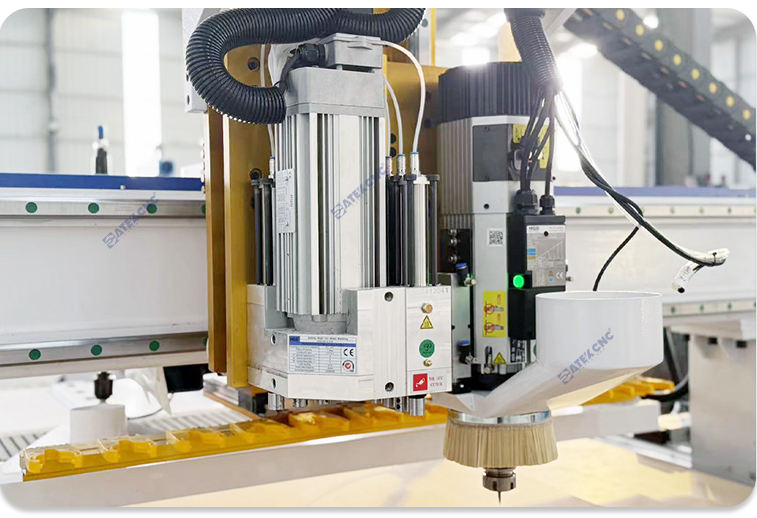

Drill Bag:5+4 pneumatic drilling device
The fourth axis:200mm diameter*2000mm length (chuck type rotating shaft)

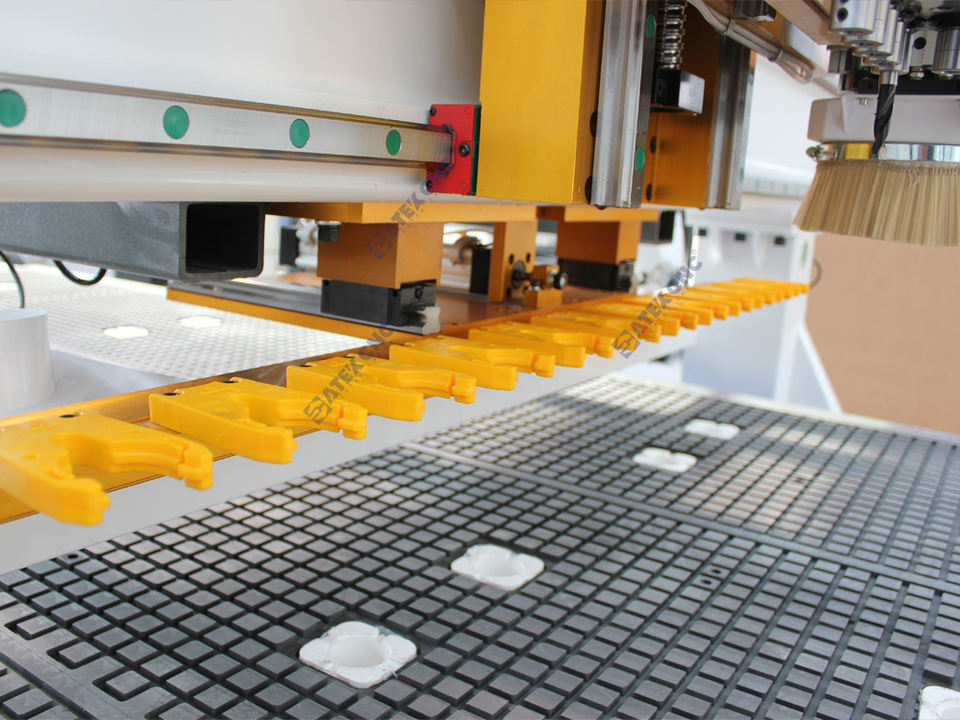

mesa:Vacuum adsorption work surface 6 partitions, 24 holes
Vacuuming method:3KW double-drum dust collector
Vacuum Pump:7.5KW high power water ring vacuum pump
Control System:Taiwan LNC Control System
Reducer:Japan Shimpo planetary gear reducer
position:4+2 Positioning Cylinder
Tool magazine:8/12/16 linear tool changer
Selling Units:Single item
Single package size:410X228X170 cm
Single gross weight:2800.000 kg
