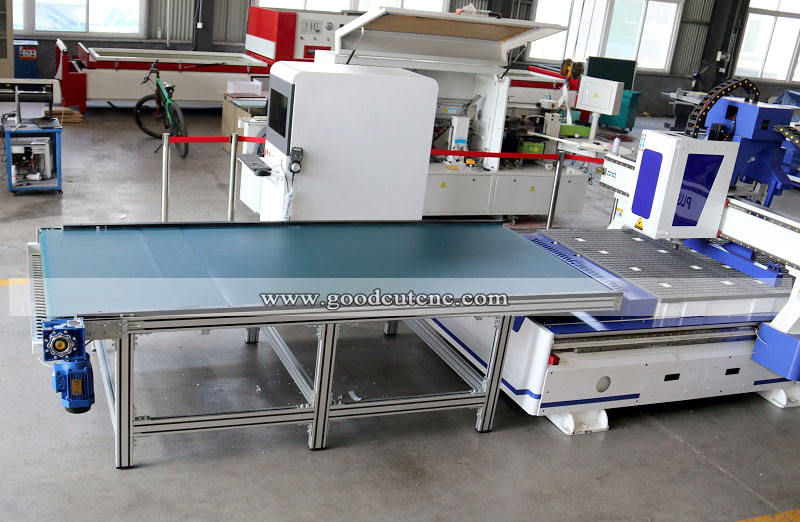

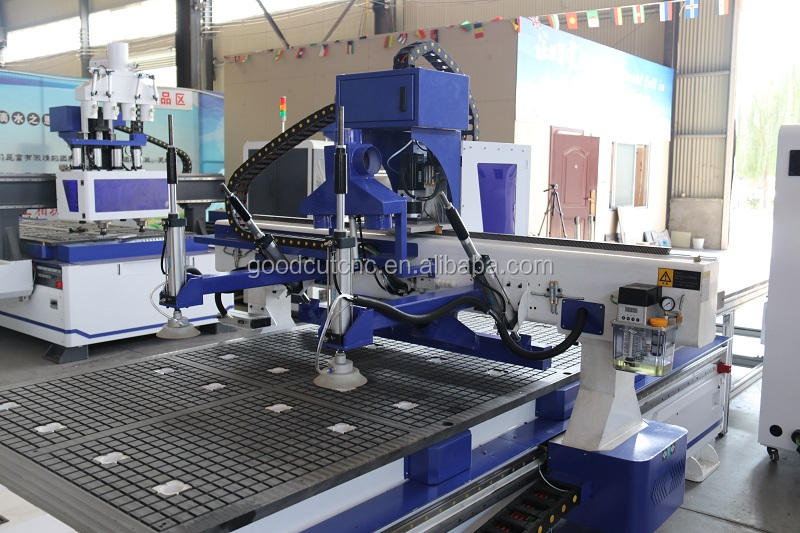

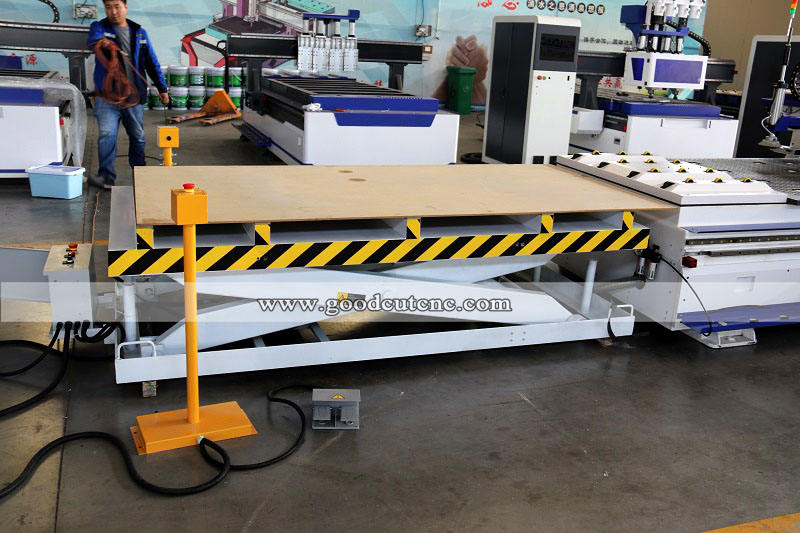

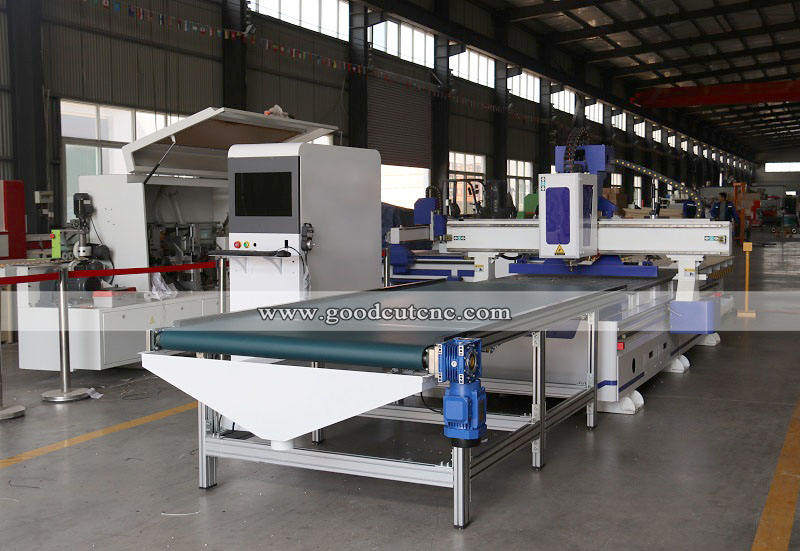

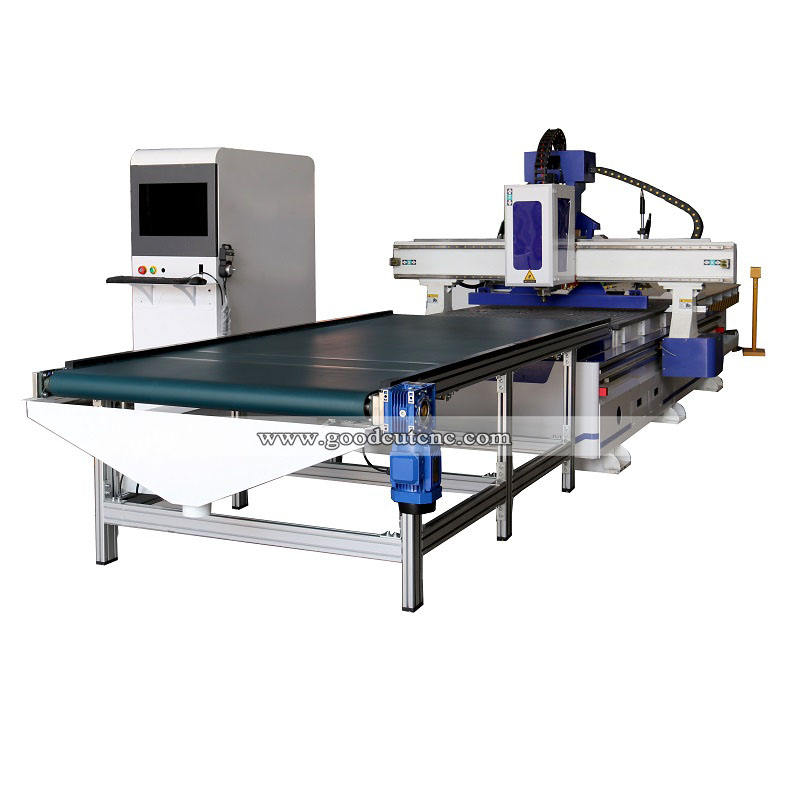

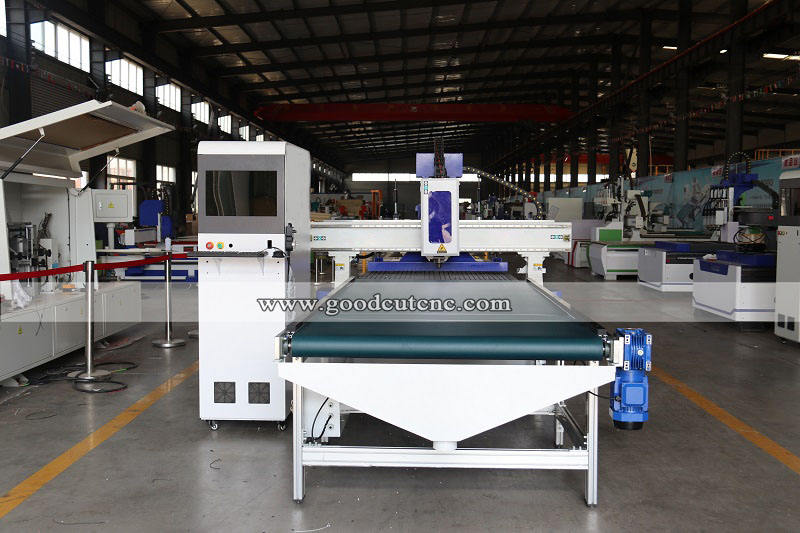

GC1325AF Nesting CNC Router Machine with Auto Load and Unload Device for Woodworking
Attributes
1300×2500Working Table Size(mm)
Nesting CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
AC380V, 50HZ(220v for optional)voltage
2000weight (kg)
warranty:2 Years
range of spindle speed(r.p.m):0 - 18000 rpm
positioning accuracy (mm):0.02 mm
number of axes:3
No. of Spindles:Single
travel (x axis)(mm):1300 mm
travel (y axis)(mm):2500 mm
repeatability (x/y/z) (mm):0.02 mm
Spindle Motor Power (kw):9
brand name:GoodCut CNC
key selling points:Easy To Operate
video outgoing-inspection:Provided
Machine Structure:Heavy duty frame
Table Structure:Vacuum table with 7.5kw vacuum pump
X, Y, Z Guides:Taiwan imported HIWIN rail guides
Z Transmission:Ball screw
Spindle Power:9.0KW air cooling
Collet:ER32
Spindle Speed:18000R/min
Max.Traveling Speed:75000mm/min
Max.Working Speed:25000mm/min
Tool Change Stores:12 pcs automatic tool change in line
Condition:New
Warranty of core components:1 Year
Applicable Industries:hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Selling Units:Single item
Single package size:2100X3500X1700 cm
Single gross weight:2000.000 kg
