certified
Attributes
CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
380 V, 110 V, 200 Vvoltage
2800weight (kg)
3 yearswarranty
range of spindle speed(r.p.m):0 - 24000
positioning accuracy (mm):0.01
number of axes:5
No. of Spindles:ATC
travel (x axis)(mm):1300
travel (y axis)(mm):2800
repeatability (x/y/z) (mm):0.01
Spindle Motor Power (kw):9
brand name:CATEK CNC
dimension(l*w*h):3800*2200*2150mm
key selling points:Automatic
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor, PLC, Engine
Accessory Type:Dust collection

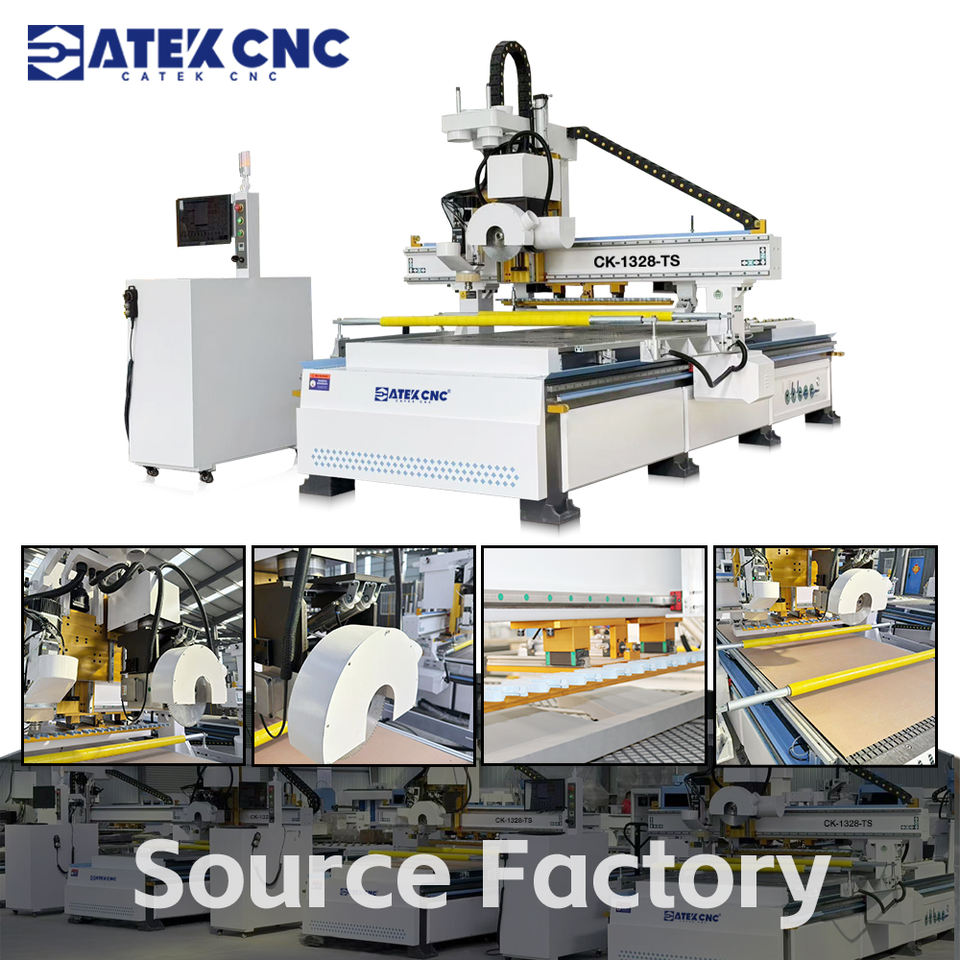

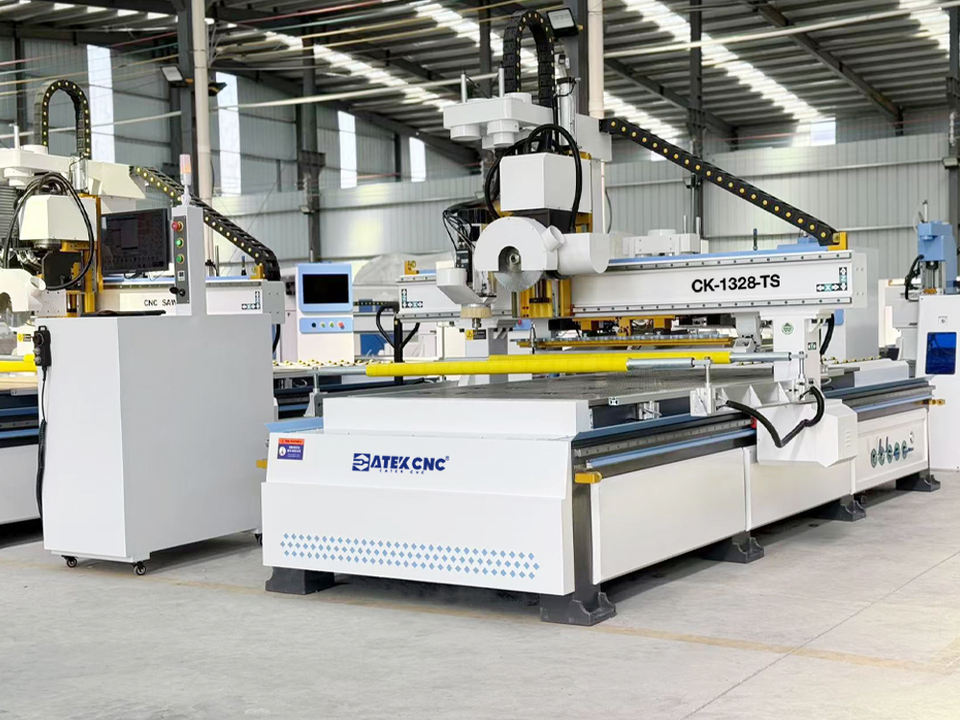

Product name:ATC CNC Router Machine
Control system:LNC Control System
Spindle:9KW HQD high speed air-cooled automatic tool change spindle

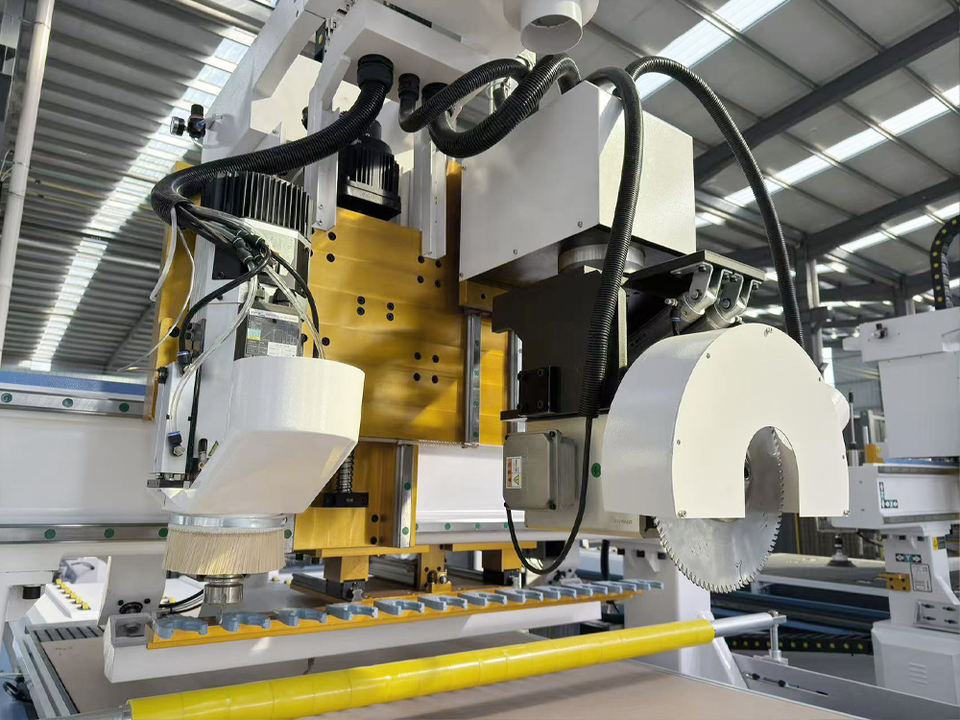

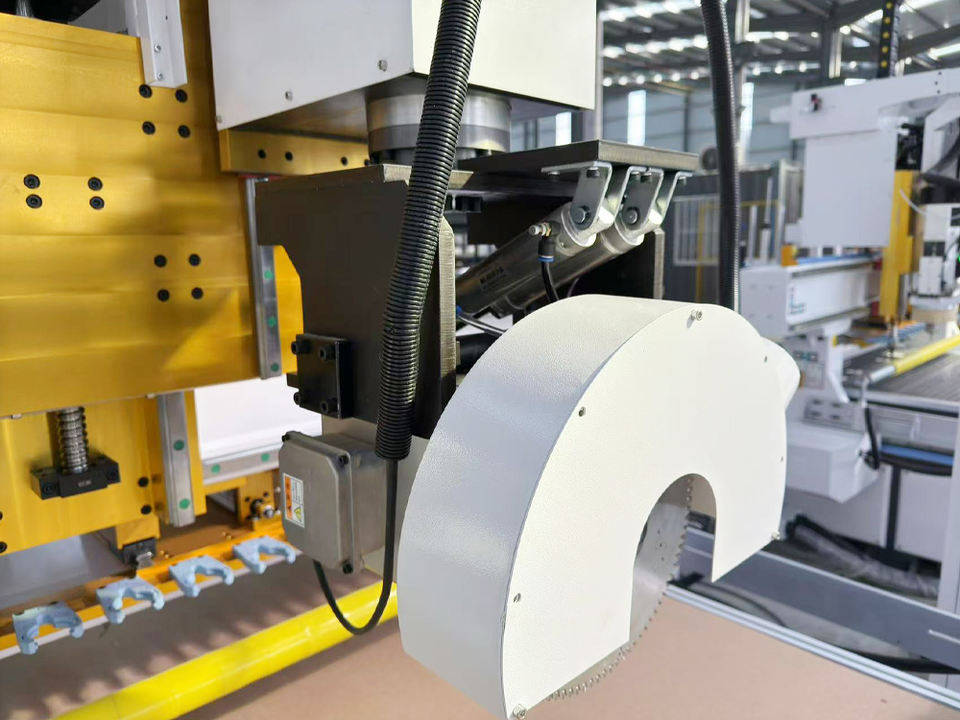

Saw Blade Motor:5.5KW high speed rotating motor
Saw Blade Angle:Horizontal 360° rotation/45° tilt
Working Size:1300*2800*200mm(processing size can be customized)
Tool Change Magazine:12 tool change linear tool magazine (support 8-16 tool customization)
Frequency Converter:Fuling 11KW high torque inverter
Guide:30mm Taiwan Hiwin Linear Guide / Linear Bearing
Press wheel device:Independent double-rod pneumatic pressure roller
Selling Units:Single item
Single package size:3900X2200X1750 cm
Single gross weight:2900.000 kg
