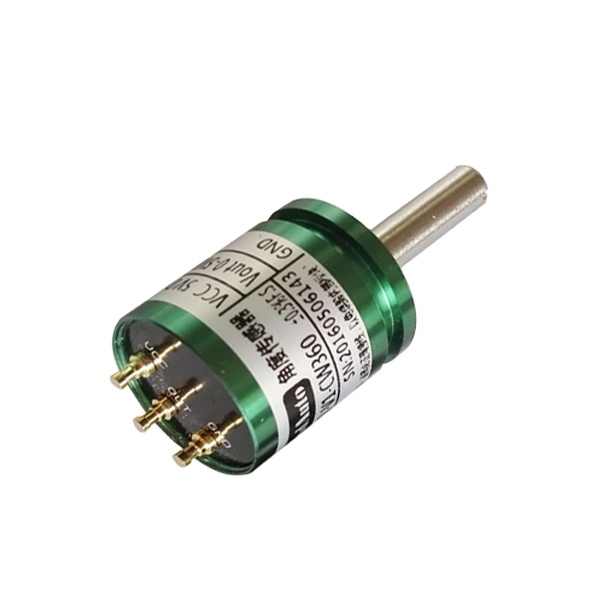

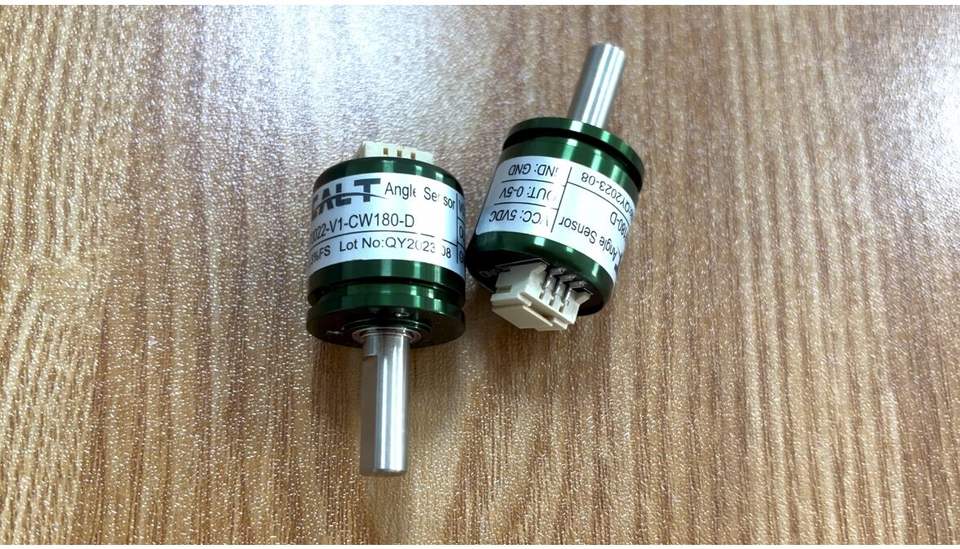

CALT hall effect encoder angle sensor 0V5-4V5 output 15-28V power supply 90/180/270/360 degree P3022

5.0(4 reviews)2 sold

Shanghai Qiyi Co., Ltd.

9 yrs

CN

Attributes

manualMounting Type

2024/01/29Manufacturing Date Code

P3022Model Number

angle sensorUsage

hall angle sensorDescription

Magnetic EncoderType

outer size:22mm

Absolute bit:12/14bit

Power supply:15-28V

Output signal:0V5-4V5

Angle:0-360 degree

Resolution:256/1024/4096

Starting torque:≤3Ncm

Weight::about 25g

Protection:IP40

Theory:Hall Sensor

Packaging Details:Standard strong export carton box

Selling Units:Single item

Single package size:5X4X3 cm

Single gross weight:0.500 kg

Accurate Angle Measurement: The P3022 hall effect encoder angle sensor offers precise angle measurement with a resolution of 256/1024/4096, making it suitable for various applications requiring high accuracy.
Wide Power Supply Range: With a power supply voltage of 15-28V, this encoder can be easily integrated into systems with varying power requirements.
Robust Design: The IP40 protection rating ensures the sensor is resistant to dust and water, making it suitable for harsh environments.
User-Friendly Mounting: The manual mounting type allows for easy installation and adjustment of the sensor, making it convenient for users to integrate into their systems.
Compact Size: With an outer size of 22mm, this sensor is compact and space-efficient, ideal for applications where size is a constraint, such as in robotics and automation systems.

Key attributes

Mounting Type

manual

Manufacturing Date Code

2024/01/29

Model Number

P3022

Usage

angle sensor

Description

hall angle sensor

Type

Magnetic Encoder

outer size

22mm

Absolute bit

12/14bit

Power supply

15-28V

Output signal

0V5-4V5

Angle

0-360 degree

Resolution

256/1024/4096

Starting torque

≤3Ncm

Weight:

about 25g

Protection

IP40

Theory

Hall Sensor

Packaging and delivery

Packaging Details

Standard strong export carton box

Selling Units

Single item

Single package size

5X4X3 cm

Single gross weight

0.500 kg

Lead time

Customization options

Customized packaging (Min. order: 2 pieces)

Graphic customization (Min. order: 2 pieces)

degree (Min. order: 2 pieces)

output (Min. order: 1 piece)
