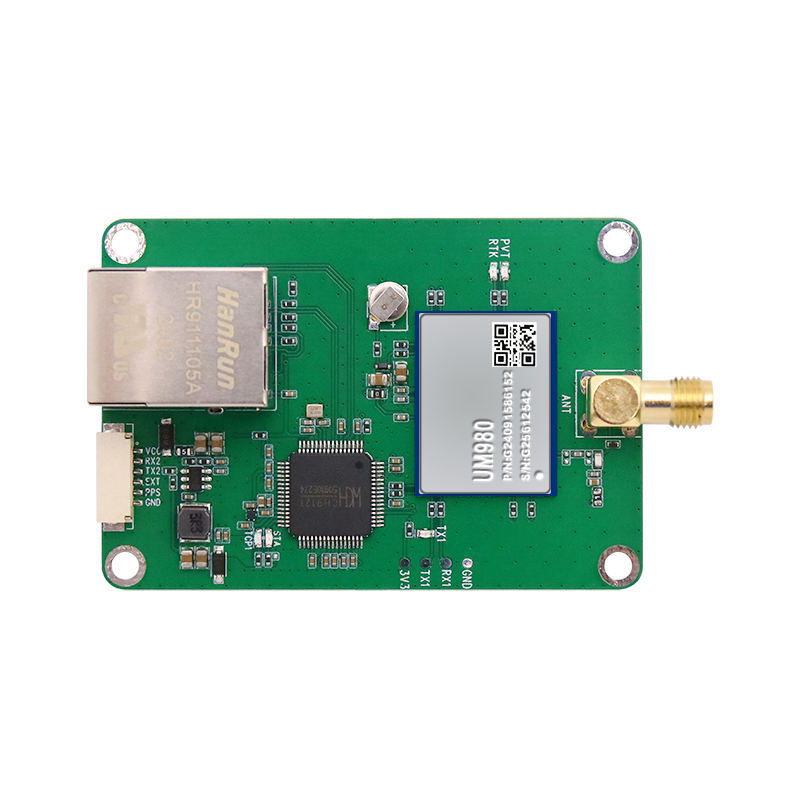

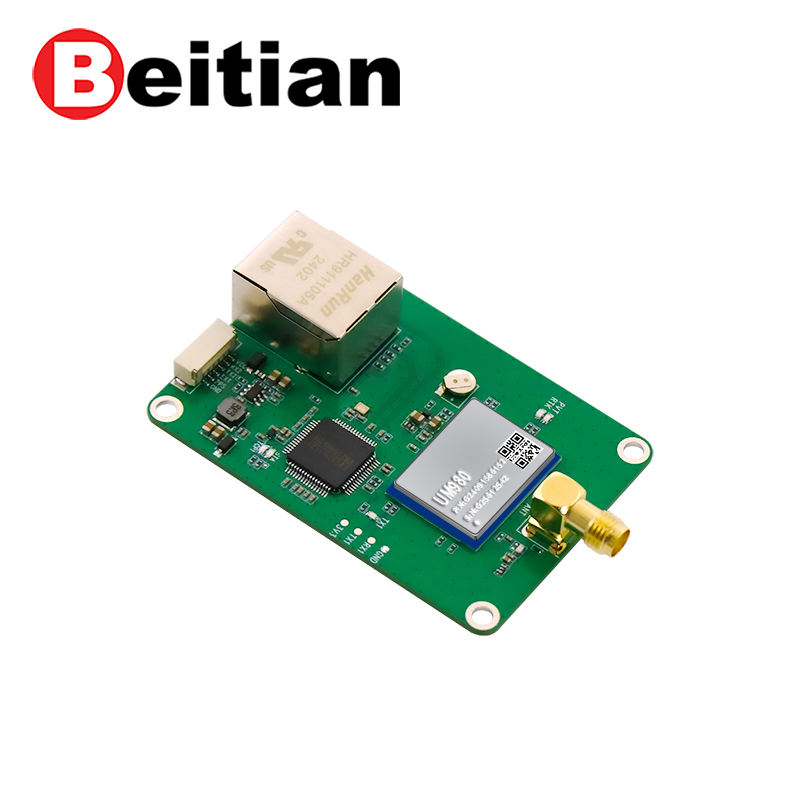

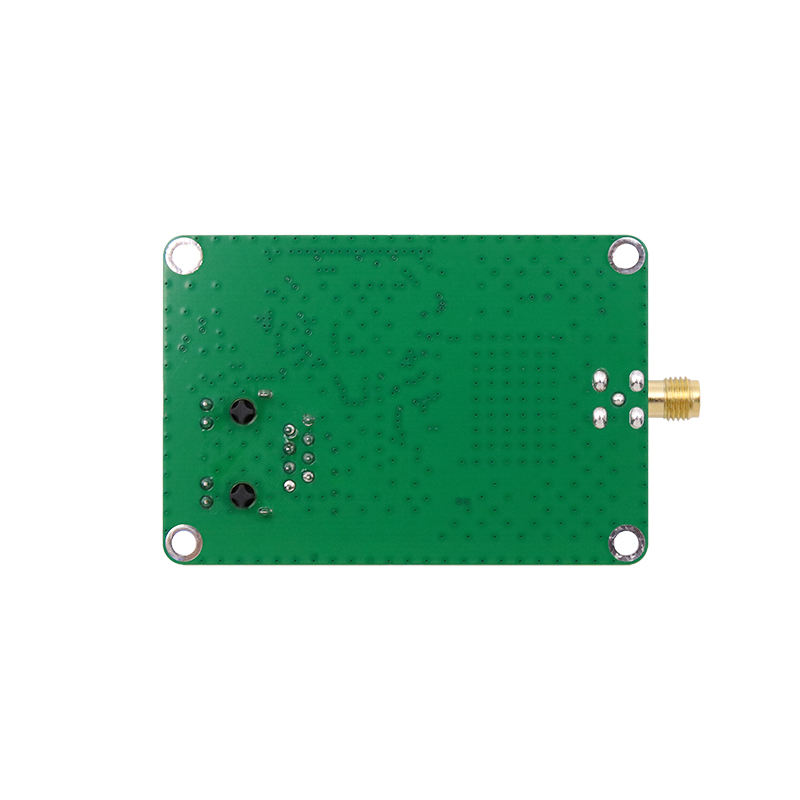

Beitian GNSS Module RTK Differential High-precision Board Card Beidou GPS Positioning Unmanned Aerial Vehicle BT-M422

No reviews yet

Shenzhen Beitian Communication Co., Ltd.

9 yrs

CN

Attributes

BT-M422Model Number

RTK GNSS ModuleChipset

PositioningApplication

Guangdong, ChinaPlace of Origin

GNSS ModuleType

BeitianBrand

Brand Name:Beitian

Dimensions:66*45*14.7mm

Positioning Accuracy:66*45*14.7mm

Communication Interface:1*1.25 spacing 6pin with lock seat 1* Ethernet int

Voltage:12V

Current:112mA/12.0V

Size:66*45*14.7mm

Weight:21g

Connector:1*1.25 spacing 6pin with lock seat 1* Ethernet interface

Antenna interface:SMA-KW

Operating temperature:-40 °C ~ +85°C

Storage temperature:-40°C ~ +105°C

Baud rate:4800bps - 921600bps, default 115200bps

Output level:TTL level

Selling Units:Single item

Single package size:20X15X5 cm

Single gross weight:0.100 kg

Key attributes

Model Number

BT-M422

Chipset

RTK GNSS Module

Application

Positioning

Place of Origin

Guangdong, China

Type

GNSS Module

Brand

Beitian

Brand Name

Beitian

Dimensions

66*45*14.7mm

Positioning Accuracy

66*45*14.7mm

Communication Interface

1*1.25 spacing 6pin with lock seat 1* Ethernet int

Voltage

12V

Current

112mA/12.0V

Size

66*45*14.7mm

Weight

21g

Connector

1*1.25 spacing 6pin with lock seat 1* Ethernet interface

Antenna interface

SMA-KW

Operating temperature

-40 °C ~ +85°C

Storage temperature

-40°C ~ +105°C

Baud rate

4800bps - 921600bps, default 115200bps

Output level

TTL level

Packaging and delivery

Selling Units

Single item

Single package size

20X15X5 cm

Single gross weight

0.100 kg

Lead time

Customization options

Customized logo (Min. order: 10,000 pieces)

Customized packaging (Min. order: 10,000 pieces)

Graphic customization (Min. order: 10,000 pieces)
