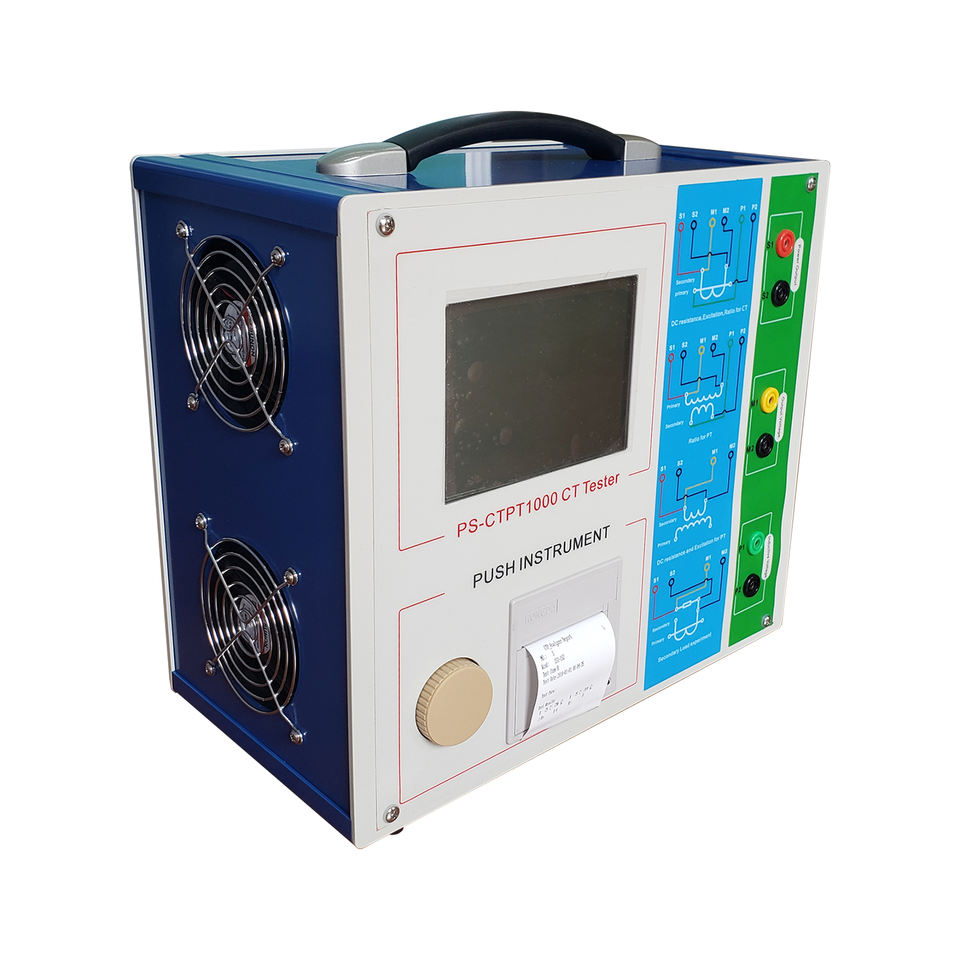

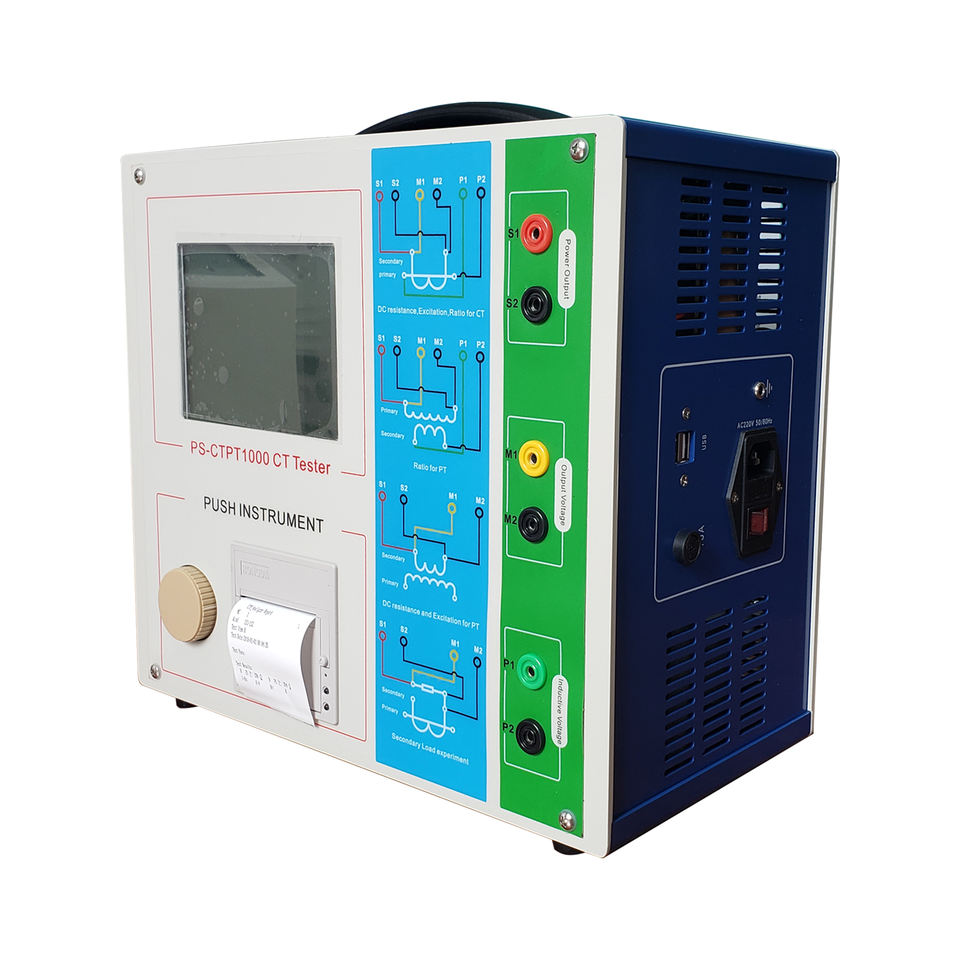

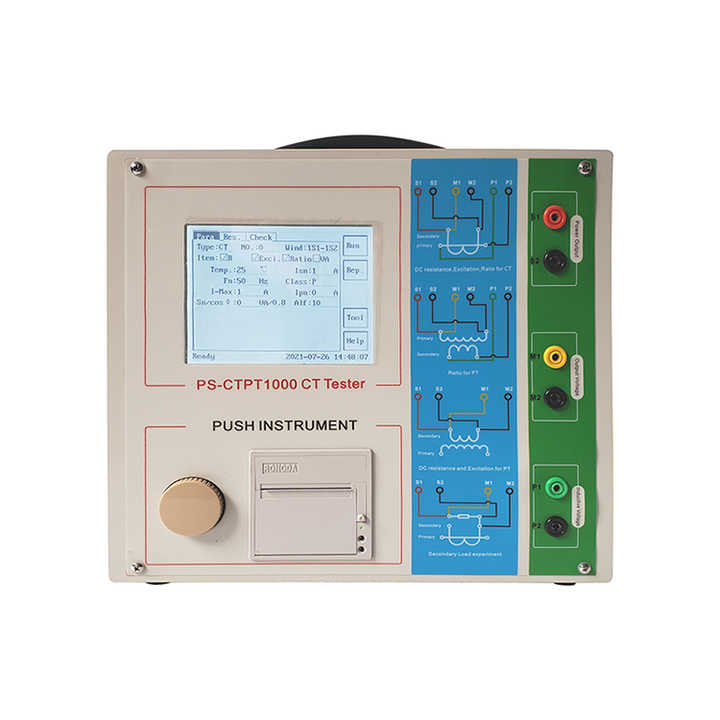

Automatic Instrument Transformer Testing Device Variable Frequency CT PT Analyzer

No reviews yet

Baoding Push Electrical Manufacturing Co., Ltd.

Custom Manufacturer

8 yrs

CN

Attributes

Hebei, Chinaplace of origin

OEMcustomized support

pushbrand name

1 YEARwarranty

PS-CTPT1000model number

CT PT Analyzer, Instrument Transformer Test DeviceProduct Name

Application:instrument transformer testing

CT PT Test Items::Excitation, Ratio, Polarity, winding resistance, ratio error, etc

Advantages::Automatically give CT, VT parameter

Test method:IEC60044, GB1208, GB16847,

Output:0~180Vrms,12Arms,18A(Peak)

Voltage measurement accuracy:±0.02%

Power Supply:AC220V±10%,50Hz

Working Condition:Temperature:-10~50, Humidity:≤90%

Weight and Dimension:340mmX300mmX150mm, 8kg

Power:Electronic

Packaging Details:CT PT Analyzer Packing: Foam inside and wooden case outside Packing volume:530mm*480mm*520mm Packing weight:37kg

Port of dispatch:Tianjin port,Qinhuangdao port,Tangshan port

Selling Units:Single item

Single package size:34X30X15 cm

Single gross weight:9.000 kg

Supply Ability:300 sets per Month CT PT Analyzer

Accurate Testing Capabilities: The PS-CTPT1000 offers precise testing of instrument transformers, including excitation, ratio, polarity, winding resistance, and ratio error, in accordance with IEC60044, GB1208, and GB16847 standards.
Automated Testing: This device automatically provides CT and VT parameter measurements, saving time and effort for users.
Wide Range of Output: The device can output 0-180VRMS, 12ARMS, and 18A (peak), catering to various testing requirements.
User Input Considered: We can customize the device to meet specific user input needs, including OEM support.
Reliable Performance: With a 1-year warranty and high voltage measurement accuracy of 0.02%, the PS-CTPT1000 ensures reliable performance in temperatures up to 50°C and humidity up to 90%.

Key attributes

place of origin

Hebei, China

customized support

OEM

brand name

push

warranty

1 YEAR

model number

PS-CTPT1000

Product Name

CT PT Analyzer, Instrument Transformer Test Device

Application

instrument transformer testing

CT PT Test Items:

Excitation, Ratio, Polarity, winding resistance, ratio error, etc

Advantages:

Automatically give CT, VT parameter

Test method

IEC60044, GB1208, GB16847,

Output

0~180Vrms,12Arms,18A(Peak)

Voltage measurement accuracy

±0.02%

Power Supply

AC220V±10%,50Hz

Working Condition

Temperature:-10~50, Humidity:≤90%

Weight and Dimension

340mmX300mmX150mm, 8kg

Power

Electronic

Packaging and delivery

Packaging Details

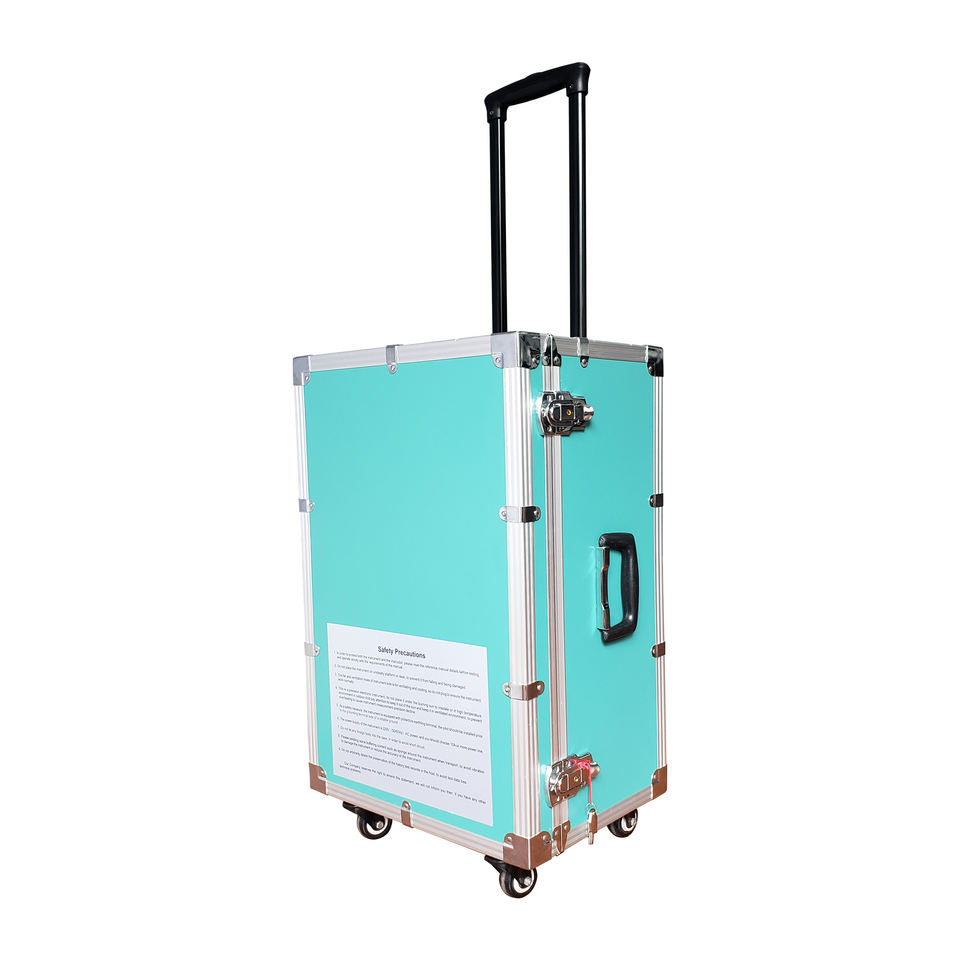

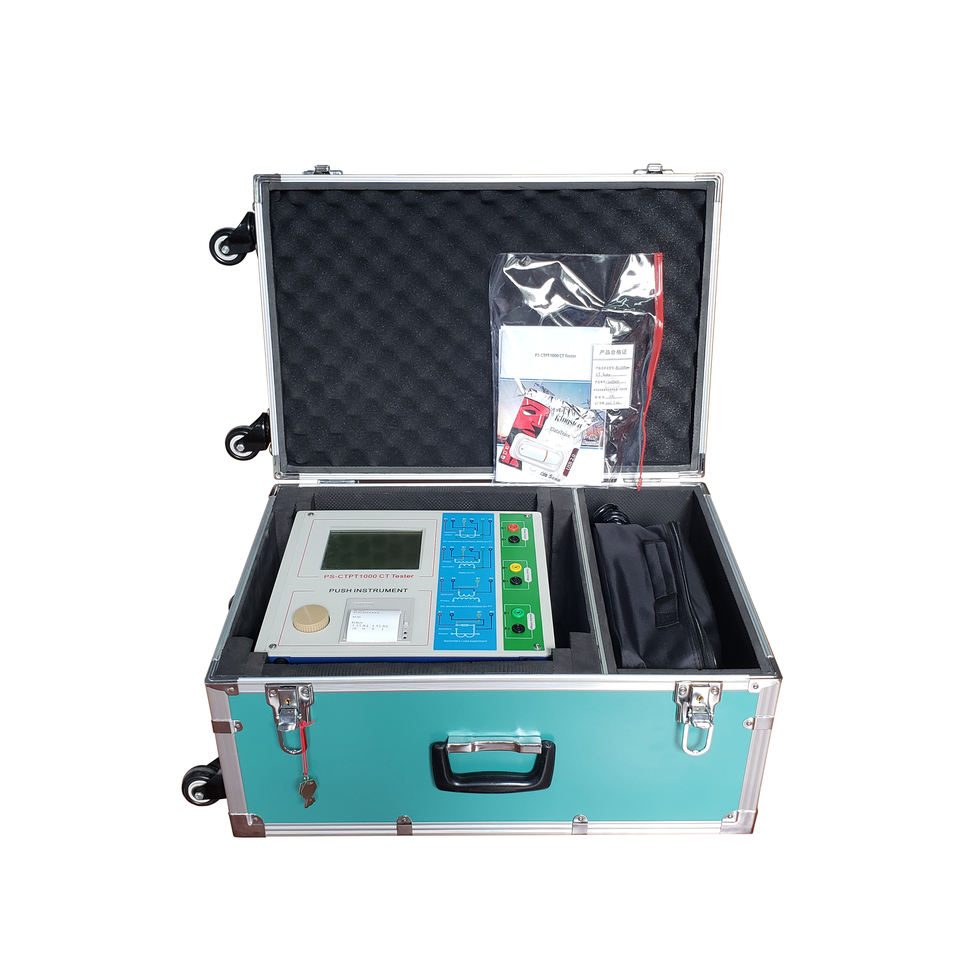

CT PT Analyzer Packing: Foam inside and wooden case outside Packing volume:530mm*480mm*520mm Packing weight:37kg

Port of dispatch

Tianjin port,Qinhuangdao port,Tangshan port

Selling Units

Single item

Single package size

34X30X15 cm

Single gross weight

9.000 kg

Packaging examples

Supply capacity

Supply Ability

300 sets per Month CT PT Analyzer

Lead time

Customization options

Customized logo (Min. order: 1 set)

OEM (Min. order: 1 set)

Data transmission (Min. order: 1 set)

Customized packaging (Min. order: 1 set)

Graphic customization (Min. order: 1 set)

View details

Product descriptions from the supplier

Minimum order quantity: 1 set

$1,000-6,500

Sample price: $7,500

Variations

Customization options

Customized logo (Min. order: 1 set)

OEM (Min. order: 1 set)

Data transmission (Min. order: 1 set)

+2 more options

Supplier’s customization ability

Minor customization

Drawing-based customization

Sample-based customization

Full customization

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
