Complies with EU standards
Attributes

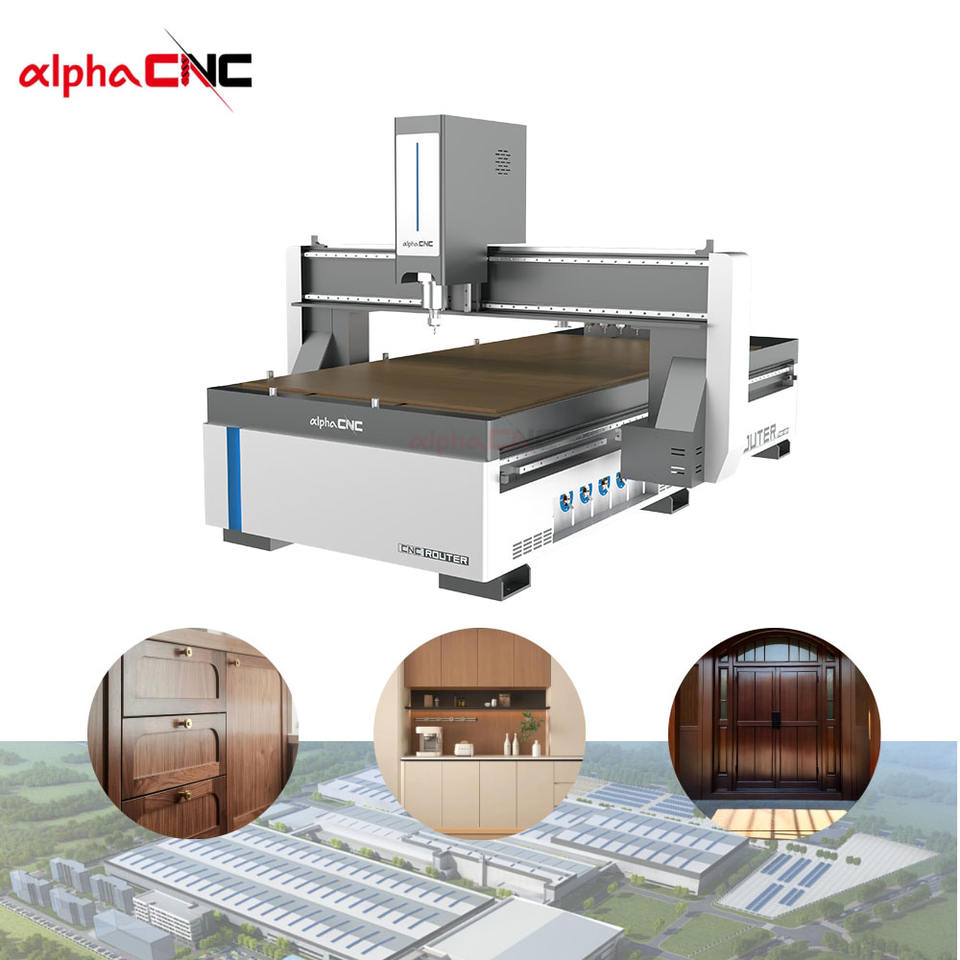

Nesting CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
220V/380Vvoltage
1500weight (kg)
3 yearswarranty
range of spindle speed(r.p.m):1 - 24000
positioning accuracy (mm):0.1
number of axes:3
No. of Spindles:ATC
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.03
Spindle Motor Power (kw):9
brand name:Alpha
dimension(l*w*h):1300*2500*200mm
key selling points:Easy To Operate
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor, Bearing, Pump, Engine, Gearbox
Accessory Type:Dust collection, Scanner
Application:MDF/ WOOD /ACRYLIC / SOFT METAL
Motor:Servo motor
CNC Router Table Size:1300x2500*200mm/1500*3000*200mm/2000*3000*200mm/2000*4000*200mm, etc.
Accuracy:±0.03mm

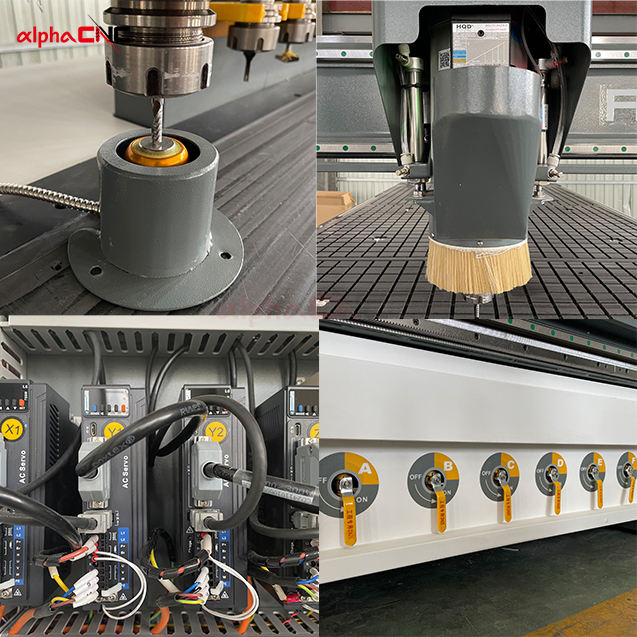

Spindle type:ATC air cooling spindle
Inverter:11kw Fuling inverter
Motor and driving system:servo motor drive+Japan SHIMPO reducer
Control system:Taiwan SYNTEC/LNC controller
Table structure:Vacuum work table

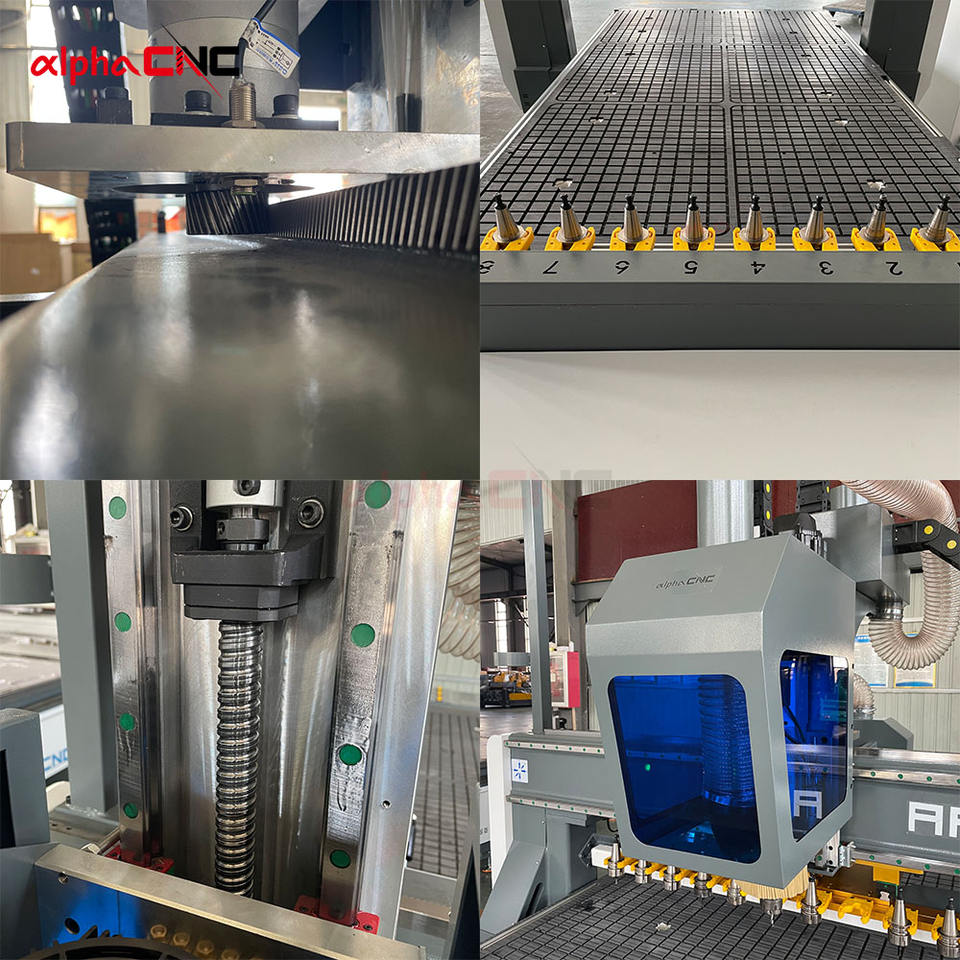

Transmission:X,Y axis: Taiwan helical rack Z axis: Taiwan TBI ball screw
Selling Units:Single item
Single package size:215X300X180 cm
Single gross weight:1500.000 kg
