Attributes
1AContinuous Current(A)
IE 1Efficiency
90rpmSpeed(RPM)
Henan, ChinaPlace of Origin
42 mmFrame
Flange MountMotor Mounting Type
Rated Power:100 W
Rated voltage:DC 24 V

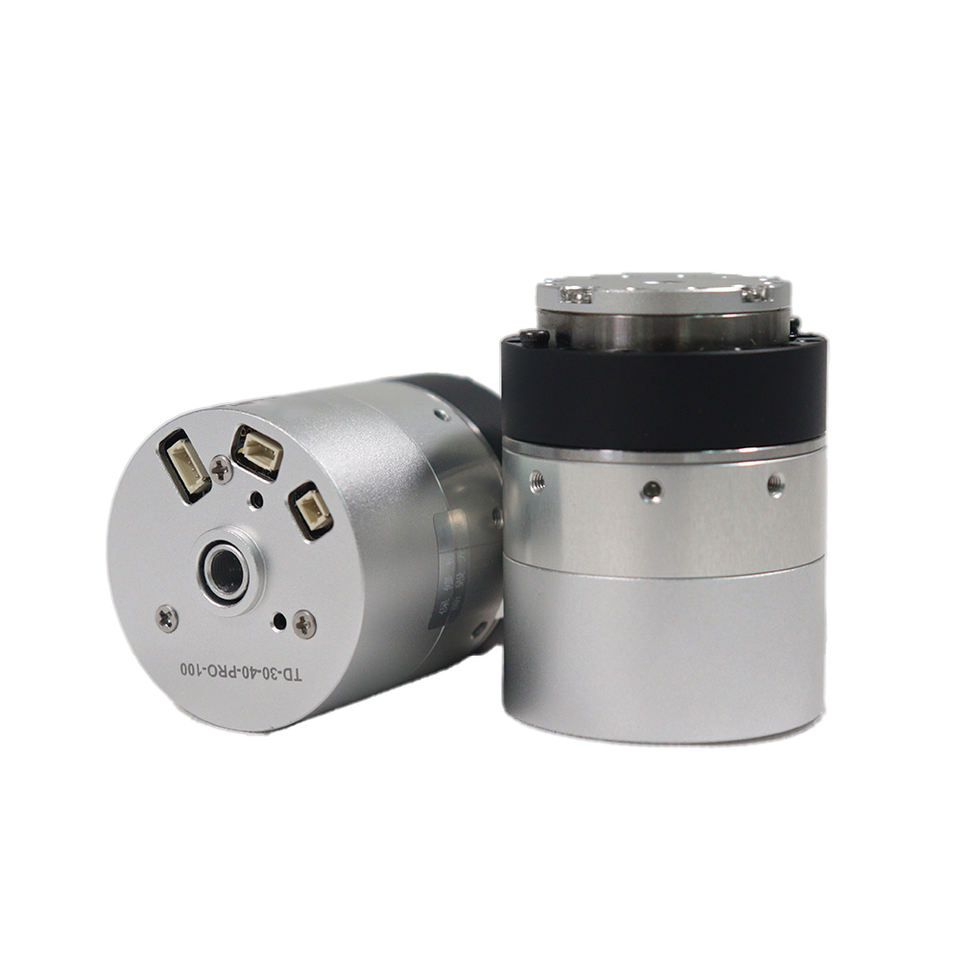

Model Number:TD-30-40-PRO-100B
Brand Name:None
Commutation:Brushless
Construction:Permanent Magnet
IP Rating:IP65
Protect Feature:Drip-proof
Speed Rpm:100 RPM
Torque:1.8Nm
Type:Gear Motor
Usage:ROBOT ARM
Warranty:1 year

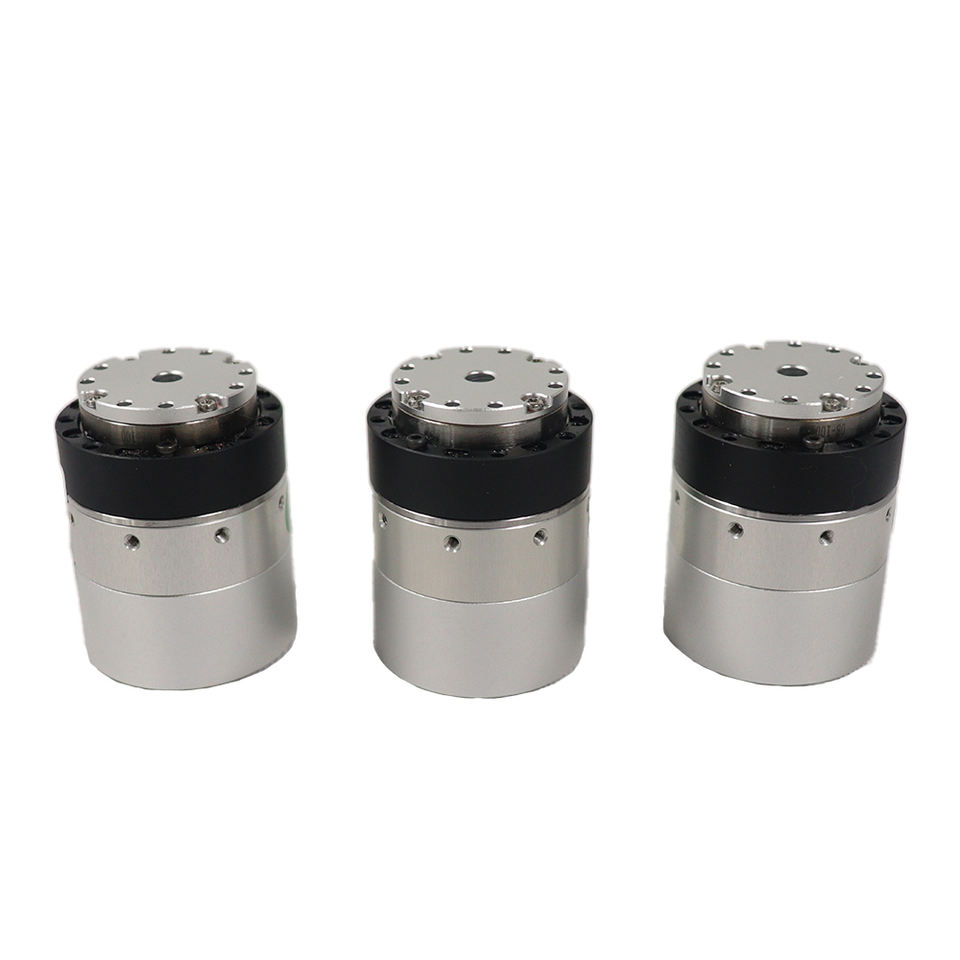

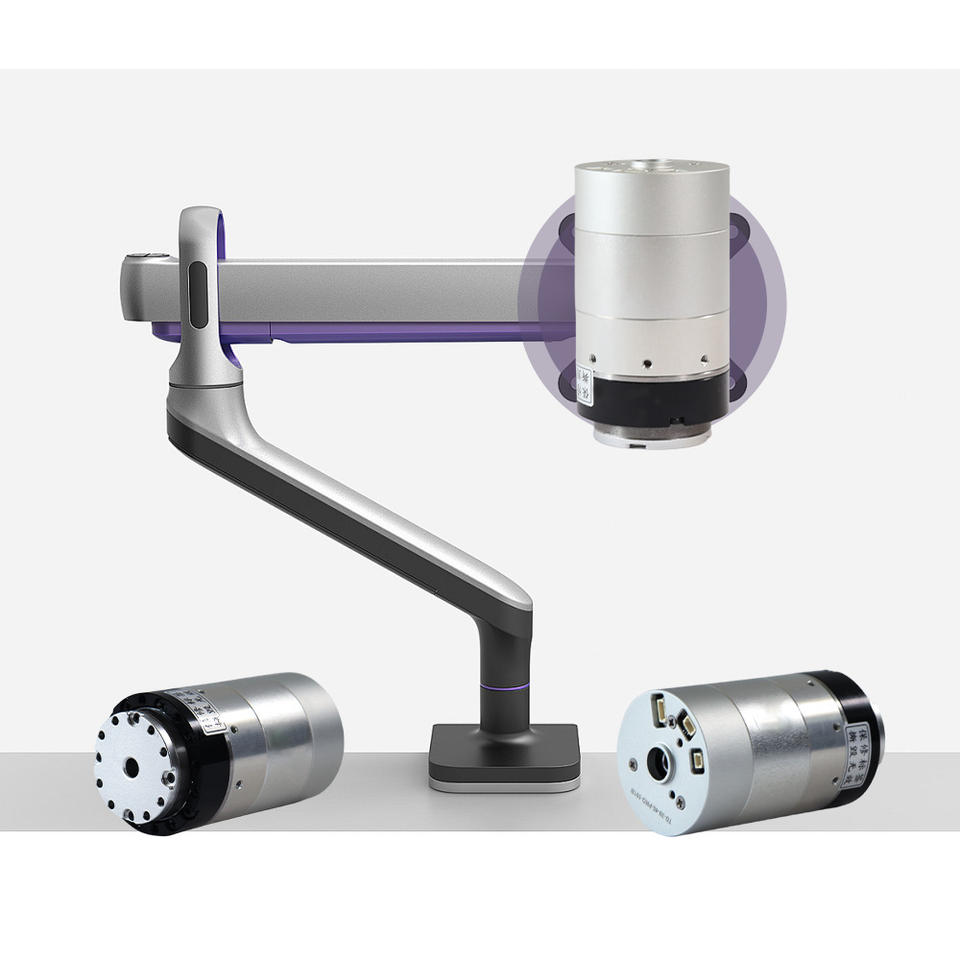

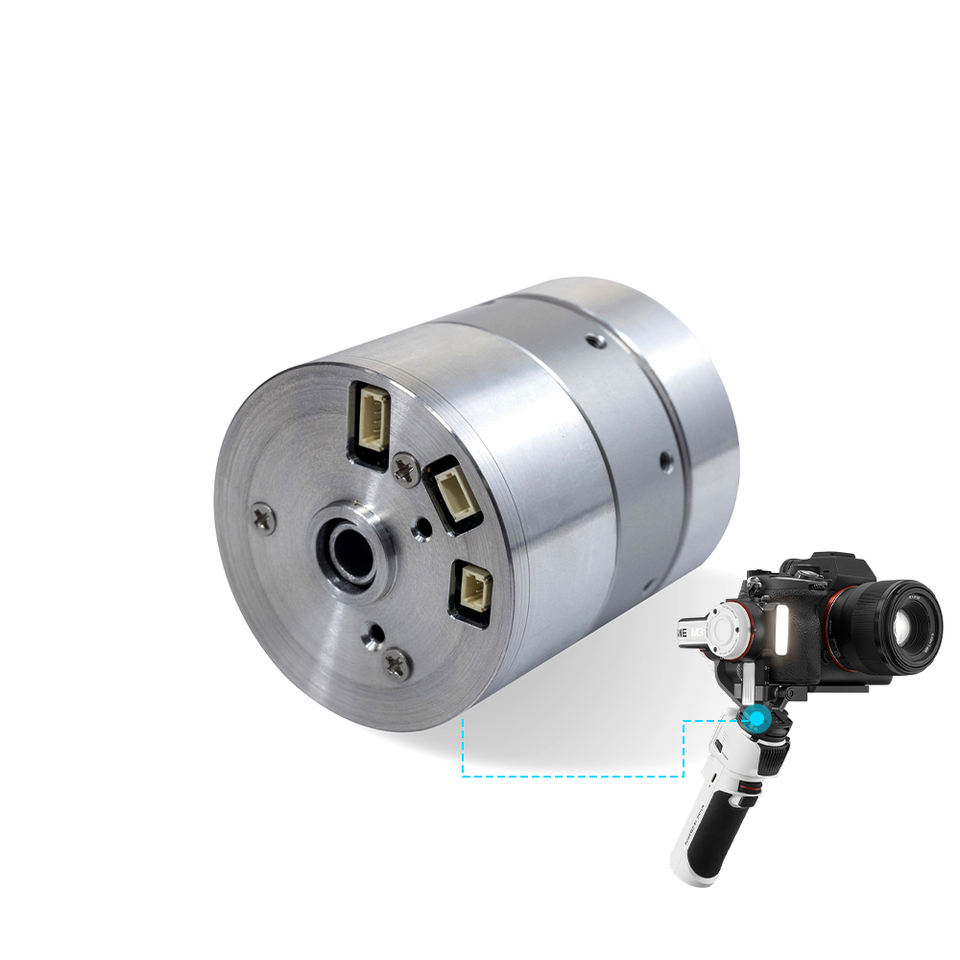

Product name:Pan and tilt camera brake module robot joint motor smart actuators
Start-stop peak Torque:4.8Nm
OutpuT Peak Speed:59rpm
Motor power:36W
Supply voltage:24-48VDC
Rated current:1A
Backlash:40arcsec
Torque constant:0.024N.m/A
Resistance:0.024ohm
Inertia:16g * c㎡
Selling Units:Single item
Single package size:15X15X10 cm
Single gross weight:1.000 kg
