Attributes
Shaft type with clamping flangeMounting Type
ACT58-J-PModel Number
BossyinBrand Name
long-term underwater workUsage
slotted endActuator Type
Push-Pull output compatible with NPN and NPNDescription
Type:ABSOLUTE ENCODER
Place of Origin:Jiangsu, China
Series:Single-Turn Absolute Encoder
Features:Resolution is up to 65536 per turn
Theory:Parallel Signal Output
Output:Parallel Push-Pull

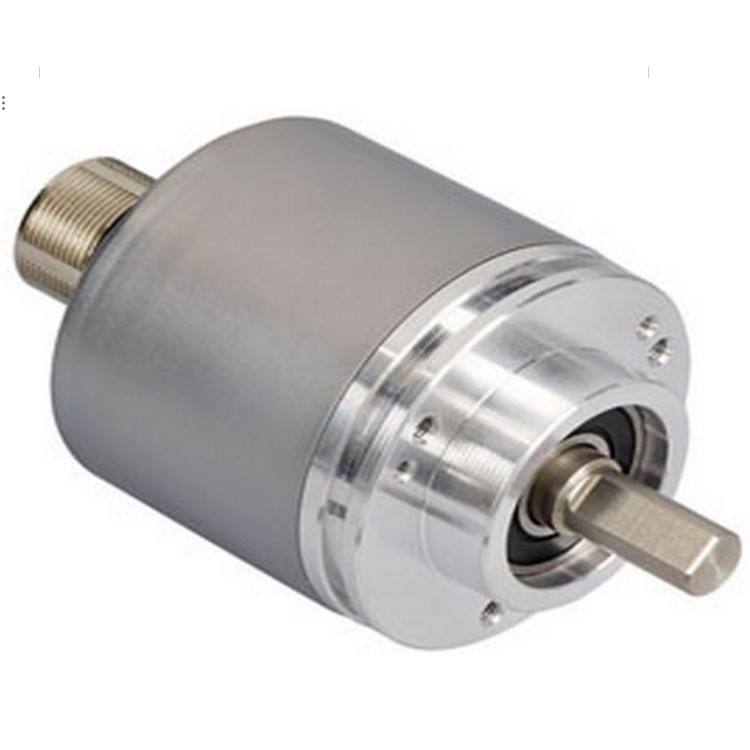

Description:58mm Housing Absolute Encoder
Voltage - Supply:5v/8-30v
Termination Style:Wire Leads
Orientation:Horizontal
Communication Interface:Profibus
Protect Grade:IP65 Or IP68
Characteristics:Shaft type with clamping flange
Spindle Diameter:Shaft type 6 mm
Maximum Speed:6000r/min
Supply Voltage:5V or 10-30V
Single-Turn Resolution:Max 16 bit 65536
Number of Turns:4096 Turns 60mm Absolute Turns
Code:Gray code or binary
Repetition Precision:±2BIT
External Diameter:58mm
Selling Units:Single item
Single package size:10X10X8 cm
Single gross weight:2.000 kg
