Attributes
1220×2400Working Table Size(mm)
Nesting CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
AC380V/50HZvoltage
9.6Power (kW)
weight (kg):3500
warranty:1 Year
range of spindle speed(r.p.m):6000 - 24000 rpm
positioning accuracy (mm):0.02 mm
number of axes:3
No. of Spindles:Single
travel (x axis)(mm):1220 mm
travel (y axis)(mm):2400 mm
repeatability (x/y/z) (mm):0.02 mm
Spindle Motor Power (kw):9.6
brand name:QUICK CNC
dimension(l*w*h):1300X2500X200MM
key selling points:Automatic
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox

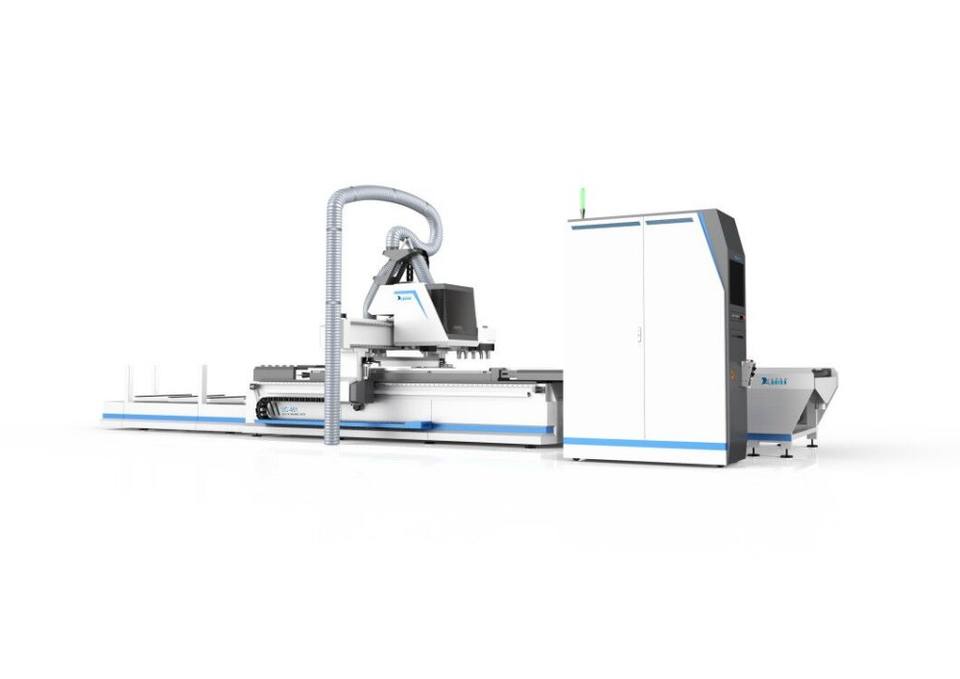

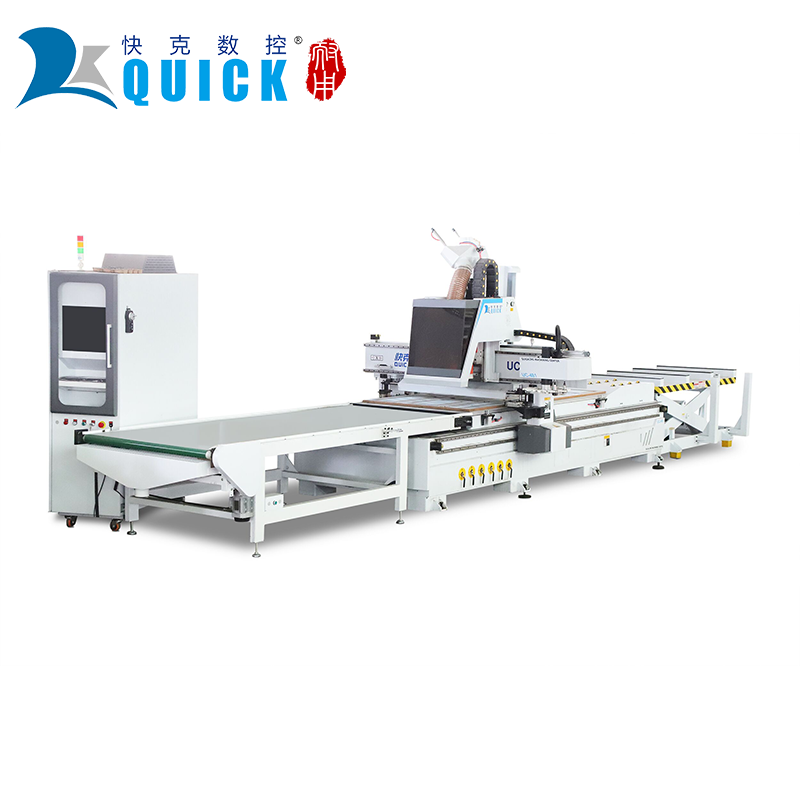

Product name:ATC loading unloading CNC router
Control system:Syntec 20A
Spindle:Italy air cooling Spindle
Motor:Japan Yaskawa Servo Motor
X, Y transmission:Rack Gear Transmission
Z-Axis transmission:Ball Screw

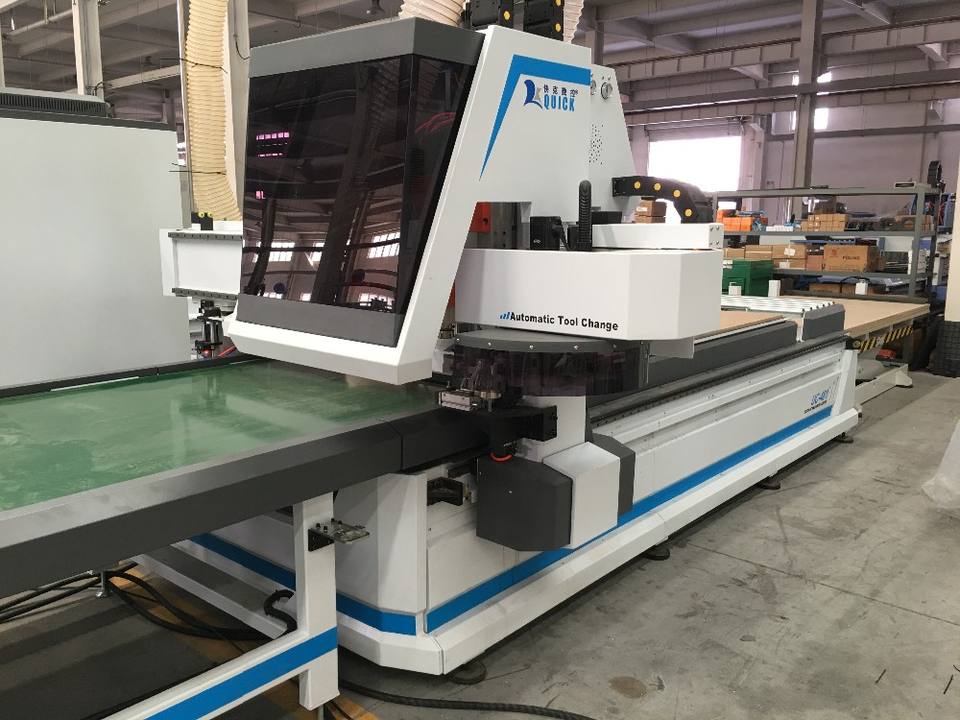

Tool Magazine:servo motor carousel type
Table:vacuum table
Controller:Syntec 20A
Working table:Vacuum Adsorption Working Table
Selling Units:Single item
Single package size:320X220X180 cm
Single gross weight:50.000 kg
