Attributes
1260*2480Working Table Size(mm)
Nesting CNC Routermachine type
CNCcnc or not
Shandong, Chinaplace of origin
380Vvoltage
11Power (kW)
weight (kg):25000
warranty:1 Year
range of spindle speed(r.p.m):15000 - 30000 rpm
positioning accuracy (mm):0.02 mm
number of axes:3
No. of Spindles:ATC
travel (x axis)(mm):1300 mm
travel (y axis)(mm):2500 mm
repeatability (x/y/z) (mm):0.02 mm
Spindle Motor Power (kw):9
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
core components:Motor

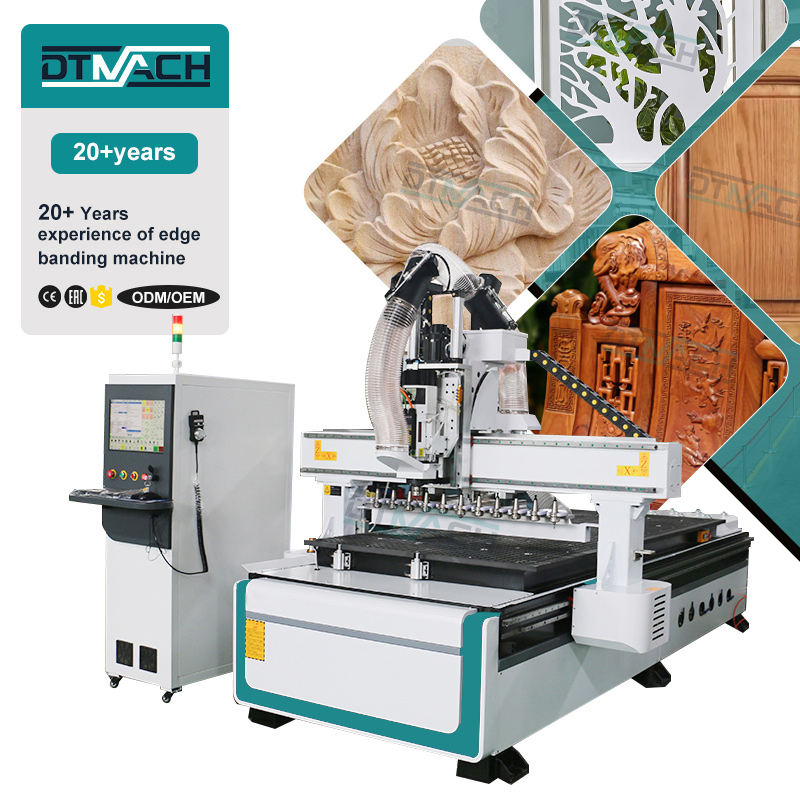

Product name:ATC CNC Router Machine
Application:Kitchen Cabinet Doors Furnitures Making
Max empty travel speed:XY50000mm/min Z20000mm/min
Working Speed:15000-30000mm/min
Bed structure:Heavy Bed Structure
Transmission:Guide ;25mm Square rail

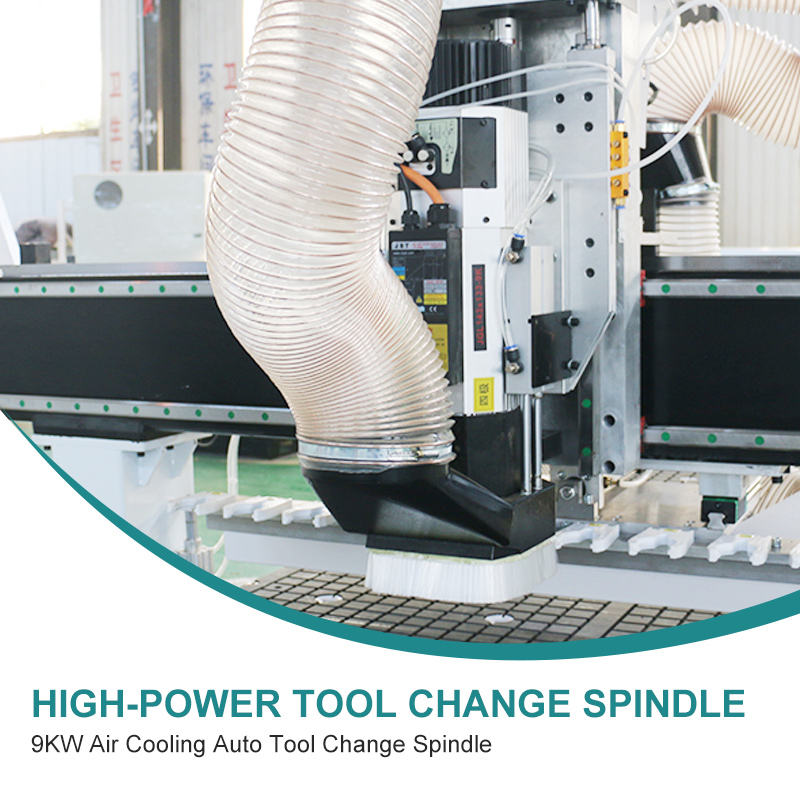

Spindle power:9KW Air cooling
Drive motors:1500W servo motor
Dust collection:5.5KW

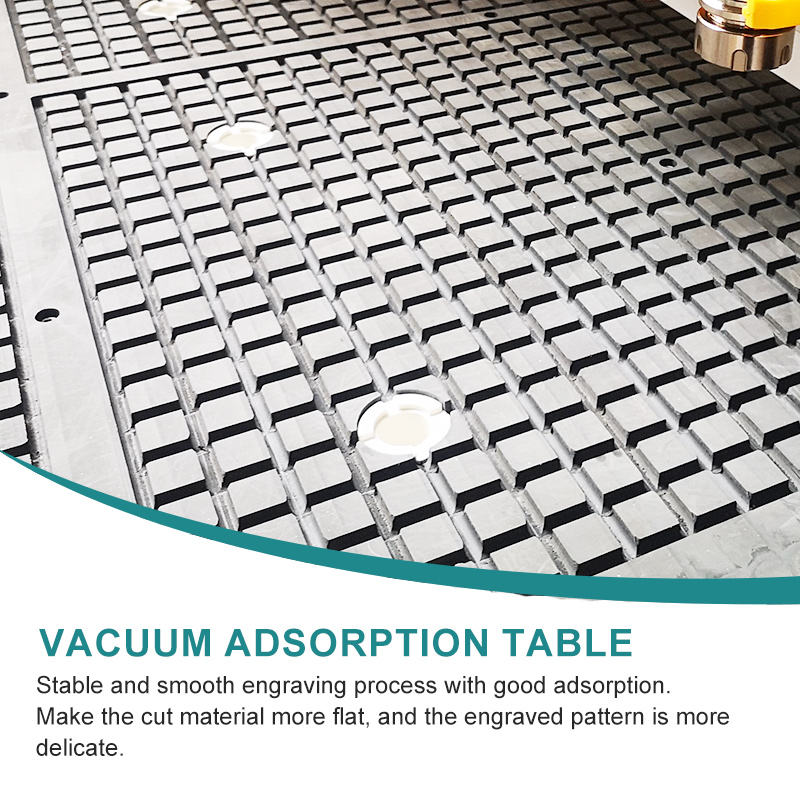

Vacuum Pump:7.5KW water pump
Selling Units:Single item
