Kenmerken
Shaft screw mountMontage Type
2025Productie Datum Code
HYXL-BMQ01modelnummer
Servo platforms,stabilization/aiming systems,EO/IRgebruik
Rotary shaft (stator + rotor)Actuator Type

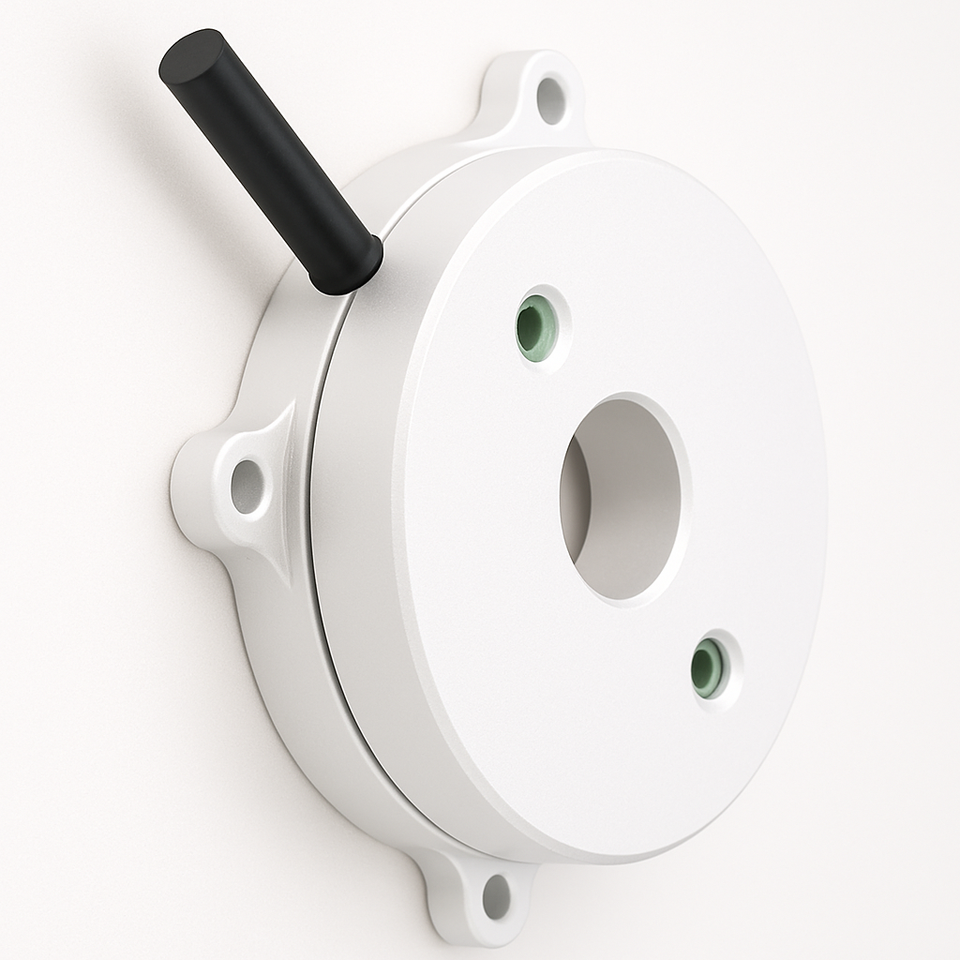

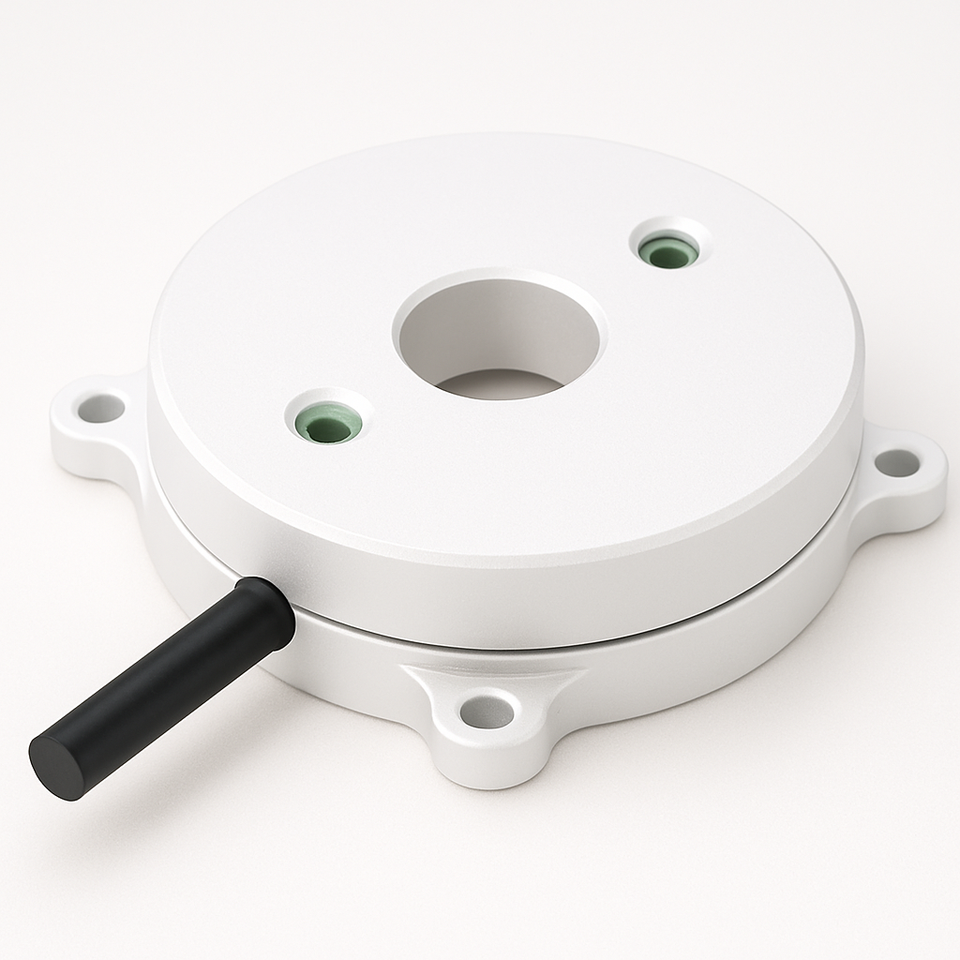

18bit absolute inductive encoder,0-360 °,±0.02 °Beschrijving
type:Absolute inductive encoder (non-contact)
plaats van herkomst:Shaanxi, China
Kenmerken:18-bit resolution;≤ 0.02 ° accuracy;non-contact
theorie:Inductive (non-contact)
uitgang:SSI (RS-422 differential),24-bit frame,18-bit data
Ingebouwde Schakelaar:None
Voltage-Supply:5 V DC ± 5 %
Beëindiging Stijl:500 mm flying leads (AFR-250-0.1 mm² cable)
Oriëntatie:Coaxial rotor/stator; full 360 ° rotation
Communicatie interface:SSI (RS-422 differential)
Het Rotatieleven (cycli Min):> 1 x 100000000 cycles (theoretical unlimited)
Dimensions (L x W x H):22.4 x 22.4 x 8.0 mm
Weight:≤ 15 g (incl. housing)
Bias Stability:≤ 1 °/h
Zero Bias over Temperature:±0.005 °/s (-40 °C - +70 °C)
Angular Random Walk (ARW):0.15 °/h
Scale-Factor Nonlinearity:≤ 100 ppm
Data Output / Update Rate:Up to 2 kHz
Latency (Data Delay):≤ 1.5 ms (including comms)
Shock Resistance:100 g, 11 ms half-sine
Vibration Resistance:20 g, 10-2000 Hz
Selling Eenheden:Enkel product
