Attributes
1220×2400Working Table Size(mm)
CNC Routermachine type
CNCcnc or not
SHNplace of origin
380V 50HZ/ 220V 50HZvoltage
3.7Power (kW)
weight (kg):1600
warranty:2 Years
range of spindle speed(r.p.m):0 - 24000 rpm
positioning accuracy (mm):0.01 mm
number of axes:3
No. of Spindles:Single
travel (x axis)(mm):1200 mm
travel (y axis)(mm):2400 mm
repeatability (x/y/z) (mm):0.01 mm
Spindle Motor Power (kw):9
brand name:SIGN-CNC
dimension(l*w*h):3800*2900*2500mm
key selling points:Multifunctional
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Motor, Gearbox, Spindle
Product name:Cnc Router Wood Carving Machine
Function:Wood Acylic Plywood MDF Engraving
Working area:1200x2400x300mm

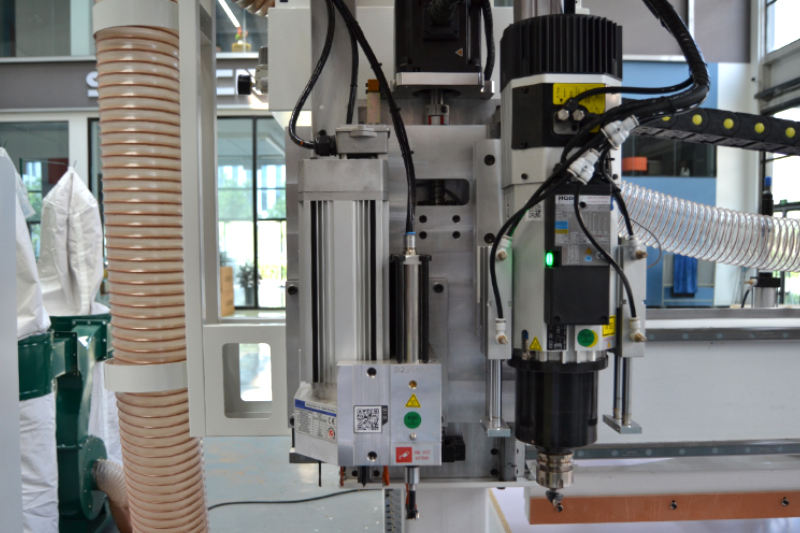

Spindle:HQD 9kw Air-cooled Spindle
Motor and driver:Syntec 1kw AC servo motor and driver
Table surface:vacuum table with pump
Inverter:Delta 11kw Inverter
Guide rail:25mm Square Guide Rail
Control system:Syntec 60WE bus Control System
After-sales Service Provided:24 Hours Online Service+Engineers
Selling Units:Single item
Single package size:380X290X250 cm
Single gross weight:1600.000 kg
