Zinc reference electrode

Types

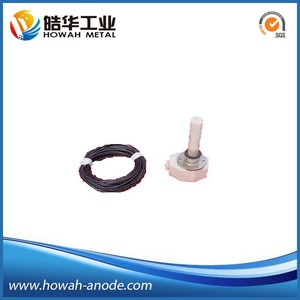

A zinc reference electrode is a type of electrode that provides a stable and known potential for measuring and monitoring the electrochemical processes.

This is mainly used in cathodic protection systems where structures get protected from corrosion. It consists of a zinc metal rod or wire immersed in an electrolyte solution such as saturated zinc sulfate or zinc chloride.

Some of the zinc reference electrodes are,

• Standard zinc reference electrode

  The standard copper zinc reference electrode is a type of galvanic cell that consists of copper and zinc metals submerged in copper sulfate solution.

  It provides a constant potential to be used as a reference point in the electrochemical measurements. It gets used to measure the potential of other electrodes, ensuring accuracy and reliability in cathodic protection systems.

• Saturated zinc sulfate reference electrode

  The saturated zinc sulfate reference electrode also known as a saturated zinc sulfate solution, is a stable and reliable electrode often used in mineral and geochemical studies.

  It consists of zinc metal in a saturated zinc sulfate solution, which provides a constant and reproducible electrical potential for measurement.

• Zinc chloride reference electrode

  The zinc chloride reference electrode is used to maintain constant electrical potential in electrochemical experiments. It consists of zinc metal immersed in a zinc chloride solution.

  This type of electrode is primarily used in cathodic protection systems to prevent corrosion in pipelines, storage tanks, and other metal structures.

• Ag-Zn reference electrode

  The silver-zinc reference electrode is made of zinc and silver in a saturated electrolyte solution. It gets used in cathodic protection to measure the electrochemical potential of a metal structure.

Function, Feature

The primary function of the zinc electrode is to provide a stable reference potential that allows other electrode potentials to get measured accurately. Some of the features include:

• Corrosion resistance: Zinc has high resistance to corrosion, which makes it suitable for use in cathodic protection systems.
• Ease of installation: Zinc reference electrodes are easy to install and require low maintenance as compared to other reference electrodes.
• Durability: The electrodes are durable and provide long-term reliability in harsh environments like marine and industrial settings.
• The constant potential: The potential of the zinc reference electrode stays relatively constant over time, which ensures accurate voltage measurements.
• Size and portability: Zinc reference electrode comes in various sizes and can be portable for field measurements or permanent installations.
• Temperature compensation: These electrodes can compensate for temperature variations to provide consistent results.

Scenarios

Zinc battery or zinc rod gets used in various scenarios where accurate electrochemical measuring and monitoring are necessary to prevent corrosion.

• Pipelines

  The electrodes provide a stable reference point for measuring the electrochemical potential of buried pipelines, helping to ensure effective cathodic protection and prevent corrosion.

• Marine structures

  In marine environments, zinc reference electrodes get used to monitor the cathodic protection of ships, docks, and offshore platforms due to the aggressive nature of saltwater.

• Storage tanks

  Zinc reference electrodes help measure and maintain the potential of the tank bottoms. This prevents corrosion in above-ground and underground storage tanks.

• Reinforced concrete

  Cathodic protection systems with zinc reference electrodes are used in reinforced concrete structures to prevent corrosion of steel rebar due to moisture and electrolyte exposure.

• Industrial coating systems

  In areas with coatings, zinc reference electrodes help monitor the effectiveness of cathodic protection and ensure that the coatings remain intact and prevent corrosion.

• Offshore oil rigs

  There are zinc reference electrodes in manufacturing offshore oil rigs because of the harsh marine environment. This helps in measuring direct current.

How To Choose

Selecting the right zinc reference electrode depends on various factors like the environment, the structure being protected, and the project requirements.

• Environmental conditions

  The kind of environmental conditions will influence the choice of zinc reference electrode and zinc solution. In marine environments, a zinc-sulfate reference electrode provides better stability and higher potentials.

• Type of structure

  The kind of structure that needs cathodic protection will determine the kind of zinc reference electrode to be used. For example, pipelines may require portable zinc electrodes, while large storage tanks may need a permanent installation.

• Accuracy and reliability

  The zinc electrodes should provide stable and accurate potentials to ensure effective cathodic protection.

• Ease of installation

  It is important to consider the zinc reference electrode that is portable, easy to install, and maintain, especially in hard-to-access areas.

• Project requirements

  These may be the duration of the project, budget, and installation type (permanent or temporary). These will all affect the electrode selection.

• Durability

  Select an electrode made of high-quality materials and resistant to wear and tear. This will ensure that the electrode lasts for the entire lifespan of the cathodic protection system.

Q&A

Q1: What is the purpose of a zinc reference electrode?

A1: It is used to measure the potential of cathodic protection systems to prevent corrosion in structures like pipelines.

Q2: How does the zinc reference electrode work?

A2: It provides a stable electric potential that acts as a benchmark for other electrodes, allowing accurate measurements in the environment.

Q3: What are the key features of the zinc reference electrode?

A3: These include corrosion resistance, durability, ease of installation, and constant electrical potential for accurate measurements.

Q4: Where are zinc reference electrodes typically used?

A4: They are commonly used in marine structures, pipelines, storage tanks, and reinforced concrete to monitor and maintain effective cathodic protection.
