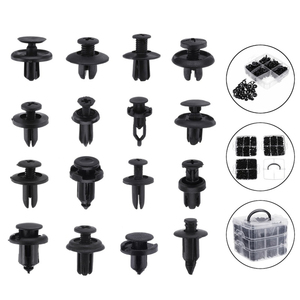

Types of Trim Panel Clips
A trim panel clip is a small but vital fastening component in automotive manufacturing and repair, used to securely attach interior and exterior trim panels. These clips ensure proper alignment, reduce rattling, and maintain the aesthetic integrity of vehicle surfaces. Understanding the different types of trim panel clips can help with both installation and replacement processes.
Trim panel clips come in various designs, each tailored for specific materials, accessibility, and load-bearing requirements. Below is a detailed breakdown of common clip types and their applications:
Christmas Tree Clips
Also known as push-type or Christmas tree fasteners, these clips feature a tapered body with multiple ridges or barbs that grip the mounting surface firmly once inserted into a hole. They are commonly used in plastic or fabric-based trim installations.
Advantages
- Easy to install and remove
- Inexpensive and widely available
- Secure fit without tools
Limitations
- Limited strength for heavy loads
- Can wear out over time
- Might break if forced too hard
Best for: Door panels, wheel arch linings, dashboard trim pieces
Push Rivets
These plastic fasteners have a flat head and a cylindrical or square body that expands slightly after insertion to hold the trim against a surface. Push rivets provide a clean finish while maintaining functionality.
Advantages
- Quick installation without tools
- Flush mount design for aesthetics
- Good for temporary or semi-permanent use
Limitations
- Less durable than threaded options
- Not ideal for high-stress areas
- May loosen under vibration
Best for: Door sills, engine cover panels, floor mats
Speed Clips
Designed in U-shape or C-shape configurations, speed clips are often made from metal or reinforced plastic and are intended for use with threaded studs or bolts. They offer a secure attachment point for heavier or frequently accessed trim components.
Advantages
- Strong and reliable connection
- Reusable and adjustable
- Ideal for frequent disassembly
Limitations
- Requires additional hardware (bolt/nut)
- Slightly more complex installation
- Higher cost compared to basic clips
Best for: Bumpers, side moldings, rear spoilers
Scrivets
Combining the features of screws and rivets, scrivets have a screw-like threaded body with an expandable flared head. This allows them to be screwed into place and then expanded to lock the trim securely.
Advantages
- Secure fastening without pre-threading
- Removable and re-usable
- Versatile for different thicknesses
Limitations
- Installation requires special tooling
- More expensive than standard clips
- Potential for stripping if overtightened
Best for: Electrical harnesses, wiring covers, removable trim panels
Clip Nuts
Similar to speed clips but featuring internal threading, clip nuts allow for bolted connections to trim parts. They are especially useful when a strong, threaded attachment point is needed without welding or drilling threads directly into the panel.
Advantages
- Strong threaded attachment
- Easy to replace or adjust
- Works with standard bolts/screws
Limitations
- Requires access to both sides for installation
- May protrude from the surface
- Higher profile than flush-mounted clips
Best for: Underbody shields, structural trim pieces, mechanical covers
Hinge Pins
These specialized clips are designed to allow rotational movement between two connected trim pieces. With a smooth cylindrical body and a head on one end, hinge pins facilitate folding or swinging motions.
Advantages
- Simple and effective hinge mechanism
- No moving parts to fail
- Cost-effective solution for movable trim
Limitations
- Limited to light-duty applications
- Can become loose over time
- May require periodic maintenance
Best for: Glove box doors, console lids, fold-down sun visors
Self-Tapping Screws
Unlike traditional fasteners, self-tapping screws cut their own threads during installation. Typically made from hardened steel, they are ideal for securing trim panels where durability and strength are critical.
Advantages
- Strong, permanent fastening
- No need for pre-drilled threads
- Resistant to vibration loosening
Limitations
- Installation may cause material stress
- Difficult to remove without damage
- More invasive than clip-style fasteners
Best for: Engine covers, underbody panels, structural trim
| Type | Strength | Installation Ease | Reusability | Common Applications |
|---|---|---|---|---|
| Christmas Tree Clips | Fair | Excellent | Fair | Door panels, dashboards, wheel liners |
| Push Rivets | Fair | Excellent | Good | Engine covers, door sills, floor mats |
| Speed Clips | Excellent | Good | Excellent | Bumpers, side moldings, spoilers |
| Scrivets | Good | Good | Good | Electrical harnesses, wire covers |
| Clip Nuts | Excellent | Good | Excellent | Underbody shields, mechanical covers |
| Hinge Pins | Fair | Good | Excellent | Glove boxes, console lids, sun visors |
| Self-Tapping Screws | Excellent | Fair | Fair | Structural panels, underbody components |
Expert Tip: When replacing trim panel clips, always inspect surrounding holes and panels for wear or cracking. Using the wrong clip type can lead to misalignment, rattles, or even premature failure of interior components.
Caution: Avoid forcing clips into mismatched holes, as this can cause deformation or breakage. Always match clip size and type to the specific application for optimal performance and longevity.
Specifications and Maintenance of Trim Panel Clips
Trim panel clips are essential components in automotive interiors and various other applications where panels need to be securely fastened without the use of permanent fixtures like screws or adhesives. Understanding their specifications and how to maintain them ensures long-term functionality and aesthetic integrity.
Key Specifications to Consider
When selecting trim panel clips for your specific application, several critical specifications must be evaluated to ensure compatibility, durability, and performance:
Material Composition
Trim panel clips are typically manufactured from materials that balance flexibility with strength. The most common material is nylon, known for its excellent heat resistance and ability to withstand temperature fluctuations without warping or melting.
In more demanding environments, such as areas exposed to moisture or high mechanical stress, steel or stainless steel clips may be used. These offer superior corrosion resistance and structural rigidity, making them ideal for industrial or marine applications.
Size Variations
The size of a trim panel clip plays a crucial role in determining its suitability for different parts of a vehicle or structure. For example, door panel clips tend to be larger and sturdier than those used for securing interior dash components or small plastic covers.
Manufacturers design clips in a variety of diameters, lengths, and head styles to accommodate different panel thicknesses and installation locations, ensuring secure retention while allowing for easy removal when necessary.
Type and Application
There are numerous types of trim panel clips, each tailored for a specific function. Common examples include push-in clips, screw-in clips, T-panel clips, and upholstery fasteners. Each type serves a unique purpose based on the panel's location and material.
Push-in clips are widely used for interior plastic panels due to their ease of installation, while screw-in variants provide extra security in high-vibration zones. Upholstery clips are specifically designed to hold fabric layers together without damaging the material surface.
Load-Bearing Capacity
While trim panel clips are not typically load-bearing in the traditional sense, they do have varying degrees of holding strength depending on their construction and size. This specification is particularly important when securing heavier panels or in dynamic environments where vibration and movement are present.
Nylon clips are suitable for lighter interior applications, whereas metal-based clips can support slightly heavier loads and resist wear under repeated use. Always verify the recommended usage conditions provided by the manufacturer before installation.
| Specification | Importance | Selection Tips |
|---|---|---|
| Material Type | High | Choose nylon for general use; opt for steel or stainless steel in humid or high-stress environments |
| Clip Size | High | Select based on panel thickness and mounting hole dimensions to ensure snug fit and retention |
| Installation Type | Medium | Use push-fit clips for quick assembly and screw-in versions for added stability |
| Retention Strength | Medium | Match clip strength to panel weight and environmental factors (e.g., vibration, temperature) |
Essential Maintenance Practices
Proper maintenance of trim panel clips helps preserve both the appearance and functional performance of interior panels, reducing the risk of breakage and costly repairs:
Important: Never force a clip into a hole if it doesn't fit easily. Forcing can damage both the clip and the panel. Always confirm correct clip type and size before installation. Additionally, consider replacing all clips in a particular area at once if multiple show signs of wear, to maintain uniformity and reliability across the panel system.
How to Choose Trim Panel Clips
Selecting the right trim panel clips is essential for maintaining your vehicle's interior aesthetics and structural integrity. Properly chosen clips ensure secure attachment of trim panels while allowing for easy removal when necessary.
Size Matters: Precision Fitment
The physical dimensions of trim panel clips play a critical role in both functionality and longevity. Choosing clips that match the design specifications of your vehicle’s trim system prevents damage to both the clip and the panel it secures.
- Oversized clips can cause stress fractures in plastic trim pieces
- Undersized clips will not provide sufficient retention force
- Measure existing clips or consult factory service manuals for exact sizing
Measurement tip: Pay attention to both shaft length and head diameter when matching replacement clips
Material Selection: Balancing Durability and Compatibility
The material composition of trim panel clips significantly affects their performance characteristics and service life. Different materials offer distinct advantages depending on environmental conditions and mechanical requirements.
- Steel clips: Maximum strength but prone to corrosion in humid environments
- Nylon/plastic clips: Corrosion-resistant with moderate strength ratings
- Composite blends: Offer enhanced durability while resisting UV degradation
- Flexible polymers: Ideal for vibration-prone applications
Key consideration: Plastic clips maintain flexibility over time better than aged rubber equivalents
Vehicle-Specific Compatibility
Trim panel clip systems vary significantly between manufacturers and model years. Using application-specific clips ensures proper fitment and prevents damage from improper installation attempts.
- Consult parts catalogs using your VIN for accurate selection
- Verify compatibility with body style (sedan, coupe, SUV)
- Confirm door panel vs. dash vs. quarter panel requirements
- Check for special features like integrated wiring channels
Pro tip: Some luxury vehicles use proprietary clip designs requiring OEM replacements
Quantity Planning and Inventory Management
Accurately calculating required quantities helps avoid project delays and unnecessary repeat purchases. Consider both immediate needs and potential future requirements during the purchasing process.
- Typical door panels require 8-12 clips per side
- Dash assemblies may need 15-25 clips depending on complexity
- Add 10-15% extra for learning curve breakage
- Keep surplus clips for future maintenance needs
Cost-saving strategy: Larger quantity packages often offer significant unit price discounts
Installation Characteristics
Modern trim panel clip designs incorporate various features to streamline the installation process while maintaining secure retention. Understanding these mechanisms helps prevent damage during assembly.
- Self-locking clips have audible click confirmation
- Multi-piece systems allow separate panel mounting
- Tapered entry designs reduce insertion force
- Directional barbs prevent accidental disengagement
Expert advice: Use plastic pry tools to avoid damaging retention tabs during removal
Mechanical Performance Requirements
Trim panel clips must withstand various mechanical stresses throughout their service life. Selecting appropriately rated components ensures long-term reliability under real-world conditions.
- Door panels require vibration-resistant designs
- Exterior applications demand UV and temperature resistance
- High-torque clips needed for heavy gauge panels
- Impact-absorbing designs protect during minor collisions
Performance metric: Quality clips maintain retention force through 10,000+ thermal cycles
Buying Strategy: When replacing trim clips during interior restoration projects, consider upgrading to reinforced polymer versions even if original equipment was standard plastic. The marginal cost increase often provides significant long-term benefits through reduced replacement frequency.
| Application Type | Recommended Material | Retention Force | Environmental Resistance |
|---|---|---|---|
| Interior dash panels | High-impact plastic | Moderate | UV protection coating |
| Door panel liners | Flexible polymer | High | Vibration damping |
| Exterior moldings | Reinforced nylon | Very high | Weatherproof sealant |
| Under-hood components | Heat-resistant composite | Extreme | Thermal stability to 250°F |
Supplier Evaluation: Look for suppliers who provide detailed technical specifications including tensile strength, durometer ratings, and temperature tolerance ranges. Reputable vendors often include installation guides and troubleshooting tips with their products.
DIY Guide to Replacing Trim Panel Clips
Replacing interior trim panel clips is a simple yet essential maintenance task that can be completed at home without professional experience. These small fasteners play a crucial role in keeping your vehicle’s interior panels securely in place and looking neat. When clips break or wear out, panels may rattle, sag, or even fall off entirely.
Safety Note: Always work carefully around plastic panels and delicate interiors. Avoid applying excessive force when prying off trim to prevent cracking or warping the components.
Step-by-Step Replacement Process
- Gather the Right Tools
- A trim removal tool (also known as a panel clip remover) is ideal for safely removing interior panels without damaging them.
- If you don’t have one, a flathead screwdriver can work in a pinch—just use it gently.
- Have pliers on hand for removing stubborn clips or inserting new ones.
- A small rubber mallet or hammer may be needed to tap new clips into place securely.
- Identify the Damaged Clip
- Visually inspect the affected trim panel and surrounding area to locate which clip or fastener is broken, missing, or loose.
- Pay attention to any rattling noises or uneven gaps between panels—they often point to a faulty clip.
- Remove the Trim Panel Safely
- Insert the trim removal tool or flathead screwdriver beneath an edge of the panel.
- Gently pry upward, working slowly around the edges to release the clips one by one.
- Be especially careful near corners and seams where clips are more likely to break if forced too hard.
- Locate and Remove the Faulty Clip
- Once the panel is removed, find the exact location of the damaged or missing clip.
- If replacing a clip, remove any remnants using pliers or a small pick tool.
- Clean the mounting hole with a cloth or compressed air to ensure a secure fit for the new clip.
- Install the New Clip
- Align the replacement clip with the corresponding hole in the underlying structure.
- Gently press it in by hand until it starts to seat.
- Use a small hammer or mallet to lightly tap the clip into place until fully seated and flush.
- Ensure the clip snaps securely into position and doesn’t wobble or protrude awkwardly.
- Reinstall the Trim Panel
- Position the trim panel back over the installed clip and surrounding mounting points.
- Press firmly but evenly along all edges to engage each clip.
- Double-check that the panel aligns properly with adjacent components and sits flush against the surface.
| Stage | Key Actions | Potential Mistakes | Recommended Tools |
|---|---|---|---|
| Preparation | Selecting proper tools, locating damaged clip | Using incorrect tools that damage the panel | Trim removal tool, flashlight |
| Panel Removal | Gentle prying, working around edges | Applying too much force causing cracks | Flathead screwdriver, gloves |
| Clip Replacement | Proper alignment, tapping into place | Misalignment or incomplete seating | Pliers, small hammer |
| Installation | Even pressure, checking alignment | Missing clips or improper fit | None required |
Pro Tip: Keep spare trim panel clips in your car care kit. They come in various types (push pins, twist locks, etc.), so having a few generic replacements can save time during future repairs.
When to Seek Professional Help
While most interior trim panel clip replacements are straightforward DIY jobs, some situations require expert assistance. For example:
- Door Trim Panels: These often contain wiring for power windows, door locks, and speakers. Mishandling can lead to electrical issues.
- Engine Cover Trim Clips: Located near hot engine components, these may require specific tools or safety precautions to replace safely.
- High-End Interiors: Luxury vehicles often feature complex trim systems with integrated lighting or sensors—best handled by trained technicians.
If you're unsure about the process or concerned about damaging expensive parts, consulting with a professional interior car specialist is always a wise choice.
Trim Panel Clips: Frequently Asked Questions
Trim panel clips are manufactured using a variety of materials tailored to specific performance needs, environmental conditions, and application requirements. The two most commonly used materials are plastic and metal:
- Plastic Trim Clips: These are the most widely used in automotive interiors and exteriors due to their lightweight nature, resistance to corrosion, and cost-effectiveness. Common plastics include nylon and ABS (Acrylonitrile Butadiene Styrene), which offer high tensile strength, heat resistance, and durability. Plastic clips are ideal for fastening interior components like door panels, dashboards, and headliners.
- Metal Trim Clips: Used in heavy-duty applications where structural integrity and load-bearing capacity are crucial. Materials such as steel and stainless steel provide superior strength, impact resistance, and longevity. Metal clips are often found in commercial vehicles or areas exposed to frequent mechanical stress, vibrations, or extreme weather conditions.
Some advanced designs also incorporate hybrid materials—such as glass-filled nylon or reinforced polymers—to combine the benefits of both worlds: high strength with low weight and excellent wear resistance.
There is no fixed number of trim panel clip sizes since manufacturers produce them in a broad range of dimensions and configurations to meet diverse industry standards and vehicle-specific requirements. However, they generally fall into several common size categories:
- Miniature Clips: Typically used for securing small interior trim pieces like air vent covers, switch bezels, and speaker grilles.
- Standard Clips: These are the most common and are used for door panels, seat belt covers, and floor console trims.
- Heavy-Duty Clips: Larger clips designed for exterior applications such as bumpers, side moldings, and fender liners where additional strength and retention force are needed.
In addition to physical size, trim clips also vary by design features such as push-in, screw-in, twist-lock, and snap-fit mechanisms. This diversity ensures compatibility across different vehicle models, trim types, and installation methods.
While some trim panel clips are marketed as “universal” and can fit a wide range of vehicles, true universality is limited. Here’s why:
- Vehicle-Specific Designs: Many automakers engineer proprietary clip systems that match precise mounting points, hole sizes, and retention forces. For example, luxury brands like BMW or Mercedes-Benz often use specialized clips not interchangeable with those from other manufacturers.
- Universal Clips: These are engineered to be compatible with multiple makes and models. They usually feature adjustable heads or flexible prongs that adapt to various hole diameters and depths. Universal clips are popular among DIY mechanics and repair shops for general maintenance and replacements.
- Aftermarket Solutions: Some third-party suppliers create multi-fit kits containing various clip types to cover a broader range of applications.
To ensure optimal performance and longevity, it's always recommended to verify the clip type and size against your vehicle’s specifications or consult a repair manual before installation.
Yes, trim panel clips can be reused, but their suitability depends on several critical factors:
- Condition After Removal: If clips are carefully removed without damage—no cracks, bends, or deformation—they may be reused. Using proper removal tools (like trim panel removers or flathead screwdrivers wrapped in tape) helps prevent breakage.
- Material Type: Metal clips tend to be more durable and reusable compared to plastic ones, which can become brittle over time or after repeated use. High-quality plastic clips made from materials like nylon may withstand more handling than standard polypropylene variants.
- Retention Strength: Over time, plastic clips may lose their grip due to wear or fatigue. If a reused clip doesn't securely hold the trim in place, it should be replaced to avoid rattles or potential detachment while driving.
- Compatibility: Reused clips must match the exact fastening point geometry and load requirements. Mismatched clips can lead to poor fitment or damage to surrounding panels.
In professional settings, especially during major repairs or restorations, replacing old clips with new ones is often advised to ensure secure installation and maintain factory-like finish quality.
