Roller hearth kilns

Types of roller hearth kilns

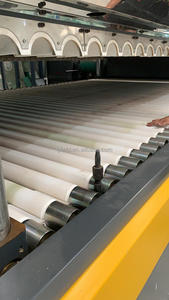

A roller hearth kiln is a continuous kiln that uses a roller conveyor to transport products through the heating element. Small ceramic items are commonly fired in roller kilns. The roller conveyor's speed is controlled to adjust the duration of the heating and cooling cycles for each item. Roller hearth kilns are perfect for mass production since they provide a constant production ratio. They are designed for heavy loads, and the hearth can be built of any material.

According to the heating source, roller kilns can be divided into the following four categories:

• Electric roller hearth kiln: An electric roller hearth kiln utilizes electrical energy as its heating source. Because of its effective temperature control and even heat distribution, it is widespread in industries demanding precise firing requirements and fine quality control, such as porcelain, stoneware, and ceramic glazes.
• Gas roller hearth kiln: Gas roller hearth kilns employ natural gas or propane as their primary fuel. They are suitable for high-volume production and offer a cost-effective firing solution. The gas roller hearth kiln is commonly used for pottery, sanitary ware, and tableware, among other things.
• Coal roller hearth kiln: The coal roller hearth kiln is usually tunnel kilns, which are suitable for large-scale production and long firing periods. Coal roller hearth kilns are more environmentally intrusive and require regular fuel and oxygen adjustment.
• Hybrid roller hearth kiln: Hybrid roller hearth kilns combine two or more fueling opportunities, such as gas and oil or gas and electricity. Depending on the technical needs of production, they are suitable for a variety of firing conditions and production occasions.

Another way to classify roller hearth kilns is based on airflow and pressure. Additionally, according to the shape of the roller kiln furnaces, such as lifting roller furnaces, shifting roller altitude furnaces, and changing gravity roller furnace tunnels, they can be categorized by the flowing medium bubbling in the furnace.

According to the construction mode, the kiln can also be divided into chamber roller hearth kilns and tunnel roller hearth kilns. The roller hearth is a continuous kiln with a wide input/output range. In mass production, chamber roller hearths are appropriate for large-scale production. Tunnel roller hearths with a consistent production ratio are useful. In some circumstances, due to the kiln's easy adaptability to changing output amounts, it can also be economical to use at a reduced output level.

Specifications and maintenance of roller hearth kilns

Specifications of roller-hearth kilns

• Maximum temperature

  Roller hearth kilns can attain different maximum temperatures depending on the construction and intended use. The typical maximum temperature for roller hearth kilns is between 1200 and 1450 degrees Celsius. For instance, ceramics and glass industries utilize roller-ceramic hearth kilns that can reach up to 1350 degrees Celsius to strengthen and transform raw materials into vibrant, translucent, and tough ceramics and pottery.

• +Length and width

  A roller hearth kiln's length and width can vary significantly, often depending on the size and capacity of the items it is intended to fire. The range for the width is from 1 meter to 3 meters, and the length ranges from 5 to 30meters and beyond. For instance, industrial roller hearth kilns may be as lengthy as 24m and even upto 30m while having a sizable width of 3m in order to process big batches of ceramic items or porcelain at once.

• Firing rate

  The speed at which items are fired in a roller hearth kiln is influenced by a number of variables, including the configuration of the kiln, the temperature it reaches, and the type of material being processed. The firing rate of a roller hearth kiln typically falls between 0.5 and 2 meters per hour. A roller kiln firing rate of 1.8m/h indicates the temperature zones for different materials. The quick production of goods is one of the key benefits of firing rates like these in industrial settings.

Maintenance of roller hearth kilns

Routine maintenance is necessary for roller hearth kilns to keep them in excellent shape, ensure their long-term use, and reduce downtime brought on by repairs. Some regular upkeep tasks are as follows:

• If the kiln's exterior and interior surfaces are routinely cleaned of any residue, dust, or debris, they will remain in good shape for longer. To stop the formation of any deposits that might bring about corrosion or overheating, it is crucial to make cleaning procedures compatible with the kiln's design and operating conditions.
• Roller kilns typically have high temperatures and long operating hours. Therefore, components that routinely rub against one another are bound to wear out. To maintain the kiln's smooth operation and avoid unnecessary breakdowns, it is essential to examine and replace worn-out parts like bearings, seals, and rollers regularly. Lubricant application to moving parts should also be done in line with the manufacturer's instructions.
• Periodic inspections are also equally vital as cleaning. It is critical to inspect the entire kiln system thoroughly for gas leakages, electric connections, insulation, heating elements, etc., regularly. For signs of damage or wear, ensure all connections, fittings, and components are intact.

Uses of roller hearth kilns

Roller hearth kilns are multi-tasking real workhorses in industries that require heat treatment for various materials and applications. They are primarily used to fire ceramics and porcelain, such as chinaware, tableware, sanitary ware, architectural ceramics, and porcelain electrical insulators. The continuous operation of roller hearth furnaces makes them particularly suitable for treating these high-volume products. However, their applications are not restricted to ceramics alone.

Roller hearth kilns are also widely used in the metal industry for heat treatment of various metal parts, including hardening, tempering, annealing, oxidizing, and phosphating. Something worth mentioning about roller kilns is how energy-efficient they are, making them ideal for industries that require high heating but also look for ways to be cost-effective.

Glass manufacturers have also adopted the technology of the roller hearth kiln. Glass products like float glass, architectural glass, stained glass, and fiberglass are all produced in roller hearth furnaces. One more area where roller hearths are primarily used in production lines is the food industry. Food containers are generally produced in roller hearth furnaces using the hot setting process. This process involves high heat being applied to food containers to improve their quality and durability.

How to choose roller hearth kilns

When buying roller hearth kilns for sale, buyers should look for models with excellent energy efficiency. Such models will significantly lower the operation costs of a business. Moreover, the capacity and dimensions of the roller hearth kilns should align with production requirements. Also, the maximum temperature and heating rate of a roller kiln is an important specification that buyers should not overlook. Generally, different materials have varying firing needs. Buyers should get roller kilns that match the firing needs of their material.

Consider the design and layout of the roller kilns when purchasing. If there's a need to expand or modify production lines in the future, it is essential to get roller kilns that offer integration possibilities. The automation and control features of roller kilns can impact productivity as well as labor requirements. For this reason, buyers should get a kiln with advanced automation and precise control systems. Also, the reliability and maintenance requirements of a roller kiln are determined by its design. For this reason, buyers should get a kiln from reputable manufacturers known for their reliable equipment.

Finally, buyers should get roller kilns that have the required safety features. Such features include emergency shut-off systems, proper ventilation, and insulation. Also, if the buyer will be operating the roller kiln, they should receive adequate training to ensure they operate the machine properly and safely.

FAQ

Q1: What are the current trends in roller hearth kiln technology?

A1: The trend in roller kiln technology is to reduce energy consumption and improve efficiency by utilizing better insulation materials, regenerative heating, and waste heat recovery systems. Increasingly intelligent control systems are also enhancing the efficiency of roller kilns.

Q2: What is the lifespan of a roller hearth kiln?

A2: With proper maintenance, roller hearth kilns can last 15-20 years or even longer. The key is regular inspection and timely repair of rollern hearth, refractories, sealing materials, and other components.

Q3: Can a roller hearth kiln be modified to increase its production capacity?

A3: It is possible to modify certain parts of a roller hearth kiln, such as the heating system and insulation, to increase its efficiency and capacity. However, any modifications should be designed and carried out by professional engineers to ensure safety and stability.

Q4: Is automated control of the roller hearth kiln possible?

A4: Modern roller kilns are often equipped with automated control systems that allow for the automation of production processes, including temperature control, roller speed adjustment, and more. Such automated systems can enhance precision, stability, and efficiency in production.
