Types of Origin Sensors for Lada Vehicles
An origin sensor for Lada is a critical component within the vehicle's engine management system, responsible for monitoring various mechanical and environmental parameters to ensure optimal performance, fuel efficiency, and emissions compliance. These sensors provide real-time data to the Engine Control Unit (ECU), enabling precise adjustments to engine operations under varying driving conditions.
Oxygen (O2) Sensor – Catalytic Converter Monitoring
The Lada Niva 4x4 O2 sensor is one of the most commonly used types in Lada models. It measures the oxygen levels in the exhaust gases before and after they pass through the catalytic converter. This dual placement allows the ECU to assess both combustion efficiency and catalytic converter effectiveness.
- Function: Helps maintain an ideal air-fuel ratio by informing the ECU when to adjust fuel injection.
- Placement: Located on the exhaust manifold (upstream) and just after the catalytic converter (downstream).
- Common Issues: Carbon buildup, aging elements leading to inaccurate readings.
Tip: Replacing faulty O2 sensors can significantly improve fuel economy and reduce harmful emissions in older Lada models.
Throttle Position Sensor (TPS)
The throttle position sensor (TPS) monitors the angle of the throttle butterfly valve, which directly correlates with driver input. By sending voltage signals proportional to throttle opening, this sensor enables the ECU to determine how much air is entering the engine at any given time.
- Function: Facilitates smooth acceleration and idle control by coordinating fuel delivery with airflow.
- Signs of Failure: Jerky acceleration, poor idle, and sudden stalling.
- Maintenance Tip: Periodic cleaning or recalibration may be necessary after installation or repairs.
Crankshaft Position Sensor (CKP)
The crankshaft position sensor (CKP) detects the rotational speed and exact position of the crankshaft. This information is crucial for determining ignition timing and synchronizing fuel injector operation across all cylinders.
- Function: Ensures spark plugs fire at precisely the right moment for maximum power and efficiency.
- Failure Symptoms: No-start condition, misfires, and intermittent stalling.
- Location: Typically mounted near the crankshaft pulley or flywheel.
Warning: A malfunctioning CKP sensor can cause serious drivability issues and should be replaced immediately upon detection of fault codes.
Camshaft Position Sensor (CIP)
The camshaft position sensor (CIP) tracks the position of the camshaft(s), which control the opening and closing of the engine’s intake and exhaust valves. This data helps the ECU manage variable valve timing (VVT) systems, where applicable, to enhance performance and fuel economy.
- Function: Enables sequential fuel injection and ignition timing precision.
- Performance Impact: Improper CIP function can lead to rough idling and reduced engine responsiveness.
- Diagnosis: Often associated with specific diagnostic trouble codes like P0340–P0344.
Oil Pressure Sensor Switch
The oil pressure sensor switch continuously monitors the pressure of engine oil circulating through the lubrication system. This vital sensor alerts the driver via a dashboard warning light if oil pressure drops below safe levels, helping prevent catastrophic engine damage.
- Function: Provides real-time feedback to the instrument cluster regarding engine oil pressure status.
- Failure Risks: A faulty sensor may give false readings, potentially masking a dangerous low-pressure situation.
- Maintenance: Regular inspection during oil changes is recommended to ensure proper functionality.
| Sensor Type | Primary Function | Key Performance Benefit | Typical Location | Common Failure Signs |
|---|---|---|---|---|
| O2 Sensor | Monitors exhaust oxygen levels | Optimizes air-fuel mixture | Exhaust manifold and post-catalytic converter | Poor fuel economy, check engine light |
| Throttle Position Sensor (TPS) | Detects throttle valve position | Smooth acceleration response | Beneath the air intake manifold | Jerkiness, stalling, erratic idling |
| Crankshaft Position Sensor (CKP) | Tracks crankshaft speed and position | Precise ignition timing | Near crankshaft pulley or flywheel | No-start, misfires, stalling |
| Camshaft Position Sensor (CIP) | Monitors camshaft position | Improved VVT coordination | On or near cylinder head | Rough idling, poor performance |
| Oil Pressure Sensor Switch | Measures engine oil pressure | Prevents engine seizure | Engine block or oil filter housing | Faulty warning light, false readings |
Expert Tip: Always use OEM-quality replacement sensors for Lada vehicles to ensure compatibility and long-term reliability. Aftermarket parts may offer cost savings but could compromise sensor accuracy and overall engine performance.
Specifications and Maintenance of Origin Sensor for Lada Vehicles

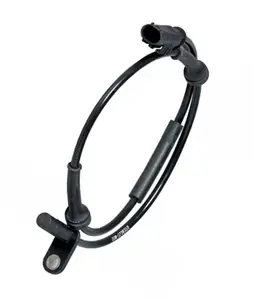

The origin sensor, commonly referred to as the crankshaft position sensor or ABS sensor depending on its application in a Lada vehicle, plays a crucial role in engine performance, ignition timing, and anti-lock braking system functionality. Understanding the technical specifications and proper maintenance practices ensures optimal operation and longevity of these sensors.
Key Technical Specifications for Lada Origin Sensors
Lada vehicles are known for their rugged engineering, but like any mechanical system, they rely heavily on accurate sensor data. The specifications below apply broadly across various Lada models, though individual variations may exist based on model year, engine type, and specific sensor location (e.g., crankshaft, camshaft, or wheel speed sensors).
Voltage Requirements
Origin sensors monitor voltage signals from critical components such as ignition coils. At idle, the expected voltage range is typically between 0.5 and 1 volt. During acceleration, this should increase smoothly without erratic spikes or drops, staying within ±0.5 volts of the average level.
Consistent voltage output ensures accurate signal interpretation by the Engine Control Unit (ECU), which directly affects fuel injection timing, spark plug firing, and overall engine efficiency.
Resistance Measurement
Checking resistance helps identify internal faults such as short circuits or open circuits. For most Lada ignition coil sensors, resistance should measure between 0 and 2 ohms across the terminals.
If readings exceed this range significantly, it indicates wear or damage that could lead to misfires, rough idling, or failure to start. Regular multimeter checks during routine service can prevent unexpected breakdowns.
Pulses per Revolution
The crankshaft position sensor generates electrical pulses corresponding to the rotation of the crankshaft. These pulses help the ECU determine engine speed and position with high precision.
In Lada engines, typical pulse rates range from 1 to 2 pulses per full crankshaft revolution. Any deviation from this norm may suggest issues with the tone ring or sensor alignment, requiring recalibration or replacement.
Waveform Analysis
Using an oscilloscope to monitor waveforms allows for advanced diagnostics of camshaft and crankshaft sensors. The waveform should follow a consistent pattern dictated by the engine's design and sensor specifications.
Irregularities like flattened peaks or inconsistent intervals often point to sensor malfunction, timing belt slippage, or debris interfering with signal generation. This method is especially useful for diagnosing intermittent problems not caught by basic voltage/resistance tests.
| Specification | Criticality | Maintenance & Diagnostic Notes |
|---|---|---|
| Magnetic Field Strength | High | Must remain within manufacturer-specified limits. Weak magnetic fields result in poor signal quality and inaccurate timing control. Use a gauss meter for testing if available. |
| Signal Frequency | Medium | Should correspond linearly with engine RPM. Inconsistent frequency patterns indicate sensor wear or tone ring damage. Verify using a digital tachometer or scan tool. |
| Operating Temperature Range | Medium | Lada sensors generally operate safely between -30°C and +120°C. Exceeding these limits due to overheating or extreme cold can degrade sensor materials or cause signal drift. |
Recommended Maintenance Practices
While Lada sensors are built to endure tough conditions, regular maintenance is essential to ensure long-term reliability and avoid costly repairs down the line. Below are key best practices:
Important: If one sensor shows signs of failure or requires replacement, inspect all related sensors and components in the same system. Mismatched or degraded sensors can create imbalance in readings, leading to drivability issues and potential safety hazards.
How to Choose Origin Sensor for Lada
Selecting the correct origin sensor (also known as a crankshaft position sensor or engine speed sensor) for your Lada is crucial for ensuring proper engine operation, fuel efficiency, and performance. The origin sensor plays a vital role in determining engine timing by monitoring the position or rotational speed of the crankshaft.
Vehicle Make and Model Compatibility
The first and most critical factor when choosing an origin sensor is ensuring it's compatible with your specific Lada make and model. Different Lada models — such as the Priora, Granta, Kalina, or Niva — may have different engine configurations and electronic systems that require specific sensors.
- Lada vehicles equipped with VAZ engines may require OEM-specific sensors
- Newer Ladas with Renault-Nissan platforms might use standardized Bosch or Denso units
- Always verify compatibility with your vehicle’s VIN or production year
Expert tip: Cross-reference part numbers with online Lada parts catalogs or consult with authorized dealers.
Check Lada ECM Part Number and Sensor Match
It’s essential to match the origin sensor with the correct Engine Control Module (ECM) installed in your Lada. The sensor must communicate effectively with the vehicle’s ECU to ensure accurate ignition timing and fuel injection sequences.
- Locate the ECM under the hood — typically a black box with wiring harnesses
- Note the part number on the label and cross-reference it with the sensor's specifications
- Some sensors are designed specifically for certain ECM software versions
Important: Mismatched sensors can lead to misfires, starting issues, or engine stalling.
Consider Lada ECM Programming Requirements
Modern Lada vehicles may require the origin sensor to be recognized and calibrated by the onboard computer system. Some replacement sensors may need reprogramming or synchronization with the ECU.
- Aftermarket sensors might require specialized tools like KESS or K-TAG for calibration
- Original equipment manufacturer (OEM) sensors often plug-and-play without additional setup
- Programming services are available at certified Lada service centers
Pro advice: If unsure about programming needs, opt for OEM parts or consult a qualified technician.
Budget Considerations and Quality Balance
Origin sensors for Lada come in various price ranges, from budget-friendly aftermarket options to premium OEM replacements. While cost is a consideration, quality should not be compromised.
- OEM sensors offer guaranteed compatibility but at a higher price point
- High-quality aftermarket brands like Febi Bilstein or Meyle provide good value
- Avoid extremely cheap sensors with unknown manufacturing origins
Value insight: A high-quality sensor can prevent costly diagnostics and repeated replacements.
Installation Tip: When replacing the origin sensor, always inspect related components like the reluctor wheel and wiring harness. Faulty readings can sometimes be caused by damaged teeth on the flywheel or poor electrical connections rather than the sensor itself.
| Lada Model Series | Recommended Sensor Type | Common Part Numbers | Estimated Cost Range |
|---|---|---|---|
| Priora / Kalina | Hall Effect Sensor | 2112-3706010, 1118-3706010 | $15–$30 (OEM), $10–$20 (Aftermarket) |
| Granta / Vesta | Magnetic Inductive Sensor | 2192-3706010, RN10-3706010 | $20–$40 (OEM), $12–$25 (Aftermarket) |
| Niva Legend / Classic | Classic Hall Sensor | 21214-3706010, 2123-3706010 | $18–$35 (OEM), $10–$22 (Aftermarket) |
DIY Replacement Guide for the Oil Pressure Sensor in Lada Vehicles
Replacing the oil pressure sensor on your Lada is a straightforward maintenance task that helps ensure your engine runs smoothly and safely. The oil pressure sensor monitors the engine's oil pressure and sends this data to the dashboard, alerting you if levels drop dangerously low. This guide provides step-by-step instructions to help you complete the replacement efficiently.
Safety Warning: Always disconnect the battery before working near electrical components. Allow the engine to cool completely before starting the procedure to avoid burns from hot oil or surfaces.
Tools and Materials Required
- Socket wrench set (metric sizes)
- Torque wrench (for precise installation)
- New oil pressure sensor (OEM or high-quality aftermarket)
- Gloves and safety glasses
- Rag or paper towels for cleaning
- Drip pan (optional, for residual oil)
Step-by-Step Replacement Process
- Locate the Oil Pressure Sensor
The oil pressure sensor is typically mounted on the engine block, usually near where the oil circulates out of the engine. On Lada models like the Niva or Priora, it’s often found near the oil filter or along the side of the engine block. Refer to your vehicle’s service manual if unsure.
- Disconnect the Electrical Connector
Carefully unplug the wiring harness connected to the sensor. You may need to press a small tab or clip to release it. Take care not to damage any surrounding wires or connectors.
- Remove the Old Sensor
Use a socket wrench to unscrew the old oil pressure sensor from the engine block. Turn it counterclockwise until it comes loose. Some residual oil may spill out—place a rag or drip pan beneath the sensor to catch any drips.
- Clean the Mounting Area
Inspect the threaded hole where the sensor was installed. Use a clean rag to wipe away any dirt, grime, or old thread sealant. Ensuring a clean surface will help create a proper seal with the new sensor.
- Install the New Oil Pressure Sensor
Screw the new sensor into place by hand first to avoid cross-threading. Once seated properly, use a socket wrench to tighten it securely. If specified in the manufacturer's instructions, use a torque wrench to achieve the recommended torque setting (usually between 15–20 Nm).
- Reconnect the Electrical Connector
Firmly plug the wiring harness back into the new sensor. Make sure the connection clicks into place and feels secure. A loose connection could lead to inaccurate readings or no signal at all.
- Test for Leaks and Functionality
Start the engine and let it run for a few minutes while observing the area around the sensor. Check for any signs of oil leakage. Also, verify that the oil pressure warning light or gauge on the dashboard behaves normally once the engine is running.
Pro Tip: Before installing the new sensor, double-check its compatibility with your specific Lada model. Some sensors come pre-coated with a sealing compound, but others may require applying a small amount of thread sealant to ensure a leak-free fit.
Common Issues and Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Oil Leak After Installation | Incomplete tightening, damaged threads, or missing seal | Retighten to correct torque specifications; inspect threads for damage; apply sealant if needed |
| No Oil Pressure Reading | Loose electrical connection or faulty sensor | Check wiring harness connection; test sensor with multimeter or replace if necessary |
| Inaccurate Oil Pressure Readings | Incorrect sensor type or calibration mismatch | Verify sensor part number matches OEM specification; consult repair manual |
Maintenance Reminder: While replacing the oil pressure sensor, consider checking other related systems such as oil level, oil filter condition, and overall engine health to prevent future issues.
Frequently Asked Questions About Lada Origin Sensors
Lada's origin sensors do not have a fixed replacement schedule since their lifespan varies based on driving conditions, environmental exposure, and vehicle maintenance history. However, regular inspections during scheduled maintenance intervals (such as every 30,000 to 60,000 kilometers) are recommended to assess sensor health. If symptoms of degradation appear—like poor engine performance or irregular emissions—the sensor should be checked immediately for potential replacement.
When a Lada origin sensor begins to degrade, it can disrupt the engine’s ability to monitor critical parameters, leading to noticeable issues:
- Decreased engine performance: The engine may feel sluggish or less responsive due to incorrect data being sent to the ECU (Engine Control Unit).
- Increase in fuel consumption: Faulty sensors can cause improper fuel-air mixture calculations, resulting in higher than normal fuel usage.
- Rise in harmful emissions: A failing sensor may lead to incomplete combustion, increasing exhaust pollutants and potentially causing failure during emissions testing.
- Illuminated check engine light: One of the most direct indicators is the activation of the "Check Engine" warning light on the dashboard, which signals that diagnostic trouble codes have been logged by the onboard computer.
If any of these symptoms occur, it’s important to have the sensor inspected by a qualified technician using proper diagnostic tools.
Unfortunately, once a Lada origin sensor fails or becomes faulty, it cannot be effectively repaired. These sensors are precision-engineered components designed for long-term reliability but are not serviceable once they malfunction. Attempting to clean or recalibrate them typically does not resolve underlying electrical or mechanical failures. Therefore, replacing the sensor with a new one is the only reliable solution to restore accurate readings and optimal engine performance.
While it is not strictly mandatory to use original equipment manufacturer (OEM) sensors when replacing or assembling parts, doing so is highly recommended. Original Lada sensors are specifically calibrated and engineered to match the design specifications of the vehicle, ensuring compatibility, accuracy, and long-term durability. Using OEM parts helps maintain factory-level performance standards and reduces the risk of future complications such as misreadings, early failure, or compatibility errors with the vehicle’s electronic systems.
Non-original sensors may offer cost savings, but they can vary in build quality, calibration accuracy, and software compatibility. In some cases, aftermarket sensors might trigger false error codes or fail prematurely. For critical components like origin sensors, investing in genuine parts can prevent more expensive repairs down the road and contribute to smoother vehicle operation.
No, Lada's origin sensors are specifically designed and manufactured for use in Lada vehicles. They are tailored to fit particular engine configurations, wiring harnesses, and control modules unique to Lada models. Installing them in vehicles from other manufacturers is generally not advisable due to differences in design, sensor protocols, and communication interfaces between automotive brands.
Even if physical installation appears possible, functional incompatibility will likely result in error messages, poor engine performance, or system malfunctions. Each automaker employs proprietary sensor designs and calibration settings, making cross-compatibility rare without extensive modifications. To ensure proper functionality and safety, always use sensors designed for your specific vehicle make and model.
