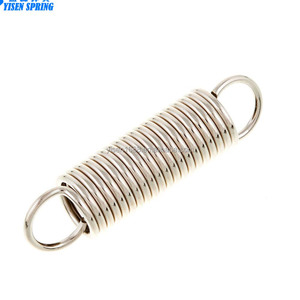

Types of OEM Coil Spring
OEM coil springs play a crucial role in mechanical systems by storing and releasing energy to absorb shocks or maintain force between components. These springs come in various designs tailored for specific performance needs across industries ranging from automotive engineering to heavy industrial machinery.
Selecting the appropriate type of OEM coil spring is essential for ensuring optimal system functionality, durability, and safety. Below is an in-depth exploration of the most common types:
Constant Spring
Also known as constant force springs, these are designed to exert nearly uniform force throughout their extension range. The unique design features closely spaced coils at one end that gradually widen toward the other, allowing consistent tension even as the spring extends or retracts.
Advantages
- Predictable and stable output force
- Long service life due to low stress variation
- Ideal for precision applications
- Minimal maintenance requirements
Limitations
- Less flexibility in variable load environments
- May require additional guides or supports
- Not suitable for high-impact scenarios
Best for: Medical devices, retractable tools, window counterbalances, and industrial automation systems
Tapered Spring
These compression springs feature a conical or tapered shape with varying coil diameters along the length. This design allows for compact installation while offering progressive resistance characteristics compared to standard cylindrical springs.
Advantages
- Space-efficient design
- Natural progressive rate without special spacing
- Reduced buckling risk under compression
- Better stability in constrained environments
Limitations
- More complex manufacturing process
- Higher cost than standard springs
- Limited availability in some sizes
Best for: Valve mechanisms, shock absorbers, aerospace applications, and tight-space installations
Progressive Spring
Designed with unevenly spaced coils that create an increasing spring rate as more force is applied. This allows for a soft initial response that becomes firmer as compression increases, making them highly adaptable to changing loads.
Advantages
- Excellent ride quality adaptation
- Improved handling in variable conditions
- Effective vibration dampening
- Customizable rate curves
Limitations
- More challenging to predict exact behavior
- Can feel inconsistent under certain loads
- Requires careful tuning for specific applications
Best for: Automotive suspensions, off-road vehicles, motorcycle forks, and recreational equipment
Square-ended Springs
Characterized by flat ends and rectangular cross-section coils, these springs offer precise alignment and even load distribution. Their square geometry ensures maximum contact surface area with mounting points.
Advantages
- Superior load-bearing stability
- Excellent torque resistance
- Improved positional accuracy
- Uniform pressure distribution
Limitations
- Heavier than round wire alternatives
- More expensive to manufacture
- Specialized tooling required
Best for: Industrial presses, precision actuators, CNC machines, and torque-critical applications
Shut-off Springs
Specifically engineered to compress fully or reach a defined load threshold, triggering a mechanical action. These springs often incorporate a "solid height" design where coils touch when compressed to activate switches or engage safety mechanisms.
Advantages
- Reliable trigger mechanism
- Precise activation point control
- Integral to safety systems
- Repeatable performance over cycles
Limitations
- Narrow operational tolerance range
- May fatigue faster near solid height
- Requires careful integration into system design
Best for: Safety valves, emergency shut-offs, overload protection systems, and industrial limit switches
Oil and Gas Springs
Engineered for extreme environments found in petroleum exploration and production operations. These specialized springs are built to withstand high temperatures, corrosive chemicals, and intense mechanical stresses typical in drilling and extraction processes.
Advantages
- Extreme temperature resistance
- Corrosion-resistant materials
- High-pressure tolerance
- Durability in harsh environments
Limitations
- Specialized coatings increase cost
- Require industry-specific certifications
- Longer lead times for custom solutions
Best for: Drilling rigs, subsea equipment, pipeline systems, and refinery machinery
| Type | Design Characteristics | Load Behavior | Primary Applications | Durability Rating |
|---|---|---|---|---|
| Constant Spring | Gradually widening coils | Uniform force output | Medical devices, retractable tools | Excellent |
| Tapered Spring | Conical shape with varying diameter | Stable compression characteristics | Aerospace, valve systems | Very Good |
| Progressive Spring | Unevenly spaced coils | Increasing resistance with compression | Automotive suspensions, off-road vehicles | Good |
| Square-ended Springs | Rectangular cross-section, flat ends | Even load distribution | Industrial machinery, CNC equipment | Very Good |
| Shut-off Springs | Coils touch at full compression | Precise activation point | Safety systems, limit switches | Good |
| Oil and Gas Springs | Heavy-duty corrosion-resistant construction | Extreme environment tolerance | Drilling rigs, subsea equipment | Excellent |
Expert Tip: When selecting OEM coil springs for critical applications like safety systems or high-stress environments, always verify material specifications and working load limits against your system's operating conditions to ensure long-term reliability and compliance with industry standards.
Specifications and Maintenance of OEM Coil Springs
Understanding Key Specifications
OEM coil springs are critical suspension components that provide structural support and ride comfort. Understanding their specifications ensures proper selection and performance compatibility with your vehicle's design and intended usage.
Spring Size
The physical dimensions of OEM coil springs are tailored to each vehicle’s suspension system. The wire diameter typically ranges from 0.5 to 1.5 inches, while the overall spring diameter varies between 10 to 15 inches depending on application requirements.
These measurements directly influence load capacity and ride characteristics. Larger diameters can accommodate heavier loads but may affect ride compliance, whereas smaller sizes often provide a smoother ride at the expense of reduced load-bearing capability.
Spring Rate
Spring rate refers to the amount of force required to compress the spring one inch. For OEM coil springs, this value generally falls between 300 to 1,000 pounds per inch (lb/in), depending on the vehicle's weight, suspension geometry, and intended use.
Higher spring rates offer stiffer suspension setups suitable for heavy-duty or high-performance vehicles, while lower rates provide softer rides ideal for passenger cars and daily commuting.
Material Composition
OEM coil springs are predominantly manufactured using high-grade spring steel, known for its excellent fatigue resistance and durability under repeated stress cycles. Common grades include SAE 9260, SAE 1075, and EN45, each offering unique mechanical properties.
- SAE 9260: High carbon silicon alloy steel offering superior resilience and shock absorption.
- SAE 1075: Medium-carbon steel with good tensile strength and formability.
- EN45: European standard steel grade used in applications requiring high endurance limits and wear resistance.
Protective Coating
To combat environmental factors like moisture and road chemicals, OEM coil springs are coated with protective layers. Common coating types include:
- Polyurethane: Provides flexibility and impact resistance while protecting against corrosion.
- Zinc Phosphate: Offers sacrificial protection by forming a barrier against oxidation.
- E-Coat (Electrophoretic Deposition): A uniform, durable finish that enhances corrosion resistance across complex shapes.
| Specification | Impact on Performance | Selection Considerations |
|---|---|---|
| Spring Diameter | Directly affects load distribution and ride height stability | Match original equipment dimensions unless modifying suspension setup |
| Spring Rate | Determines stiffness and handling response | Select based on driving conditions and vehicle weight |
| Wire Gauge | Influences durability and spring life | Thicker wires last longer but may reduce ride comfort |
| Coil Configuration | Affects compression behavior and progressive loading | Choose constant, linear, or variable rate designs based on performance needs |
Maintenance Best Practices
Proper maintenance of OEM coil springs is essential for ensuring long-term reliability and maintaining optimal suspension dynamics. Here are key practices to follow:
Important: Never attempt to repair damaged coil springs through welding or reshaping. These methods compromise structural integrity and pose serious safety risks. Always replace damaged springs with OEM-approved replacements to maintain vehicle safety and warranty coverage.
How to Choose OEM Coil Springs
Selecting the right OEM coil spring is crucial for maintaining vehicle performance, ride quality, and safety. Business buyers must evaluate multiple technical and practical factors to ensure they purchase springs that meet their specific requirements.
Load Requirements
The load capacity of a coil spring determines its ability to support both the vehicle’s weight and any additional cargo. Choosing a spring with inadequate load-bearing capability can lead to sagging, poor handling, and premature wear on other suspension components.
- Determine the total weight including vehicle curb weight plus maximum expected payload
- Select springs rated for at least 10-15% more than the expected load for safety and longevity
- Commercial vehicles or those used for towing should prioritize heavy-duty spring ratings
Expert tip: Consult technical specifications from the manufacturer or supplier to match load ratings accurately.
Spring Rate (Stiffness)
The spring rate, measured in pounds per inch (lb/in), defines how much force is required to compress the spring by one inch. It significantly affects ride comfort, handling, and suspension geometry.
- High spring rates offer stiffer suspension ideal for sporty handling or loaded vehicles
- Low spring rates provide a smoother ride but may bottom out under heavier loads
- Progressive-rate springs vary stiffness depending on compression level, offering a balance between comfort and control
Key consideration: Always match the spring rate to the vehicle's intended use and driving conditions.
Material Quality and Composition
The material used in manufacturing OEM coil springs directly impacts their strength, fatigue resistance, and corrosion protection. High-quality materials ensure long-term reliability and reduce maintenance costs.
- Standard OEM springs are typically made from high-carbon steel alloys
- Premium options may include chrome silicon, which offers superior tensile strength and heat resistance
- Coatings like powder coating or zinc plating enhance corrosion resistance, especially in harsh environments
Pro tip: Look for springs with shot-peening treatment for increased fatigue life and durability.
Vehicle Compatibility
Each OEM coil spring is engineered to fit a specific make, model, and trim level. Ensuring compatibility prevents misalignment, uneven wear, and compromised safety standards.
- Refer to the vehicle identification number (VIN) and factory part numbers when ordering
- Verify dimensions such as free height, wire diameter, and coil count
- Confirm whether the vehicle has standard or modified suspension settings
Important: Cross-reference parts using official OE databases or consult with a certified technician if unsure.
Quality Assurance and Certification
Choosing coil springs from reputable manufacturers ensures compliance with industry standards and reduces the risk of defective products entering your inventory.
- Look for ISO 9001 or IATF 16949 certifications for quality management systems
- Check for independent testing results (e.g., fatigue tests, salt spray corrosion tests)
- Read customer reviews and testimonials from other business buyers
Recommendation: Purchase from authorized distributors or directly from OEM-approved suppliers for authenticity.
Installation Considerations
While OEM coil springs are designed for straightforward installation, certain aspects can affect labor time and complexity, particularly in fleet operations or large-scale procurement scenarios.
- Ensure availability of proper tools and safety equipment for spring compression
- Choose springs that come with clear installation instructions and hardware kits where applicable
- Opt for pre-assembled units where possible to reduce labor hours and error margins
Time-saving idea: Pre-order installation kits or partner with vendors offering technical support services.
Buying Tip: When purchasing in bulk for commercial applications, always request sample units first. Test them under real-world conditions before placing a full order to verify fitment, performance, and consistency across batches.
| Application Type | Recommended Material | Typical Spring Rate Range | Expected Lifespan |
|---|---|---|---|
| Passenger cars (standard use) | High-carbon steel | 150–250 lb/in | 80,000–120,000 miles |
| SUVs & light trucks | Chrome silicon alloy | 250–350 lb/in | 100,000–150,000 miles |
| Heavy-duty commercial vehicles | Tempered steel with protective coating | 350–500 lb/in | 120,000–180,000 miles |
| Racing or high-performance | Custom alloy progressive-rate | Variable (progressive) | Varies based on usage intensity |
Warranty Insight: A reliable OEM coil spring should come with a minimum warranty of 2 years or 50,000 miles. Extended warranties often indicate better build quality and manufacturer confidence in the product. Always register purchased items to activate coverage where applicable.
DIY Guide to Replacing OEM Coil Springs
Replacing coil springs is a crucial maintenance task that can significantly improve your vehicle's ride quality, handling, and safety. While it may seem challenging due to the involvement of suspension components under tension, with proper tools and methodology, this job can be completed safely at home. This comprehensive guide will walk you through each step of replacing original equipment manufacturer (OEM) coil springs on most passenger vehicles.
Safety Warning: Working with suspension components poses serious risks. Always use proper lifting equipment rated for your vehicle's weight. Never rely solely on a jack. Wear protective gloves, eye protection, and steel-toed shoes throughout the process.
Step-by-Step Replacement Process
- Safety Precautions and Planning
- Ensure you have a level, stable workspace free from obstructions
- Wear appropriate personal protective equipment (PPE): safety glasses, gloves, and workshop apron
- Confirm vehicle is in park (automatic) or first gear (manual) with parking brake fully engaged
- Use wheel chocks to prevent unintended vehicle movement
- Review your vehicle's service manual for specific torque specifications and component locations
- Vehicle Preparation and Lifting
- Loosen lug nuts while the vehicle is still on the ground using a breaker bar
- Raise the vehicle with a floor jack positioned at factory-approved lift points
- Secure the vehicle on jack stands placed under reinforced frame rails
- Double-check stability by gently shaking the vehicle before working underneath
- Remove wheels to access suspension components
- Disassembly and Old Spring Removal
- Disconnect sway bar links using appropriate socket set
- Remove strut-to-knuckle bolts (typically two or three per side)
- Loosen upper strut mount hardware located in the engine bay or wheel well
- Compress coil spring using a high-quality spring compressor tool
- Remove lower strut mounting bolt to separate strut assembly from steering knuckle
- Carefully lower strut assembly while maintaining control of compressed spring
- Mark position of old spring relative to mounts for reference during installation
- New Spring Installation and Final Assembly
- Lubricate spring seats with silicone-based lubricant to prevent squeaks
- Install new OEM coil spring ensuring proper orientation matches factory markings
- Reassemble strut components in reverse order of removal
- Torque all fasteners to manufacturer specifications (critical for safety)
- Reinstall wheels and lower vehicle gradually
- Properly tighten lug nuts in a star pattern to ensure even pressure distribution
| Phase | Essential Tools | Common Challenges | Time Estimate |
|---|---|---|---|
| Preparation | Floor jack, jack stands, wheel chocks, torque wrench | Locating proper lift points, interpreting service manual diagrams | 30 minutes |
| Disassembly | Spring compressor, metric/SAE sockets, pry bar | Stuck fasteners, difficulty compressing spring safely | 1.5 - 2 hours |
| Installation | Replacement spring, silicone lubricant, replacement bushings | Proper spring orientation, achieving correct torque specs | 1 hour |
| Final Checks | Wheel alignment tools, test drive area | Identifying unusual noises, verifying proper operation | 30 minutes |
Expert Tip: Consider replacing both front or rear coil springs simultaneously for balanced performance. Even if only one spring shows visible damage, replacing in pairs ensures consistent ride height and handling characteristics. Always inspect related components like shocks, bushings, and suspension mounts during this process.
Post-Replacement Recommendations
- Perform a thorough visual inspection of all suspension components after initial drive
- Check and retorque all suspension fasteners after approximately 100 miles of driving
- Consider getting a wheel alignment to maintain proper tire wear patterns
- Monitor for any unusual vibrations or noises during acceleration, braking, and cornering
- Document the date of replacement for future maintenance planning
Maintenance Reminder: Regularly inspect your coil springs during oil changes or tire rotations. Look for signs of metal fatigue, cracks, or excessive sagging. Properly maintained suspension components contribute significantly to vehicle safety and longevity.
Frequently Asked Questions About Coil Springs
Coil springs don't have a fixed replacement schedule like oil or brake pads, as their lifespan varies significantly based on multiple factors. The frequency of replacement depends heavily on:
- Vehicle type: Performance vehicles and heavy-duty trucks may experience more stress on suspension components than compact cars.
- Driving habits: Frequent aggressive driving, sharp turns, or hard braking can accelerate wear.
- Road conditions: Consistently driving on rough, uneven, or unpaved roads can shorten spring life.
- Suspension modifications: Lowered suspensions or performance upgrades may place additional strain on stock springs.
- Spring quality: OEM (Original Equipment Manufacturer) parts typically last longer than low-quality aftermarket alternatives.
As a general guideline, coil springs can last anywhere from 7 to 10 years under normal driving conditions. However, it's essential to inspect them regularly—ideally during tire rotations or oil changes—and replace them when signs of wear appear, such as sagging, cracks, or diminished ride quality.
No, driving with a broken coil spring is not safe and should be avoided at all costs. A broken spring compromises several critical aspects of vehicle operation:
- Handling: The suspension system relies on balanced support across all wheels. A broken spring leads to unpredictable steering and reduced control.
- Stability: Uneven weight distribution caused by a collapsed spring can make the vehicle prone to swaying, especially during turns or emergency maneuvers.
- Tire contact: Improper suspension function affects how tires maintain contact with the road surface, increasing stopping distances and reducing grip.
- Damage risk: Continued driving can cause damage to other suspension components, including shocks, struts, bushings, and even the chassis in extreme cases.
- Legal implications: In many regions, driving with visibly damaged suspension components is illegal and could result in fines or failed safety inspections.
If you suspect a broken coil spring, it's best to tow the vehicle to a qualified mechanic for inspection and repair.
Recognizing early signs of coil spring wear can prevent further damage and costly repairs. Key indicators include:
- Uneven vehicle height: If one side of the car sits lower than the others, especially after checking tire pressure and suspension alignment, this is a red flag.
- Bumpy ride: Worn springs lose their ability to absorb road imperfections effectively, leading to a harsher, jarring ride.
- Nose diving or leaning: During braking or cornering, the vehicle may dip forward or sway sideways more than usual due to compromised suspension geometry.
- Visible damage: Cracks, rust, corrosion, or broken coils are clear signs that the spring needs immediate replacement.
- Clunking noises: Unusual sounds coming from the suspension area, particularly over bumps, may indicate loose or failing springs.
- Excessive bouncing: If your car continues to bounce after hitting a bump, the springs might not be providing sufficient rebound resistance.
Regular visual inspections and attention to ride characteristics help catch issues before they become safety hazards.
Yes, it's strongly recommended to replace coil springs in pairs—typically both front or both rear springs depending on which axle shows signs of wear. Here’s why:
- Balance and symmetry: Suspension systems are designed to work in tandem. Replacing only one spring creates an imbalance that can affect handling and ride comfort.
- Consistent performance: New springs will perform differently from aged ones, potentially causing uneven compression and rebound rates across the same axle.
- Predictable behavior: Balanced suspension ensures safer and more predictable vehicle dynamics, especially during emergency maneuvers or adverse weather conditions.
- Prevent premature failure: An old spring working alongside a new one can lead to accelerated wear due to uneven load distribution.
In high-mileage vehicles where one spring has failed, replacing all four springs may be advisable to restore full suspension integrity and avoid future repairs down the line.
Understanding the differences between OEM (Original Equipment Manufacturer) and aftermarket coil springs helps in making informed decisions about suspension maintenance or upgrades. Below is a comparison:
| Aspect | OEM Coil Springs | Aftermarket Coil Springs |
|---|---|---|
| Design | Engineered to match original specifications and tolerances set by the vehicle manufacturer. | Available in various designs, including sport-tuned, lowered, lifted, or enhanced load-bearing options. |
| Quality | Usually built to strict standards, ensuring reliability and compatibility with factory suspension systems. | Quality varies widely; some premium brands offer superior materials and engineering compared to OEM. |
| Purpose | Designed primarily for restoration or maintaining stock performance and ride characteristics. | Often aimed at improving performance, aesthetics, or functionality beyond factory settings. |
| Cost | Typically more expensive due to brand reputation and factory certification. | Can be more affordable, though high-performance variants may cost more than OEM equivalents. |
| Availability | Limited to specific models and years; may require waiting for delivery from dealerships. | Widely available in various configurations for most vehicle makes and models. |
When choosing between OEM and aftermarket coil springs, consider your driving style, vehicle use case, and desired ride quality. For daily drivers and those seeking reliability, OEM springs are usually the safest bet. Enthusiasts or those looking for customization may prefer high-quality aftermarket options tailored to their specific needs.
