Types of Marine Control Boxes
A marine control box is a vital component in the operation of marine vessels, serving as the interface between the operator and the engine systems. It enables precise management of propulsion, gear shifting, and sometimes advanced diagnostics. Properly designed control boxes enhance safety, improve maneuverability, and streamline vessel operations across various marine environments.
The primary functions of a marine control box include:
- Managing throttle input to adjust engine speed
- Controlling gear selection (forward, neutral, reverse)
- Providing feedback on engine status through integrated displays
- Allowing remote or multi-station operation for larger vessels
There are several types of marine control boxes, each designed to meet specific operational needs and vessel configurations:

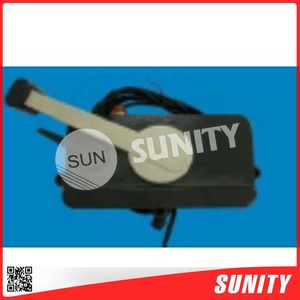

Single Lever Control Box
This streamlined design combines both throttle and shift controls into one ergonomic lever, allowing intuitive operation with a single hand. The simplicity of this system makes it ideal for smaller boats where space is limited and quick response times are crucial.
Advantages
- Simplified operation with one-hand control
- Compact design saves space
- Ideal for small watercraft and outboard engines
- Reduces learning curve for new operators
Limitations
- Limited customization options
- Not suitable for large or complex vessels
- Fewer integrated features compared to advanced models
Best for: Small recreational boats, fishing vessels, and personal watercraft
Dual Station Control Box
Designed to allow engine control from two separate locations, such as the helm station and flybridge. This flexibility enhances usability on larger boats where multiple vantage points are needed for optimal navigation and docking.
Advantages
- Enables operation from multiple onboard locations
- Improves situational awareness during docking
- Increases convenience for crew members
- Supports safer handling in crowded waters
Limitations
- More complex installation process
- Higher cost than single-station systems
- Requires additional cabling and hardware
Best for: Mid to large-sized yachts, cruisers, and commercial vessels
Electronic Control Box
Advanced digital systems that integrate with the vessel’s engine management system (EMS) and electronic control unit (ECU). These control boxes provide real-time data monitoring, precision control, and enhanced diagnostics capabilities for improved performance and maintenance tracking.
Advantages
- Real-time engine diagnostics and monitoring
- Precise fuel and ignition control
- Integration with GPS, autopilot, and other systems
- Customizable control profiles for different conditions
Limitations
- Higher initial investment
- Requires technical knowledge for setup and troubleshooting
- Dependent on electrical systems and connectivity
Best for: Modern yachts, racing boats, and commercial fleets requiring high-tech integration
Remote Control Box
These units allow operators to manage engine functions and vessel systems from a distance using wireless technology or tethered remote panels. They're particularly useful in emergency situations or when direct access to the main control panel is not possible.
Advantages
- Wireless or tethered remote operation capability
- Enhances safety by enabling off-bridge control
- Useful during maintenance or emergencies
- Can be integrated with alarm and alert systems
Limitations
- Signal interference can affect reliability
- Battery-powered remotes require regular maintenance
- Additional cost for secure communication protocols
Best for: Emergency backup systems, maintenance scenarios, and specialized applications
| Type | Complexity | Flexibility | Best Use Case | Technology Level |
|---|---|---|---|---|
| Single Lever | Low | Moderate | Small boats, basic operation | Analog/Mechanical |
| Dual Station | Moderate | High | Larger vessels, dual helm stations | Mechanical/Digital Hybrid |
| Electronic | High | Very High | Modern boats with integrated systems | Fully Digital |
| Remote | High | Specialized | Emergency or secondary control | Wireless/Digital |
Expert Tip: When selecting a marine control box, consider your vessel's size, intended use, and whether you need multi-station or remote operation. For long-term reliability, always ensure compatibility with your engine manufacturer's specifications and opt for waterproof and corrosion-resistant designs for harsh marine environments.
Specifications and Maintenance of Marine Control Boxes
Key Specifications to Consider
Marine control boxes are critical components in vessel operation systems, designed with specific features that ensure safe, efficient, and reliable control over various onboard functions. Understanding their specifications helps in selecting the right model for your marine application.
Control Functions
The control box must support essential operational controls such as throttle management, gear shifting, and multifunctional integration. Throttle control ensures precise regulation of engine speed, offering smooth acceleration and deceleration. Gear shift control allows seamless transitions between forward, neutral, and reverse modes, enhancing maneuverability. Multifunction control integrates monitoring and adjustment of engine parameters, display interfaces, and additional functionalities like trim or ballast control.
Advanced models may include programmable presets, joystick steering compatibility, and autopilot integration, making them ideal for high-performance or luxury vessels.
Design and Construction
Designed specifically for harsh marine environments, these control boxes must be compact yet ergonomically optimized for easy access and intuitive operation in tight spaces. The housing should be durable, typically made from corrosion-resistant materials like marine-grade aluminum or reinforced polymers.
User-friendly interfaces with tactile buttons, backlit displays, and waterproof seals ensure usability even under challenging conditions such as saltwater exposure, vibration, and temperature fluctuations.
Electrical and Communication Capabilities
Modern marine control boxes manage both electrical power distribution and digital communication protocols. They often include built-in voltage regulators and noise filters to protect sensitive electronics from power surges or interference.
Communication interfaces like CANbus, NMEA 2000, or Ethernet enable seamless data exchange with navigation systems, engine ECUs, and other onboard modules, supporting diagnostics, remote monitoring, and system integration.
Safety and Monitoring Features
Safety is paramount in marine operations. Control boxes incorporate safety systems that monitor critical parameters such as oil pressure, engine temperature, battery levels, and GPS signal integrity. These systems provide audible or visual alerts if any parameter falls outside safe limits.
Monitoring capabilities also extend to real-time performance tracking, fault code logging, and historical data retrieval, which aid in preventive maintenance and troubleshooting.
Power and Engine Control Systems
A high-quality marine control box provides comprehensive engine control, including power distribution, RPM modulation, and emissions optimization. It ensures balanced energy allocation across onboard systems—navigation, lighting, bilge pumps, and entertainment—to maintain stability and prevent overload.
Engine control modules within the box allow operators to fine-tune settings for fuel efficiency, reduce wear, and comply with environmental regulations through intelligent idle control and emission feedback loops.
| Specification | Importance | Selection Tips |
|---|---|---|
| Water Resistance (IP Rating) | High | Choose IP66 or higher for full protection against water ingress and dust |
| Operating Temperature Range | Medium | Ensure compatibility with extreme temperatures (-30°C to +70°C typical) |
| Communication Protocols | High | Select units compatible with NMEA 2000, CANbus, or J1939 standards |
| Mounting Options | Medium | Consider flush-mount or bracket-mount options based on available panel space |
Essential Maintenance Practices
Regular maintenance of marine control boxes is crucial to ensuring long-term reliability, optimal performance, and compliance with safety standards. Below are key maintenance procedures every boat owner should follow:
Important: Always disconnect the main power supply before performing internal inspections or maintenance. Improper handling of live circuits can lead to serious injury or equipment damage. If unsure, consult a certified marine technician.
How to Choose a Marine Control Box
Selecting the right marine control box is essential for ensuring smooth and reliable operation of marine engines. A well-chosen control box enhances both performance and safety, particularly in varying sea conditions and vessel types. Below are key factors to consider when choosing the ideal marine engine control system:
Control Type: Mechanical vs. Electronic
The type of control mechanism significantly impacts how you interact with your boat's engine. Each has its own advantages depending on your usage and environment.
- Mechanical Cables: Provide a direct, tactile feel between the operator and the engine. These are highly reliable, require minimal maintenance, and are ideal for smaller boats or vessels where simplicity and durability are key.
- Electronic Systems: Offer smoother, more precise control with less physical effort. They can integrate with other onboard systems like GPS, autopilot, or digital displays, making them ideal for high-performance boats, yachts, and larger commercial vessels.
Tip: For sport fishing or recreational boating, mechanical systems may be sufficient. For luxury yachts or commercial operations, electronic systems offer greater flexibility and integration.
Compatibility with Engine and Vessel
Ensuring compatibility between the control box and your engine model is crucial for optimal performance. Not all control boxes work with every engine make or size.
- Check the engine manufacturer’s specifications for recommended control systems
- Verify that the mounting dimensions and connection ports match your setup
- Consider dual-station setups if your boat has multiple helm positions
Important: Always refer to the engine manual or consult with a certified marine technician before purchasing.
Ergonomics and Usability
Comfort and usability should not be overlooked, especially for long voyages. An ergonomically designed control box reduces fatigue and improves handling precision over time.
- Look for adjustable friction controls to customize lever tension
- Ensure levers have a smooth, consistent movement without binding or resistance
- Choose a layout that allows intuitive access to throttle, gear shift, and auxiliary functions
- Some models feature backlit panels or LED indicators for improved visibility at night
Design Tip: Test the control box in person if possible to assess comfort and responsiveness.
Installation and Maintenance Requirements
Installation complexity and ongoing maintenance needs vary widely among control box designs. Consider your technical skill level and available support.
- DIY-friendly models come with clear instructions and pre-assembled components
- Professional installation may be required for advanced electronic systems or complex vessel layouts
- Choose models with modular design for easy part replacement and servicing
- Corrosion-resistant materials (e.g., stainless steel or anodized aluminum) extend lifespan in saltwater environments
Maintenance Note: Regular cleaning and lubrication will prolong the life of mechanical parts and ensure smooth operation.
Expert Advice: When upgrading from a basic mechanical system to an electronic one, consider starting with a hybrid model. This allows you to experience enhanced features while maintaining familiar control mechanics, easing the transition and minimizing learning curves.
| Vessel Type | Recommended Control Type | Key Features | Ideal For |
|---|---|---|---|
| Inboard Motor Yacht | Electronic Dual-Station | Remote control, multi-engine sync, integrated dash display | Long-distance cruising, luxury use |
| Offshore Fishing Boat | Mechanical with Friction Adjustment | Durable build, corrosion-resistant casing, simple interface | Rough water conditions, frequent use |
| Recreational Powerboat | Hybrid Electronic-Mechanical | Smooth shifting, compact design, moderate price point | Weekend boaters, family outings |
| Commercial Workboat | Heavy-Duty Mechanical | High-load capacity, rugged construction, field-repairable | Industrial use, constant operation |
Additional Features to Enhance Performance
Modern marine control boxes often include advanced features that improve both functionality and safety. Consider which extras align with your specific boating needs.
- Engine Diagnostics: Real-time monitoring of RPM, oil pressure, temperature, and fault codes directly through the control panel.
- Multi-Engine Synchronization: Allows simultaneous control of two or more engines for improved maneuverability and fuel efficiency.
- Remote Operation: Enables control from different locations on the boat via wireless or wired remote units.
- Integration with Navigation Systems: Connects to chartplotters, autopilots, and sonar systems for coordinated navigation and engine management.
Safety Enhancement: Look for models with emergency stop buttons, audible alarms, or automatic engine shutdown in case of overheating or low oil pressure.
By carefully evaluating these factors—control type, compatibility, ergonomics, installation requirements, and additional features—you can select a marine control box that not only meets your current operational needs but also supports future upgrades and enhancements. Investing time in research ensures safer, more enjoyable, and efficient boating experiences across various conditions and vessel types.
Comprehensive DIY Guide to Replacing a Marine Control Box
Replacing a marine control box is a critical maintenance task that ensures your boat operates safely and efficiently. While it may seem straightforward, this job involves careful handling of electrical systems, wiring diagrams, and waterproofing measures. This guide provides detailed instructions to help you complete the replacement successfully while adhering to best practices for marine electronics installation.
Safety Warning: Always disconnect the battery before working on any marine electrical system. Water and electricity are a dangerous combination—ensure all tools are dry and work in a well-ventilated area away from open flames or sparks.
Step-by-Step Replacement Procedure
- Disconnect Power Supply
- Turn off the main power switch at the control box if available
- Disconnect the negative terminal of the boat battery to eliminate risk of accidental short circuits
- Allow time for any residual charge in capacitors to dissipate (wait at least 10 minutes)
- Use insulated tools when working near live connections
- Remove the Old Control Box
- Document all connections with photos or labeled sketches before disassembly
- Use appropriate screwdrivers or socket wrenches to remove mounting hardware
- Carefully extract the unit while protecting surrounding dashboard components
- Label wire connectors using numbered tags or colored tape for easier reinstallation
- Inspect wires for wear, corrosion, or damage during removal process
- Prepare Installation Area
- Clean the mounting surface thoroughly with mild detergent and water
- Check for proper sealing surfaces and replace damaged gaskets if necessary
- Verify there's adequate space for wire routing and future maintenance access
- Confirm the new control box matches the old unit’s dimensions and mounting pattern
- Install the New Control Box
- Position the new unit ensuring proper orientation for controls and wiring access
- Secure with original hardware or marine-grade stainless steel replacements
- Tighten fasteners gradually in a diagonal pattern for even pressure distribution
- Ensure the gasket creates a watertight seal without excessive compression
- Connect Electrical Wiring
- Follow manufacturer wiring diagrams specific to your new control box model
- Use crimp connectors rather than soldered connections in marine environments
- Apply dielectric grease to exposed terminals to prevent corrosion
- Route wires away from sharp edges and heat sources
- Secure loose wires with zip ties or cable clamps
- Test System Functionality
- Reconnect battery and check for signs of smoke or burning smells
- Verify power indicator lights illuminate correctly
- Test each control function including throttle response and gear shifting
- Operate trim/tilt functions if applicable to ensure full operational range
- Monitor voltage readings under load conditions
- Final Assembly and Waterproofing
- Replace protective covers on unused connection ports
- Apply marine silicone around panel cutouts if needed
- Reinstall any removed dashboard panels or trim pieces
- Double-check all wire connections for tightness and security
- Ensure lid seals properly with no gaps or pressure points
| Phase | Essential Tasks | Potential Issues | Recommended Tools |
|---|---|---|---|
| Preparation | Power disconnection, documentation of wiring | Misplaced parts, forgotten connections | Camera, label maker, multi-meter |
| Removal | Safe extraction, labeling wires | Damaged dashboard, lost screws | Socket set, screwdriver kit |
| Installation | Proper alignment, watertight seal | Improper fit, compromised gasket | Gasket material, torque wrench |
| Wiring | Correct terminal connections | Reversed polarity, poor contact | Wire stripper, crimp tool |
| Testing | Full functionality verification | Undetected shorts, intermittent failures | Multimeter, test light |
Professional Tip: Consider upgrading to a modern digital control system if replacing an older analog unit. Many newer marine control boxes offer improved diagnostics, smoother throttle response, and better integration with GPS and engine monitoring systems. Always consult your boat manufacturer’s specifications before making compatibility upgrades.
Post-Installation Best Practices
- Create a wiring diagram reference and store it onboard for future repairs
- Perform a visual inspection every 25 hours of operation during the first season
- Apply corrosion inhibitor spray annually to connection terminals
- Keep spare fuses and connectors in your onboard tool kit
- Document the installation date inside the control box for future reference
Maintenance Reminder: Saltwater accelerates component degradation. Regularly inspect your control box after saltwater use and flush with freshwater when necessary. Never leave the box open during storage periods.
Marine Control Box: Frequently Asked Questions
The marine control box serves as the central interface between the vessel operator and the engine systems onboard. It allows for precise management of critical functions such as engine speed (via throttle control) and directional changes (forward, neutral, reverse). This device ensures seamless communication between the helm and the propulsion system, enabling the operator to maintain full control over the ship’s movement and performance in various water conditions.
Advanced models may also integrate with navigation systems or autopilot controls, offering enhanced operational efficiency and safety during long voyages or complex maneuvers.
A standard marine control box includes several core components that work together to provide comprehensive control:
- Throttle Lever: Adjusts engine RPM to control speed.
- Gear Shift Control: Enables switching between forward, neutral, and reverse gears.
- Control Panel: May feature buttons, switches, or digital interfaces for auxiliary systems like trim tabs or bow thrusters.
- Wiring Harness: Connects the control box to the engine's electronic control unit (ECU), sensors, and other onboard systems.
- Housing: A durable, often waterproof enclosure designed to withstand harsh marine environments.
Higher-end versions might include integrated displays, programmable presets, or compatibility with CAN bus networks for data sharing across systems.
Proper installation of a marine control box requires careful planning and execution to ensure safe and reliable operation. Here's a general outline of the process:
- Location Selection: Choose a location near the helm or bridge where it’s easily accessible but protected from direct exposure to water and weather.
- Mechanical Mounting: Secure the box using marine-grade fasteners and brackets to prevent vibration-related loosening.
- Cable Routing: Route throttle and gear cables from the engine to the control box, ensuring smooth motion without binding or excessive slack.
- Electrical Connections: Connect wiring harnesses to the ECU and other relevant systems, following manufacturer diagrams and using waterproof connectors where applicable.
- System Integration: If equipped with digital features, integrate with onboard electronics via NMEA 2000 or similar protocols.
- Testing: Perform thorough testing of all controls and connections before commissioning the system.
It is highly recommended to have installation performed by a certified marine technician, especially when dealing with complex digital systems or dual-station setups.
Maintenance is crucial to ensure consistent performance and longevity of the marine control box, particularly due to constant exposure to saltwater, vibration, and temperature fluctuations. Recommended maintenance tasks include:
- Visual Inspection: Regularly check for signs of corrosion, wear, or damage on both mechanical and electrical components.
- Lubrication: Apply marine-grade lubricant to moving parts like throttle and shift cables to prevent seizing and ensure smooth operation.
- Connection Checks: Inspect electrical terminals and connectors for tightness and signs of oxidation; clean and re-secure as needed.
- Digital System Updates: For smart control boxes, update firmware regularly to benefit from bug fixes, security patches, and new features.
- Function Testing: Periodically test all controls under load to detect any lag, stiffness, or inconsistency in response.
Annual professional servicing is advised for vessels operating in demanding conditions or used frequently for commercial purposes.
Absolutely—marine control boxes can be upgraded or tailored to better suit specific operational needs or modernize older systems. Customization options include:
- Additional Controls: Integration of buttons or switches for managing auxiliary equipment like bilge pumps, lighting, or stabilizers.
- Ergonomic Redesign: Custom layouts for easier access based on helm station design or user preference.
- Digital Upgrades: Replacement of analog controls with digital joysticks, touchscreens, or wireless remotes for advanced maneuverability and integration.
- Multi-Station Compatibility: Installation of dual or multi-control systems that allow operation from different areas of the vessel.
- Integration with Navigation Systems: Connecting the control box to GPS, radar, sonar, or autopilot systems for synchronized operation and situational awareness.
When upgrading or customizing, always adhere to manufacturer guidelines and industry standards to ensure compatibility, reliability, and compliance with maritime safety regulations.
