Level sensor probe

Types of Level Sensor Probes

Level sensor probes come in various types, each designed for specific applications and measurement requirements. These types include:

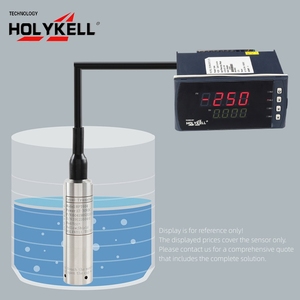

• Hydrostatic Level Sensor Probes

  The hydrostatic level sensor probe measures liquid level by detecting the pressure at the probe's tip. As the liquid level rises, the pressure increases, and the probe correlates this pressure to the liquid's height. These sensor probes are frequently used in tanks, reservoirs, and bodies of water to provide accurate level readings. They are suitable for high-temperature and high-pressure environments and are often used in oil and gas, wastewater treatment, and chemical storage.

• Capacitive Level Sensor Probes

  Capacitive level sensors work by detecting changes in capacitance caused by the presence or absence of a material at the probe's location. The probe consists of conductive plates insulated from each other. When a material reaches the probe, it changes the capacitance between the plates. These sensor probes can be used for both liquids and solids, making them suitable for many industries, including food and beverage, plastics, and agriculture. They are typically applied in non-contact level measurement and are reasonably effective with clean and non-conductive materials.

• Radar Level Sensor Probes

  Radar level sensors send radio waves towards the material surface and measure the time it takes for the waves to return. This gives a measurement of the distance between the probe and the surface, which can be converted to level. These probe sensors are suitable for various liquids and solids, including those with dust, vapors, and extreme temperatures. These sensors are frequently used in oil and gas, chemicals, and power generation. They provide accurate and reliable measurements, making them suitable for tough conditions.

• Ultrasonic Level Sensor Probes

  These sensor probes measure liquid levels by transmitting high-frequency sound waves from a transducer. The sound waves bounce off the liquid surface and return to the sensor. By measuring the time it takes for the reflected sound waves to return, the sensor calculates the distance to the liquid surface and thus the level. Ultrasonic sensor probes are widely used for non-contact liquid level measurement in many industries because of their low cost and ease of installation. They work well in open tanks, rivers, and wastewater treatment plants.

• Optical Level Sensor Probes

  Optical level sensors use light to detect the level of transparent or semi-transparent liquids. An optical probe typically has an LED that emits light and a photodetector. When the liquid covers the probe, the light refracts differently, and when it uncovers, the light returns to the sensor. These sensor probes are suitable for accurate level detection of clear liquids such as water, drinks, and some chemicals. Common applications are in the food and beverage, pharmaceuticals, and chemicals industries.

Industrial Applications of Level Sensor Probes

• Oil and Gas Industry

  In the oil and gas industry, level measurement probes are used to measure liquid levels in tanks, separators,h and and reservoirs. Hydrostatic and capacitance probes help provide accurate readings that ensure safe operations during the production and storage of liquids. They can also monitor pressure in high-stakes environments and identify potential hazards.

• Wastewater Treatment

  In wastewater treatment, level sensor probes help monitor levels in tanks and ponds. They measure the amount of wastewater and help automate the treatment process by giving real-time data. This leads to better cleaning efficiency and reduced overflowing. Plus, they provide valuable data to help with compliance of environmental regulations.

• Agriculture

  In agriculture, these liquid level sensors are used to monitor water levels in irrigation systems, reservoirs, and ponds. These probe sensors help measure soil moisture levels to automate watering systems and help plants get the right amount of water. This results in better crop yields and efficient water use. Plus, they help in managing resources effectively.

• Food and Beverage Industry

  In the food and beverage industry, level sensor probes are used to measure levels of liquids like milk, beer, and juice in tanks. Capacitive and hydrostatic probes help ensure the right amount of liquid is in the right place during processing. They also help monitor ingredient levels in mixing tanks to ensure no shortage of key items during production. This leads to better quality control and consistent products across the board.

• Pharmaceuticals

  In the pharmaceutical industry, level sensor probes are used to monitor levels in mixing containers and storage tanks. They help ensure precise measurements during the mixing of chemicals and medicines. These probes provide accurate readings to maintain safety during drug production. There is also no compromise on quality, as accurate levels matter for effective medicine. Probes monitor levels in containers and help prevent overflow or empty containers, which can cause problems during production.

Factors to Consider When Purchasing Level Sensor Probes

• Liquid Properties

  The properties of the liquid being measured should be considered when selecting liquid sensor probes. The probe's material and sensing technology have to be compatible with the fluid's chemical composition, as in corrosive or chemically reactive fluids like acids and bases. For non-conductive liquids, a capacitive probe may be suitable, whereas, for conductive liquids, a hydrostatic probe may be used.

• Tank Material and Thickness

  The thickness and material of the tank or vessel containing the liquid should also be taken into account. Ultrasonic and radar sensor probes work well across thick walls. Meanwhile, penetrating probes like conductivity or pressure require a thin barrier. Steel, plastic, and other materials have different effects on the probe's ability to measure accurately. Understanding the tank construction helps choose a probe that will efficiently work for the task at hand.

• Range and Accuracy

  It is important to consider the measurement range and required accuracy of the equipment before using it. These probe sensors are available in different lengths and can measure at a range of levels. Depending on the application, it may need high precision, as in pharmaceutical production, or might be wel enough for general bulk storage. Selecting a probe with the right specifications ensures readings are accurate and do not end up compromising safety or efficiency.

• Temperature and Pressure

  One of the key factors to consider is the operating temperature and pressure range. Many remote liquid level sensors are available in high or low temperatures for highly sensitive or volatile liquids. Similarly, in high-pressure environments like deep tanks or underground caves, a hydrostatic probe designed for high-pressure conditions should be selected. At any regular level, the probe must remain functional regardless of extreme conditions.

• Installation

  One must consider the complexity of installation and the maintenance needs of liquid level sensor probes before purchasing them. Some probes are simple and easy to install and can retrofit existing systems. Others require special mounting or power supply, which proves quite inconvenient. Besides, while some are maintenance-free, many require regular calibration or cleaning. Realizing these factors beforehand avoids unnecessary complications when getting the probe installed and working properly.

Q&A

Q. What is a level sensor?

A. A level sensor is an instrument used to detect the presence or absence of a particular material at a certain level within a container, tank, or process. These sensors find the typical applications in industries like food production, water purification, and chemicals, where they help monitor and manage the contents effectively.

Q. How does a level sensor work?

A. The method used depends on the type of sensor. Hydrostatic sensors work by measuring pressure at the fluid's surface; capacitive sensors check capacitance between plates, while ultrasonic ones bounce sound waves off the surface. Radar sensors do the same as ultrasonic but with electromagnetic waves. In essence, all these sensors measure the level of fluids by measuring physical properties.

Q. When does one use a hydrostatic level sensor?

A. A hydrostatic level sensor is used when a high level of precision measurement of liquid level is needed, especially in deep tanks or natural bodies of water. It works well in stable environments and gives accurate pressure readings to calculate the liquid level. It's also suitable for heavy-duty applications like monitoring oil and gas reservoir levels.

Q. Is there any difference between ultrasonics and radar?

A. While both are non-contact methods, they use different waves to measure level. Ultrasonic uses sound waves, and radar uses radio waves. Radar works better than ultrasonic in harsh conditions, like high temperatures or with dusty environments. Ultrasonic can be inaccurate with surface turbulence or interferers.
