Types of Inner Coil Springs and Their Applications
An inner coil spring is a mechanical device typically made from spring steel or similar alloys, designed to store mechanical energy and release it as needed. These springs are crucial in various machines and systems where force application, shock absorption, or return mechanisms are required. They are widely used across industries such as automotive, aerospace, industrial manufacturing, oil and gas, and consumer electronics.
Depending on the nature of the force they exert and their design characteristics, inner coil springs come in several specialized types. Each type serves a unique function and is selected based on the specific operational requirements of the system it supports. Understanding these types helps engineers and technicians choose the most appropriate spring for optimal performance, durability, and efficiency.

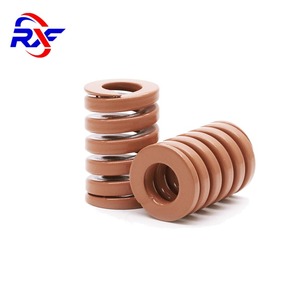

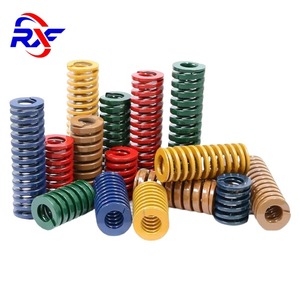

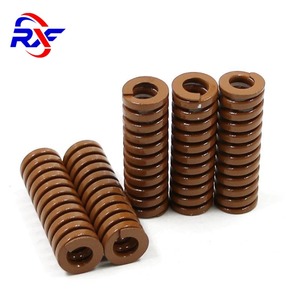

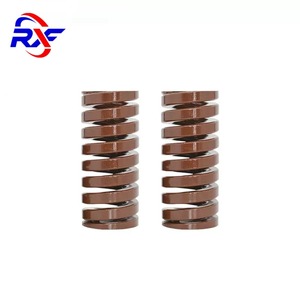

Compression Springs
Designed to resist compressive forces, compression springs are among the most commonly used types of inner coil springs. When compressed, they generate a restoring force that pushes back against the applied load.
Advantages
- High load-bearing capacity
- Versatile design adaptable to many applications
- Cost-effective solution for general use
- Available in various sizes and materials
Limitations
- May buckle under excessive lateral loads
- Requires proper alignment for optimal performance
Best for: Automotive suspensions, scales, heavy machinery, valves, and shock absorbers
Torsion Springs
These springs operate by twisting around an axis when torque is applied. Torsion springs are specifically engineered to absorb and store rotational energy, providing resistance against twisting motion.
Advantages
- Excellent torque control
- Precise angular positioning
- Compact design with high efficiency
- Durable under repeated cycles
Limitations
- More complex design and installation
- Limited to rotational force applications
Best for: Clothespins, hinges, garage door mechanisms, and medical devices requiring precise rotation
Extension Springs
Also known as tension springs, extension springs are designed to create pulling force between attached components. They extend when pulled apart and attempt to bring those components back together once the force is released.
Advantages
- Effective in applications requiring pulling action
- Self-contained design with hooks or loops
- Consistent return force over time
- Can be custom-tailored to specific lengths and tensions
Limitations
- Wear-prone at attachment points
- May lose elasticity if overstretched
Best for: Trampolines, drawer closing systems, automatic return mechanisms, and agricultural equipment
Constant Force Springs
These are precision-engineered springs that maintain a nearly constant force throughout their deflection range. Typically constructed from coiled strips of spring steel, they deliver consistent resistance regardless of how far they're extended.
Advantages
- Uniform force delivery
- Long life cycle with minimal fatigue
- Ideal for repetitive motion applications
- Space-saving cylindrical form factor
Limitations
- Specialized manufacturing increases cost
- Limited to linear motion applications
Best for: Seatbelt retractors, cable reels, adjustable tension devices, and window counterbalances
Flat Springs
Unlike traditional coiled springs, flat springs are formed from flat metal strips bent into shapes that allow them to flex under load. They are particularly effective in applications requiring lateral movement or compact solutions.
Advantages
- Low profile design ideal for tight spaces
- High flexibility and deflection capability
- Simple construction with fewer parts
- Effective in electrical and mechanical contacts
Limitations
- Lower load capacity compared to coiled types
- May require additional support structures
Best for: Electrical switches, clips, fasteners, and circuit breakers
Belleville Washers (Disc Springs)
Shaped like a conical disc, Belleville washers act as highly efficient axial-load springs. They are often stacked in series or parallel to achieve different levels of spring rate and load capacity.
Advantages
- High load capacity in small space
- Adjustable through stacking configurations
- Excellent vibration damping properties
- Resistant to loosening under dynamic loads
Limitations
- Complex design calculations required
- Higher cost per unit load compared to other types
Best for: Bolted joints, valve actuators, pressure vessels, and heavy-duty machinery
Wire Form Springs
Custom-shaped springs fabricated from wire stock, wire form springs are designed to perform specific functions not achievable with standard spring types. They can be shaped into complex geometries to meet unique engineering needs.
Advantages
- Highly customizable shapes and sizes
- Multifunctional design capabilities
- Quick prototyping and production options
- Can combine multiple spring actions
Limitations
- Tooling costs may be higher for custom designs
- Quality control requires precision manufacturing
Best for: Custom assemblies, electronic connectors, furniture hardware, and robotics
| Type | Force Type | Key Characteristics | Common Applications |
|---|---|---|---|
| Compression Spring | Pushing | Resists compressive loads, available in open or closed ends | Automotive suspensions, valves, scales |
| Torsion Spring | Twisting | Stores rotational energy, arms provide torque transfer | Hinges, garage doors, medical instruments |
| Extension Spring | Pulling | Uses hooks/loops, resists stretching | Trampolines, drawer slides, agricultural machinery |
| Constant Force Spring | Linear Pulling | Delivers uniform force over long extensions | Seatbelts, cable reels, window balances |
| Flat Spring | Lateral Flexing | Thin strip design, flexible under side load | Electrical contacts, clips, fasteners |
| Belleville Washer | Axial Compression | Conical shape provides high load in limited space | Bolt preloading, pressure vessels, hydraulic systems |
| Wire Form Spring | Varies | Custom shapes for multifunctional applications | Robotic joints, furniture, electronics |
Expert Tip: Always consider environmental factors like temperature, corrosion, and load frequency when selecting an inner coil spring. For high-precision applications, consult with a spring engineer to ensure optimal material selection and dimensional tolerances.
Specifications and Maintenance of Inner Coil Springs
Key Specifications to Consider
Inner coil springs are critical components in mechanical systems where controlled compression and energy absorption are required. Understanding their specifications is essential for selecting the right spring for your application and ensuring long-term reliability.
Wire Diameter
The thickness of the wire used in constructing the coils plays a crucial role in determining the spring's performance characteristics. A thicker wire increases stiffness and load-bearing capacity but reduces flexibility, making it suitable for heavy-duty applications. Conversely, thinner wire offers greater compliance and flexibility, ideal for precision mechanisms that require fine-tuned movement and response.
Selecting the appropriate wire diameter depends on factors such as operating load, expected deflection, and environmental conditions. Engineers often balance these considerations to achieve optimal performance without sacrificing durability.
Number of Coils
The total number of active coils directly affects how easily the spring can be compressed. Springs with more coils tend to compress more readily under load, providing smoother operation and better shock absorption. Fewer coils result in stiffer behavior, which may be preferred in high-load or structural support applications.
This specification must be matched carefully to the intended function. For example, suspension systems typically use springs with more coils for comfort, while industrial machinery might favor fewer coils for rigidity and strength.
Spring Diameter
The outer diameter of the inner coil spring determines its compatibility with surrounding components and mounting structures. Larger diameters generally allow for higher load capacities and improved stability, especially in axial loading scenarios.
When specifying spring diameter, ensure it fits within the available space and aligns properly with mating parts. Misalignment or improper fit can lead to uneven stress distribution and premature failure.
Material Composition
Most inner coil springs are manufactured from high-strength steel alloys, though other materials like stainless steel, titanium, or composite materials may be used depending on the environment and performance requirements. The choice of material significantly impacts the spring’s fatigue resistance, corrosion protection, and overall longevity.
For instance, stainless steel is preferred in corrosive environments, while titanium offers weight savings without compromising strength in aerospace applications. Always match material properties to the operational demands of the system.
Heat Treatment
To enhance mechanical properties, inner coil springs undergo heat treatment processes such as quenching and tempering. These treatments increase hardness, improve tensile strength, and boost resistance to fatigue caused by repeated loading cycles.
Properly heat-treated springs maintain dimensional stability and resist permanent deformation under stress, contributing to longer service life and consistent performance over time.
Load Capacity
Each inner coil spring is rated for a specific maximum load capacity—the force it can withstand before experiencing plastic deformation or failure. This rating is crucial for ensuring safe and reliable operation within design limits.
Exceeding the recommended load capacity accelerates wear and can cause catastrophic failure. Always verify that the selected spring meets or exceeds the expected operational loads in your system.
| Specification | Importance | Selection Tips |
|---|---|---|
| Spring Constant (Stiffness) | High | Expressed in Newtons per millimeter (N/mm), this defines how much force is needed to compress the spring by a given distance. Choose based on desired responsiveness and system dynamics. |
| Free Length | Medium | The length of the spring when unloaded; important for fitting within confined spaces and ensuring proper pre-load settings. |
| End Configuration | High | Grinding, closed, open, or tangential ends affect seating, alignment, and load distribution. Select based on mounting method and contact surfaces. |
| Surface Finish | Medium | Coatings like zinc plating, powder coating, or phosphate improve corrosion resistance and reduce friction between coils. |
Essential Maintenance Practices
Maintaining inner coil springs ensures they perform reliably and last as long as possible. Here are key maintenance strategies:
Important: Never attempt to repair a damaged inner coil spring. Once signs of fatigue or deformation appear, replace the spring immediately. Using compromised springs can lead to equipment malfunction, safety hazards, and increased risk of system failure.
How to Choose Inner Coil Springs
Selecting the right inner coil springs is essential for achieving optimal mechanical performance, durability, and application-specific functionality. Whether used in automotive suspension systems, industrial machinery, or other engineering applications, careful consideration of several key factors ensures long-term reliability and satisfaction.
Spring Material
The material composition of an inner coil spring plays a critical role in its strength, resilience, and environmental resistance. Choosing the appropriate material depends on the operational demands and environmental exposure.
- Carbon Steel: Offers excellent strength and fatigue resistance at a cost-effective price, ideal for general-purpose applications.
- Alloy Steel: Provides enhanced toughness and thermal stability, suitable for heavy-duty and high-stress environments.
- Stainless Steel: Resists corrosion and oxidation, making it perfect for humid, marine, or chemically exposed conditions.
- Titanium Alloys: Deliver lightweight strength with superior fatigue resistance, often used in aerospace and high-performance racing applications.
Key Tip: For outdoor or corrosive environments, consider stainless steel or coated carbon steel options to extend service life.
Spring Size and Dimensions
Proper sizing is crucial for ensuring compatibility and functional efficiency. The dimensions directly influence the spring's mechanical behavior and load characteristics.
- Free Length: The overall length when not under load must match the design constraints of the system.
- Wire Diameter: Affects strength and stiffness; thicker wire increases load capacity but reduces flexibility.
- Outer/Inner Diameter: Determines fit within surrounding components and affects torsional stability.
- Total Coils: Influences spring rate and deflection characteristics—more coils typically mean softer compression.
Measurement Note: Always double-check specifications against manufacturer tolerances before installation.
Spring Type and Functionality
Different types of inner coil springs serve distinct mechanical purposes. Understanding their roles helps in selecting the most appropriate type for your specific use case.
- Compression Springs: Designed to resist compressive forces; commonly found in shock absorbers, valves, and clutches.
- Extension/Tension Springs: Resist stretching forces and are often used in garage doors, trampolines, and agricultural equipment.
- Torsion Springs: Store rotational energy and release torque when twisted; typical applications include clothespins and hinges.
- Conical Springs: Provide variable spring rates and reduced solid height, useful in compact space-constrained designs.
Application Insight: Use conical springs when space limitations require minimized compressed height without sacrificing load capacity.
Spring Rate and Load Capacity
These two interrelated properties define how the spring will perform under pressure and what kind of mechanical response you can expect.
- Spring Rate (k): Measured in pounds per inch (lb/in), determines how much force is needed to compress the spring by one inch.
- Load Capacity: Refers to the maximum weight or force the spring can handle before permanent deformation occurs.
- Deflection Range: The distance a spring travels when compressed between loaded and unloaded states.
- Stress Distribution: Even stress distribution across coils prevents premature failure and extends lifespan.
Performance Guidance: High-rate springs offer stiffer resistance but may sacrifice ride comfort or vibration absorption.
Selection Advice: When uncertain about exact specifications, consult with a professional engineer or spring supplier. They can help analyze your application’s requirements and recommend the best combination of material, size, and type for long-term performance and safety.
| Material Type | Strengths | Best For | Lifespan Expectation |
|---|---|---|---|
| Carbon Steel | High strength, economical | General automotive, industrial uses | Moderate to long with proper coating |
| Alloy Steel | Enhanced fatigue resistance, heat tolerance | Racing, heavy machinery, commercial vehicles | Long-lasting under high-stress conditions |
| Stainless Steel | Corrosion-resistant, durable | Marine, chemical processing, medical devices | Very long in corrosive environments |
| Titanium Alloy | Lightweight, high strength-to-weight ratio | Aerospace, motorsports, luxury vehicles | Exceptional longevity with premium cost |
Environmental Considerations
Environmental conditions significantly affect the longevity and performance of inner coil springs. Selecting materials and coatings suited to the operating environment is essential for avoiding premature failure.
- Humid or wet environments benefit from stainless steel or zinc-plated finishes
- Chemical exposure requires specialized coatings or non-reactive alloys
- Extreme temperatures demand high-temperature alloys or heat-treated steels
- Vibratory or cyclic loading environments need materials with high fatigue resistance
Important: Salt spray testing can provide valuable data on corrosion resistance for outdoor applications.
Quality Assurance and Customization
Purchasing from reputable manufacturers ensures consistent quality and performance. Many suppliers also offer customization options tailored to unique applications.
- Look for ISO-certified manufacturers for guaranteed quality standards
- Custom winding patterns can optimize performance for specific needs
- Heat treatment options enhance material properties
- Coatings like powder paint or epoxy add protection and aesthetics
Recommendation: For specialty applications, work with suppliers offering CAD modeling and prototype testing services.
Final Recommendation: Always balance performance needs with budget considerations. While premium materials and custom solutions offer superior performance, they may not be necessary for every application. Start with standard, high-quality options and upgrade only if initial results don't meet expectations.
How to DIY and Replace Inner Coil Spring
Replacing inner coil springs is a critical suspension maintenance task that can significantly improve your vehicle's ride quality, handling, and safety. While this type of repair can be complex and potentially dangerous due to the high tension in the springs, it can be completed safely at home with the right tools, knowledge, and precautions.
Safety Warning: Working with coil springs involves significant risk due to stored energy. Always use proper spring compressors and follow all safety guidelines. If you're not confident in your mechanical abilities, consult a qualified mechanic.
Preparation: Essential Tools and Information
Before beginning the replacement process, thoroughly review your vehicle’s service manual for specific instructions related to your make and model. Ensure you have all necessary tools on hand to complete the job efficiently and safely:
- Jacking Equipment: Use a floor jack rated for your vehicle's weight and pair it with sturdy jack stands to securely support the car during work.
- Lug Wrench: Select a lug wrench with the correct socket size to loosen and tighten wheel nuts without damaging them.
- Socket and Ratchet Set: Needed for removing bolts securing the strut assembly. A breaker bar may also be useful for stubborn fasteners.
- Spring Compressor: An essential tool for safely compressing coil springs before disassembly or installation. Make sure it’s compatible with your spring dimensions.
- Torque Wrench: Ensures that bolts are tightened to the manufacturer’s specifications, preventing under- or over-tightening which could lead to failure.
Pro Tip: Consider purchasing a spring compressor rental from an auto parts store if you don’t own one. It’s a worthwhile investment for this specific task and ensures professional-grade safety.
Step-by-Step Replacement Guide
- Loosen Wheel Nuts and Lift Vehicle
- Use the lug wrench to slightly loosen the wheel nuts while the vehicle is still on the ground.
- Position the floor jack under the appropriate jacking point and raise the vehicle until the tire is off the ground.
- Secure the vehicle on jack stands before proceeding.
- Remove the Wheel and Access Strut Assembly
- Completely remove the wheel nuts and take the wheel off to access the strut assembly.
- Follow the service manual instructions to locate and remove components blocking access to the strut.
- Disassemble the Strut and Remove Old Spring
- Disconnect the brake hose bracket (if applicable) and remove the nut connecting the strut to the steering knuckle.
- Lower the knuckle away from the strut to gain access to the entire strut assembly.
- Remove the top nut of the strut and carefully pull the strut out of the vehicle.
- Compress and Replace the Spring
- Mount the old spring in the spring compressor and slowly compress it until the coils are no longer under tension.
- Remove the upper spring seat and carefully decompress the spring.
- Clean the spring seat and inspect other components like the strut bearing and dust boot for wear.
- Install the new coil spring, ensuring it sits properly in the mounting location. Use the spring compressor again to compress the spring as needed for reinstallation.
- Reassemble and Reinstall the Strut
- Reinstall the strut into the vehicle following the reverse order of disassembly.
- Reconnect any components such as the brake hose bracket or steering knuckle bolt.
- Ensure all bolts are torqued to the manufacturer’s specifications using a torque wrench.
- Final Steps and Safety Checks
- Reinstall the wheel and hand-tighten the lug nuts.
- Lower the vehicle to the ground and fully tighten the lug nuts to the recommended torque setting.
- Test the suspension by bouncing the vehicle to ensure everything is seated properly.
| Stage | Key Tasks | Potential Risks | Recommended Tools |
|---|---|---|---|
| Preparation | Review service manual, gather tools | Incomplete tool list, incorrect procedures | Service manual, floor jack, jack stands |
| Strut Removal | Wheel removal, strut disassembly | Damaged threads, fluid leaks | Lug wrench, socket set, breaker bar |
| Spring Compression | Old spring removal, new spring installation | Spring injury, improper fitment | Spring compressor, gloves, eye protection |
| Reassembly | Strut reinstallation, component tightening | Under-torqued bolts, missed connections | Torque wrench, ratchet set |
| Testing | Vehicle lowering, bounce test, final checks | Uneven suspension, noise issues | Wheel alignment tools (optional) |
DIY Reminder: After completing the replacement, consider checking your vehicle’s alignment. Even though replacing springs doesn't directly affect alignment angles, lifting or lowering the vehicle can sometimes influence suspension geometry, especially in modified setups.
By following these detailed steps and safety precautions, you can confidently replace the inner coil spring in your vehicle. Always prioritize safety, double-check torque specs, and refer to your vehicle-specific service manual for precise instructions tailored to your model.
Frequently Asked Questions About Inner Coil Springs
Inner coil springs are designed to endure significant stress and can potentially last the lifetime of a vehicle, often reaching 100,000 miles or more. However, their actual lifespan is influenced by several key factors:
- Spring Quality: High-grade materials like tempered steel with protective coatings significantly extend durability.
- Vehicle Type: Performance vehicles may experience faster wear due to aggressive driving conditions.
- Road Conditions: Frequent travel over rough terrain or potholes increases mechanical stress on suspension components.
- Load Capacity: Regularly carrying heavy loads strains the springs beyond their intended design parameters.
Regular inspections during tire rotations or oil changes can help identify early signs of fatigue such as sagging ride height or uneven tire wear patterns.
Attempting to repair damaged inner coil springs is strongly discouraged for critical reasons:
- Safety Concerns: Welding or clamping compromised springs creates weak points that could fail unexpectedly while driving.
- Structural Integrity: Once metal fatigue occurs or cracks develop, the spring's load-bearing capacity becomes unpredictable.
- Cost Analysis: Professional repairs often approach the cost of new OEM-quality replacements without providing equivalent reliability.
Modern replacement coil springs from reputable manufacturers come with improved designs and corrosion-resistant treatments, making them a safer, more economical choice in the long run.
A compromised inner coil spring initiates a cascade of negative effects throughout the vehicle's systems:
- Handling Degradation: Uneven spring tension causes poor weight distribution, resulting in unstable cornering and reduced traction control effectiveness.
- Ride Comfort Issues: Broken coils create irregular suspension movement, transmitting excessive road vibrations to the cabin.
- Component Stress: Shock absorbers work overtime trying to compensate, leading to premature seal failure and fluid leaks.
- Tire Wear: Altered suspension geometry causes uneven tire contact patches, creating dangerous bald spots and reducing grip.
- Safety Risks: In extreme cases, broken spring fragments can damage brake lines or interfere with steering mechanisms.
Diagnosing symptoms like uneven ride height (more than 1-2 inches difference side-to-side), metallic clunking noises over bumps, or sudden pulling during braking indicates urgent need for inspection and potential replacement.
