Engineering tamping rammer

Types of engineering tamping rammers

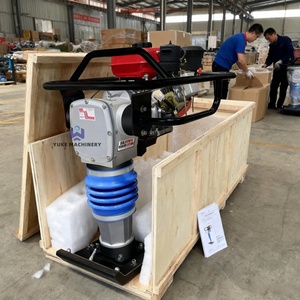

An engineering tamping rammer is a compact and heavy construction equipment used for tamping backfill, loose, excavated, and granular soils. It is also known as a soil compactor or a vertical tamper. Its main function is to increase the density of the material, improving the stability and load-bearing capacity of the ground for a construction project.

The engineering tamping rammer consists of a heavy iron/steel plate at the bottom, a power unit, a fuel tank, a handle, and an engine. The base plate of an earth rammer varies depending on the application. The shape can be circular, square, and rectangular from 30 x 40 cm to 50 x 60 cm. The weight can be from 100 kg to 500 kg or more. Heavy rammers are used for compacting trenches and embankments, while lighter ones are used for backfilling.

Tamping rammers can be classified into the following types based on their power source:

• Pneumatic tamping rammer: This type of tamper is powered by compressed air. It is widely used in road construction and other infrastructures. Pneumatic rammers are lighter in weight, making them suitable for all kinds of jobs. Air hoses are required to connect to an air compressor that is usually mounted on a truck.

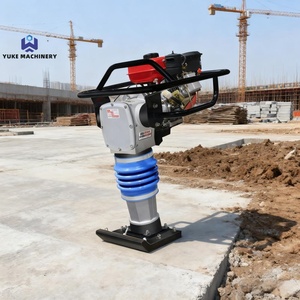

• Gasoline/Diesel tamping rammer: This type of rammer is powered by gasoline or diesel fuel. It is the most common type of engineering tamping rammer used in construction. Gasoline or diesel-powered rammers have two-stroke or four-stroke engines that vibrate the plate to compact soil. The handle is height-adjustable to allow comfortable operation by people of different heights. Modern motorized soil tampers are self-operating and are moved forward by the vibration of the engine. The operator needs to guide them only.

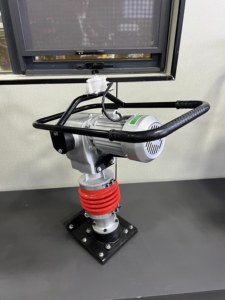

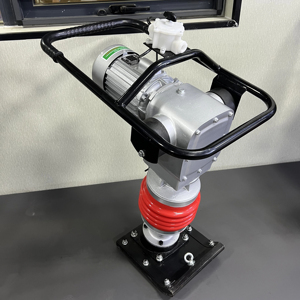

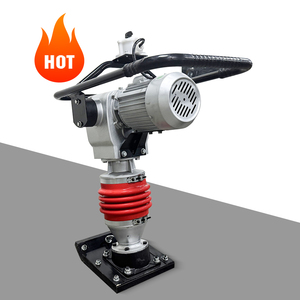

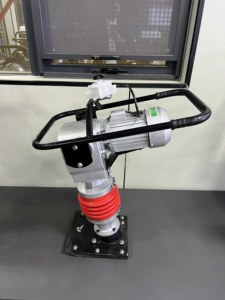

• Electric tamping rammer: An electric soil compactor works on the same principle as a gasoline or diesel-powered tamping rammer. However, it has an electric motor instead of a gasoline or diesel engine. Electric rammers are environmentally friendly and produce less noise during operation.

Specifications and Maintenance of Engineering Tamping Rammers

Specifications of an engineering rammer vary according to different models and manufacturers.

• Power Source

  The power source provides energy to the tamping rammer. It could be an electric motor, compressed air, or an internal combustion engine that runs on gasoline or diesel fuel. Different power sources offer unique advantages, such as lower emissions from electric motors or the portability of gasoline-powered engines.

• Packing Weight

  This refers to the weight of the engineering compactor. Heavier rammers, usually above 100 kg, compact better and are suitable for filling trenches and heavily loaded areas. Lighter rammers are more appropriate for remote locations. Sanitation engineers can easily move them from one place to another.

• Compaction Energy

  It represents how much work a tamping rammer compacts the soil. It is measured in joules. Higher compaction energy means better handling of material that is difficult to compact.

• Impacts per Minute

  It is the number of times the tamping foot hits the ground in one minute. Rammer engineering has different impacts per minute. A higher number helps in faster compaction of soil.

• Foot Size

  It refers to the size of the tamping base. Engineering rammers have different foot sizes based on the model or manufacturer. Smaller foot sizes work well in confined spaces, while bigger ones are appropriate for covering larger areas.

• Operating Weight

  It is the total weight of the engineering rammer, including the equipment and any liquid, such as fuel or lubricants, that it may contain. Operating weight is a factor in determining transportation and handling requirements.

When purchasing engineering tamping rammers, it is crucial to consider the maintenance requirements. Proper maintenance will ensure that the compactor performs excellently, lasts long, and prevents unnecessary breakdowns. Here are some maintenance tips to keep in mind:

• Regular Inspection

It is important to inspect the engineering rammers on a regular basis carefully. Look for any damages or signs of wear and tear and take note of important adjustments, lubrication, and tightening requirements. A closer inspection will reveal potential issues that could lead to equipment failure or accidents.

• Regular maintenance

Like any other equipment, an engineering rammer requires routine maintenance. This includes changing the oil, servicing the air filters, and calibrating the compaction settings. Routine maintenance helps to extend the lifespan of the tamping rammer and ensure it performs efficiently.

Applications of engineering tamping rammers

The main purpose of an engineering tamping rammer is to compact soils. However, this machine can perform other functions on a construction site. It is one of the machines that help to build stable and strong foundations. An engineering rammer achieves this by eliminating air pockets in the soil. Hence, the construction team can use the equipment to create solid foundations for bridges and roads. The engineering tamping rammer works on all types of soils, especially loose and sandy soils.

Generally, loose soil has a lot of air pockets. Using an engineering rammer on such soils increases density by minimizing air pockets. Other areas where the engineering rammer is useful include trenches and slopes. The equipment can easily access these areas due to its compact size. Before laying concrete, slope, and trench the soils need compaction to avoid future flaws in construction. Using an engineering tamper rammer prevents the occurrence of cracks after some time.

Other beneficial functions of an engineering rammer include:

• Compacting backfill in trenches after excavation
• Compressing sub-bases before laying foundations, concrete, or asphalt
• Compacting asphalt after laying roads to increase durability
• Leveling filled areas to create a smooth surface before construction
• Working on tight areas and overlays that need compaction

Besides creating stable foundation areas, the engineering rammer can quickly work on overlay areas that need compaction. Such areas include regions bordering large slabs and deep footings. Operators can easily maneuver the equipment to stabilize overlay areas. Other overlay areas include places where there were excavations.

Using an engineering tamping rammer is more efficient than manual rammer tampers. It speeds up the construction process by compacting soil at 12 square feet per minute. Moreover, the soil compactor can work continuously for 30 minutes on any soil type. The efficiency of this machine saves labor costs and time significantly.

How to Choose Engineering Tamping Rammer

During stock selection, buyers should focus on the following features to meet customers' needs.

• Soil Types: Identify the sub-base material characteristics and job sites customers may encounter problems or needs. Customer's soil types can vary, so they may use different compactors. Select various tamping rammers with diverse tussocks and weights.
• Local Terrain: Consider the item's nature and elevation of the work. In straggling areas, buyers should pick compactors with efficient energy sources, like gasoline-powered ones. In urban areas where noise can be a problem, choose electric ones.
• Tamping Rammer Size Extremely: Stock Engineering contractors take into account the size of the jobs customers perform. They may typically use small, medium, large, or extra-large compactors depending on the size of the area they work. Consider selecting a variety of Engineering tamping rammers for buyers' customers.
• Compression Power: Gauge the compression force measured in kilonewtons (kN). It directly impacts the degree of compaction. Buyers should choose rammers with different kN ratings as customers' needs.
• User Interfaces: User interface considerations include the starting system, control handles, and machine weight. A convenient and straightforward starting interface with like an easy-to-pull starting cord improves handling. Some tampers have touchscreen operations that ensure smooth control over the devices. Selecting compactors with varying weights and ergonomic handles and systems is buyer's option.

Engineering tamping rammer Q&A

Q1. What is the difference between a rammer and a compactor?

A1. A compactor is a broader term and may refer to different types of compacting equipment, including plate compactors, which compact a larger area by moving back and forth. An engineering tamping rammer is a type of portable mechanical compactor designed to work in confined spaces. It excels at compacting soil and other loose materials vertically and precisely.

Q2. How to operate a tamping rammer safely?

A2. Before starting the engine, the user should inspect the machine for fuel or oil leaks and check the condition of the guide handles and the rammer foot. All loose parts should be tightened. If the rammers' handles are the ones to be hold, then they should wear long pants and short sleeves so that the body can get some coverage. Also, ensure that the guard belt is not too far away from the operational belt guard area. Struck and pinch hazards should be identified, and operatives should be trained in emergency shut-off and runaway procedures. Only well-trained and authorized personnel should be able to use the rammer.

Q3. Is a tamping rammer difficult to operate?

A3. A tamping rammer is straightforward to use. However, it's crucial to familiarize the operator with the specific model before using it to ensure proper handling and understanding of its functionalities. Most machines have a manual that should be read before operating the rammer.

Q4. Can a tamping rammer be used to compact gravel?

A4. Yes, gravel is one of the many materials that can be compacted using a tamping rammer. The device is designed to compact various types of soil, including cohesive, uneven, and gravel soils. However, to achieve optimum results when dealing with gravel, the smallest particles should be something like sand. Also, the gravel should be well distributed in the area to be compacted before bringing the rammer to work.
