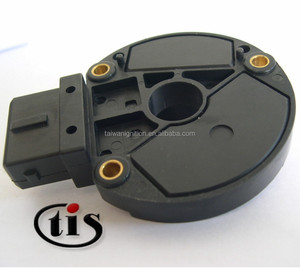

Types of Crank Angle Sensor for Mitsubishi
The crank angle sensor for Mitsubishi, commonly referred to as the crankshaft position sensor, plays a vital role in the engine's operation by detecting the rotational speed and exact position of the crankshaft. This data is sent to the Engine Control Unit (ECU), which uses it to precisely control ignition timing, fuel injection, and other critical engine functions. Proper functionality of this sensor ensures optimal performance, fuel efficiency, and emissions control.
There are three primary types of crank angle sensors used in Mitsubishi engines:
Hall Effect Sensors
These sensors utilize a semiconductor chip and a permanent magnet to detect changes in the magnetic field caused by the rotation of the crankshaft. They generate a precise digital signal that the ECU interprets to determine crankshaft position and speed.
Advantages
- High accuracy and reliability
- Consistent signal output at all RPM levels
- Less susceptible to interference from dirt or debris
- Digital signal ensures clean communication with ECU
Limitations
- More expensive than analog alternatives
- May require additional circuitry for signal conditioning
- Complex design can be harder to diagnose when faulty
Best for: Modern Mitsubishi engines requiring high precision and reliable engine timing
Magnetic Sensors
Also known as inductive sensors, these generate an analog voltage signal based on the movement of a toothed wheel near the sensor. As the crankshaft rotates, the magnetic field fluctuates, producing a sinusoidal waveform that the ECU interprets.
Advantages
- No external power required
- Simple, robust construction
- Reliable in harsh environments
- Cost-effective replacement option
Limitations
- Signal weakens at low RPM
- Prone to contamination issues over time
- Less accurate than digital sensors at idle or low speeds
Best for: Older Mitsubishi models and applications where cost-effectiveness is prioritized
Variable Reluctance Sensors
Similar to magnetic sensors but with a more refined electromagnetic structure. These sensors produce a variable AC signal depending on the position and speed of the crankshaft, offering improved resolution compared to basic inductive sensors.
Advantages
- Better signal resolution than standard magnetic sensors
- Self-powered design
- Durable under extreme temperature variations
- Effective across a wide RPM range
Limitations
- Signal strength depends on engine speed
- Requires careful calibration for accurate readings
- Can be sensitive to air gap alignment
Best for: Mid-range Mitsubishi models needing enhanced signal clarity without full digital complexity
Optical Sensors
Utilize a light source and a rotating slotted disc to detect crankshaft position. These sensors offer extremely high precision and are often found in high-performance or racing applications.
Advantages
- Ultra-precise position detection
- Immune to electromagnetic interference
- Excellent for high-speed applications
Limitations
- Expensive and complex design
- Prone to failure if dirt or oil blocks the light path
- Rarely used in consumer vehicles like most Mitsubishi models
Best for: High-performance tuning or specialized racing Mitsubishi builds
Capacitive Sensors
These sensors detect changes in electrical capacitance due to the crankshaft’s movement. They offer non-contact sensing capabilities and are ideal for certain niche applications.
Advantages
- Contactless measurement reduces wear
- Good resistance to vibration
- Useful in sealed or protected environments
Limitations
- Uncommon in automotive use
- High cost for limited benefit in typical engine applications
- Requires specialized mounting and calibration
Best for: Specialized industrial or research-based engine setups
MEMS Sensors
Microelectromechanical systems (MEMS) combine mechanical and electronic components on a microscopic scale. These advanced sensors offer compact size and high sensitivity for next-generation engine management systems.
Advantages
- Miniaturized design for space-constrained areas
- High sensitivity and fast response times
- Potential for integration with smart engine controls
Limitations
- Still emerging technology in automotive use
- Higher cost and limited availability
- May require updated ECU firmware or software
Best for: Future-ready Mitsubishi models and advanced engine diagnostics platforms
| Type | Signal Type | Power Requirement | Precision | Common Use Case |
|---|---|---|---|---|
| Hall Effect | Digital | External Power Required | Excellent | Modern engines, high-performance tuning |
| Magnetic | Analog | No Power Needed | Good | Older models, budget-friendly replacements |
| Variable Reluctance | Analog | No Power Needed | Very Good | Mid-range models, versatile applications |
| Optical | Digital | External Power Required | Excellent | Racing engines, high-end modifications |
| Capacitive | Analog/Digital | Varies | Good | Specialized applications, industrial settings |
| MEMS | Digital | External Power Required | Excellent | Future tech, advanced diagnostics |
Expert Tip: When replacing any type of crank angle sensor in your Mitsubishi, ensure you match the original equipment specifications. For Hall Effect and MEMS sensors, proper grounding and wiring connections are crucial to avoid signal errors and intermittent engine start issues.
Specifications and Maintenance of Crank Angle Sensor for Mitsubishi
The Crank Angle Sensor for Mitsubishi plays a critical role in the engine's ignition system. Its primary function is to monitor the position and rotational speed of the crankshaft, transmitting real-time data to the Engine Control Unit (ECU). This information enables the ECU to precisely time fuel injection and spark plug ignition, ensuring optimal engine performance, efficiency, and emissions control.
Key Specifications to Consider
When selecting or evaluating a crank angle sensor for your Mitsubishi vehicle, it's essential to understand the technical specifications that determine compatibility and functionality:
Sensor Type
Mitsubishi vehicles commonly use two types of crank angle sensors: magnetic reluctance sensors and Hall-effect sensors. Magnetic sensors generate an AC signal based on the rotation of a toothed wheel near the sensor, while Hall-effect sensors produce a digital square wave signal by detecting changes in magnetic fields as a notched rotor passes by.
Advantages: Magnetic sensors are cost-effective and durable, while Hall-effect sensors offer greater accuracy at low RPMs and are less susceptible to electromagnetic interference.
Voltage Output Compatibility
The voltage output of the sensor must align with the input requirements of the ECU. Most modern systems operate within a range of 5V to 12V DC, depending on the vehicle model and year.
Note: Incorrect voltage levels can lead to erratic signals, misfires, or even trigger diagnostic trouble codes (DTCs) like P0335.
Connector Type & Wiring Configuration
Each Mitsubishi engine variant uses a specific connector type and wiring configuration. Ensuring the replacement sensor matches the original equipment manufacturer (OEM) connector design guarantees seamless installation and reliable electrical contact.
Tip: Always verify pin count, shape, and orientation before purchasing a new sensor.
Operating Temperature Range
A quality crank angle sensor should be engineered to withstand extreme under-hood temperatures ranging from -40°C to 125°C. This ensures consistent operation in all driving conditions, including cold starts and high-load scenarios.
Failure Risk: Sensors with inadequate thermal resistance may fail prematurely due to heat degradation or cold-induced brittleness.
Frequency Response & Signal Accuracy
The sensor must accurately detect rapid changes in crankshaft position, especially during high-RPM operation. A typical frequency response requirement ranges from 0 Hz at idle up to 2 kHz or more at redline speeds.
Performance Impact: Inaccurate or delayed readings can cause timing errors, leading to reduced power, poor fuel economy, and increased emissions.
Mounting Compatibility & Physical Design
Proper fitment depends on the sensor’s physical dimensions and mounting method. It must align perfectly with the crankshaft reluctor ring or notched wheel and securely fasten into the engine block or timing cover.
Installation Tip: Some models require precise air gap adjustment between the sensor tip and rotating component to ensure reliable signal generation.
| Specification | Importance | Selection Tips |
|---|---|---|
| Sensor Technology | High | Choose based on application—Hall-effect for modern ECUs, magnetic for older systems |
| Signal Voltage | High | Match sensor output to ECU input specs; check service manual if unsure |
| Connector Match | High | Ensure exact match in pin layout and housing design |
| Temperature Tolerance | Medium | Look for sensors rated for industrial-grade temperature ranges |
| Frequency Bandwidth | Medium-High | Higher bandwidth preferred for performance or modified engines |
| Mounting Dimensions | High | Measure OEM unit or consult fitment charts before purchase |
Essential Maintenance Practices
Regular inspection and maintenance of the crank angle sensor help prevent unexpected failures and maintain peak engine performance:
Important: A faulty crank angle sensor can mimic other sensor failures or ignition problems. Always perform a thorough diagnosis using proper scan tools and reference material before replacing parts. Misdiagnosis can lead to unnecessary part replacements and unresolved issues.
How to Choose a Crank Angle Sensor for Mitsubishi Vehicles
Selecting the correct crank angle sensor for your Mitsubishi vehicle is crucial for ensuring proper engine performance and reliability. The crank angle sensor plays a vital role in monitoring the position and rotational speed of the crankshaft, which directly affects fuel injection timing, ignition timing, and overall engine efficiency. Choosing the right one involves understanding several key factors that influence compatibility, durability, and performance.
Engine Type Considerations
The type of engine in your Mitsubishi significantly influences the specifications required for the crank angle sensor. Gasoline and diesel engines operate differently, requiring sensors with varying degrees of precision and response times.
- Gasoline Engines: Require high-precision sensors due to the rapid combustion process. Accurate timing ensures optimal spark plug firing and fuel injection, preventing misfires and poor fuel economy.
- Diesel Engines: While still reliant on accurate readings, diesel engines typically have less stringent timing requirements compared to gasoline engines, allowing for slightly more tolerance in sensor accuracy.
- Hybrid/Sport Models: High-performance or hybrid models may require specialized sensors engineered for enhanced responsiveness and durability under stress.
Key Tip: Always verify your engine type by checking the VIN or consulting the owner's manual before purchasing a replacement sensor.
Vehicle Model and Year Compatibility
Mitsubishi has produced a wide range of vehicles over the years, each equipped with different engine configurations and electronic control systems. Ensuring the crank angle sensor matches your specific model and year is essential for compatibility and functionality.
- Older models (pre-2000s) often use simpler, analog-style sensors.
- Newer models feature digital sensors integrated into complex engine management systems.
- Some late-model vehicles may require programming or calibration after installation.
Pro Tip: Use an OEM part number lookup tool or contact a certified Mitsubishi dealer for exact fitment information.
Quality and Reliability Factors
A high-quality crank angle sensor contributes to long-term engine health and performance. Inferior sensors can lead to intermittent failures, reduced fuel efficiency, and even engine damage over time.
- Prioritize sensors from reputable brands like Denso, Bosch, or ACDelco.
- Look for OE (Original Equipment) or OE-equivalent ratings for maximum compatibility.
- Check customer reviews and expert recommendations for real-world performance insights.
- Ensure the sensor has proper sealing and corrosion resistance for longevity.
Insight: Investing in a quality sensor upfront can prevent costly diagnostics and repairs later.
Installation Requirements and Accessibility
Depending on your mechanical skill level and tools available, the ease of installation should be considered when choosing a crank angle sensor.
- Some sensors are easily accessible near the crankshaft pulley or flywheel housing.
- Others may require removal of multiple components, increasing labor complexity.
- DIY-friendly designs include pre-aligned mounting tabs and clear wiring harnesses.
- Professional-grade units might come without instructions or require advanced diagnostic tools.
Recommendation: If unsure about installation, opt for a unit that comes with detailed instructions or consult a qualified mechanic.
Budgeting Advice: While price shouldn't be the sole deciding factor, it’s important to balance cost with quality. A mid-range sensor from a trusted brand often provides the best value—offering reliable performance without excessive cost. Avoid extremely cheap sensors unless they're from verified sellers with good return policies.
| Use Case | Recommended Quality Tier | Estimated Price Range | Lifespan Expectation |
|---|---|---|---|
| Daily commuter (standard driving) | OE Replacement / High-quality aftermarket | $30 - $80 | 50,000 - 100,000 miles |
| High-mileage older vehicle | Economy grade (with warranty) | $20 - $40 | 30,000 - 60,000 miles |
| Performance or modified engine | Race-grade / Specialty sensors | $90 - $150+ | Varies with tuning and usage |
| Fleet or commercial use | Heavy-duty / Commercial-grade | $60 - $120 | 60,000 - 120,000 miles |
How to DIY and Replace Crank Angle Sensor for Mitsubishi
Replacing the crank angle sensor (also known as the crankshaft position sensor or CPS) in your Mitsubishi is a common maintenance task that can often be completed at home with basic tools. This guide provides a detailed, step-by-step approach to help you perform the replacement safely and effectively.
Diagnosis Tip: Before replacing the crank angle sensor, it's crucial to confirm that the sensor is indeed faulty. Symptoms of a failing CPS include difficulty starting the engine, stalling, misfiring, or poor fuel economy. Use an OBD-II scanner to check for diagnostic trouble codes such as P0335 (Crankshaft Position Sensor A Circuit Malfunction).
Tools and Materials Required
- Socket wrench set – For removing bolts and connectors
- Torque wrench – Ensures proper tightening according to manufacturer specs
- Extension socket – Helps reach tight spaces where the sensor may be located
- New crank angle sensor – Ensure compatibility with your Mitsubishi model and year
- Scraper – For cleaning gasket surfaces and residue
- Clean shop rag – For wiping down surfaces and keeping the area clean
Step-by-Step Replacement Guide
- Disconnect the Battery
To ensure safety and prevent electrical shorts, begin by disconnecting the negative terminal of your vehicle’s battery. This also resets any error codes stored in the ECU, which may need to be cleared after installation.
- Locate the Crank Angle Sensor
The CPS location varies depending on your Mitsubishi model. Common locations include:
- On top of the engine near the crankshaft pulley
- On the side of the engine block
- Near the transmission bell housing
Consult your vehicle’s service manual if unsure about the exact location.
- Disconnect the Electrical Connector
Before removing the sensor, carefully disconnect its electrical connector. If the connector is stubborn, use a flathead screwdriver to gently pry it loose. Avoid pulling on the wires themselves to prevent damage.
- Remove the Old Sensor
Use a socket wrench to remove the mounting bolt(s) securing the sensor. Once the bolt is removed, carefully pull the sensor out of its housing. If it’s stuck due to heat or corrosion, gently twist while pulling to loosen it.
- Clean the Mounting Surface
Inspect the mounting hole and surrounding area for dirt, debris, or old gasket material. Use a scraper to remove any buildup and wipe the surface clean with a shop rag. A clean surface ensures a proper seal for the new sensor.
- Install the New Crank Angle Sensor
Insert the new sensor into the mounting hole. Align it properly and hand-tighten the bolt first to avoid cross-threading. Then use a torque wrench to tighten the bolt to the manufacturer’s specifications (typically between 8–12 Nm). Over-tightening can damage the sensor.
- Reconnect the Electrical Connector
Firmly push the electrical connector back onto the sensor until you hear a click indicating it is securely connected. Double-check that the connection is snug and free from corrosion.
- Reconnect the Battery
Reattach the negative battery cable and ensure it is tightly secured. Turn the ignition key to power up the system and verify that no warning lights remain illuminated.
Pro Tip: After installing the new sensor, take your vehicle for a short test drive to ensure everything is functioning correctly. Listen for smooth engine operation and watch for any unusual vibrations or sounds. If your check engine light remains on, you may need to use an OBD-II scanner to clear the codes.
Troubleshooting Tips After Installation
- If the engine still doesn't start, double-check all connections and ensure the sensor is fully seated.
- If the check engine light persists, scan for codes again to see if another issue exists.
- Monitor fuel efficiency and idle quality over the next few days to confirm the problem has been resolved.
| Stage | Key Action | Common Mistake | Recommended Tool |
|---|---|---|---|
| Preparation | Confirm sensor failure before replacement | Replacing without proper diagnosis | OBD-II scanner |
| Safety | Disconnecting the battery | Forgetting to disconnect the battery | Socket wrench |
| Removal | Gentle removal of old sensor | Forcing removal and damaging threads | Flathead screwdriver |
| Installation | Using torque wrench for final tightening | Over-tightening the sensor | Torque wrench |
| Testing | Clearing error codes and road testing | Not verifying function after install | OBD-II scanner |
Understanding the Crank Angle Sensor: Common Questions Answered
A faulty or failing crank angle sensor can cause several noticeable symptoms that affect engine performance and drivability. The most common signs include:
- Difficulty Starting the Engine: Especially after the engine has been running, you may experience trouble restarting the vehicle.
- Engine Misfires or Runs Roughly: Irregular combustion due to incorrect ignition timing can lead to uneven idle and rough operation.
- Poor Acceleration or Power Loss: A malfunctioning sensor can disrupt fuel injection timing and spark control, leading to sluggish acceleration.
- Increase in Fuel Consumption: Incorrect timing data can cause inefficient fuel usage, resulting in reduced miles per gallon.
- Illuminated Check Engine Light: This is often one of the first indicators of an issue with the crank angle sensor.
- Stalling: Sudden loss of signal from the sensor can cause the engine to shut off unexpectedly while driving.
- Transmission Issues: In some cases, shifting gears becomes difficult or erratic due to improper coordination between engine and transmission systems.
If you notice any combination of these symptoms, it's advisable to have your vehicle diagnosed by a qualified mechanic as soon as possible to avoid further damage to the engine or other components.
While both sensors play crucial roles in engine timing and performance, they serve different functions within the engine management system:
| Feature | Crank Angle Sensor | Camshaft Angle Sensor |
|---|---|---|
| Primary Function | Detects position and rotational speed of the crankshaft | Detects position of the camshaft relative to the crankshaft |
| Main Use | Controls ignition timing and fuel injection timing | Controls valve timing for optimal intake/exhaust efficiency |
| Location | Near the crankshaft (often on the engine block or flywheel housing) | Typically mounted near the top of the engine on or near the cylinder head |
| Signal Type | Provides RPM and reference point for piston position | Identifies which cylinder is at top dead center (TDC) for sequential fuel injection and ignition |
| Impact of Failure | Can prevent engine from starting; causes misfires, stalling, and poor performance | May allow engine to start but will run inefficiently with increased emissions and reduced power |
Together, these two sensors enable the engine control unit (ECU) to precisely manage fuel delivery, ignition timing, and valve operation for maximum efficiency and performance.
No, a vehicle cannot operate without a functioning crank angle sensor. This component is essential for the proper operation of the engine because:
- It provides critical information about the crankshaft's position and rotational speed to the ECU.
- The ECU uses this data to determine when to fire the spark plugs and inject fuel into the cylinders.
- Without accurate timing signals, the engine cannot coordinate the combustion process effectively.
In some vehicles, if the sensor fails while the engine is running, the ECU may attempt to use pre-programmed default values to keep the engine running—this is known as "limp mode." However, performance will be severely compromised, and prolonged operation in this state can cause damage.
Attempting to start the engine with a completely failed crank angle sensor typically results in no-start conditions, as the ECU lacks the necessary data to initiate the combustion cycle.
Crank angle sensors are designed to be durable and generally have a long service life. On average:
- They can last anywhere from **5 to 10 years**, or even longer depending on various factors.
- Some high-quality sensors may last the lifetime of the vehicle under normal operating conditions.
However, their longevity can be affected by several external and internal factors, including:
- Operating Conditions: Extreme temperatures, exposure to moisture, and excessive vibration can accelerate wear.
- Vehicle Maintenance: Regular oil changes and avoiding overheating help prolong sensor life.
- Electrical Issues: Voltage spikes, short circuits, or corrosion in wiring harnesses can cause premature failure.
- Sensor Quality: OEM (Original Equipment Manufacturer) sensors tend to be more reliable than lower-quality aftermarket replacements.
If you're experiencing recurring issues related to engine timing or performance, having the crank angle sensor inspected or replaced may resolve the problem.
Technically, yes, a crank angle sensor can be cleaned, but it is strongly advised against attempting this as a DIY project due to the following reasons:
- Delicate Components: The internal electronics and magnetic elements are sensitive and can be easily damaged during cleaning attempts.
- Improper Tools: Using the wrong solvents or tools can degrade the sensor’s materials or coating, affecting its functionality.
- Lack of Diagnostic Skills: Without proper diagnostic equipment, it's hard to determine whether the sensor is actually dirty or simply failed.
- Reinstallation Risks: Even if cleaned successfully, improper reinstallation or calibration can lead to continued engine problems.
If you suspect that the crank angle sensor is contaminated or malfunctioning, it's best to consult a professional mechanic who can:
- Perform accurate diagnostics using specialized tools
- Determine whether the issue is indeed the sensor or another part of the system
- Replace or properly service the sensor if necessary
In many cases, replacing the sensor is more cost-effective and reliable than trying to clean it, especially considering the labor involved and the risk of causing further damage.
