Types of Casting Cam Shafts
A casting cam shaft is a critical engine component responsible for controlling the timing and motion of valve operation in internal combustion engines. It contains one or more cams that convert rotational motion into linear motion, enabling precise opening and closing of intake and exhaust valves. These mechanisms are essential for maintaining engine efficiency, power output, and fuel economy.
Casting cam shafts are widely used due to their cost-effective manufacturing process and adaptability across various engine types, including petrol and diesel engines. The design and material composition of each type determine its performance characteristics, durability, and suitability for specific applications.
Single Overhead Camshaft (SOHC)
This type features a single camshaft positioned above the cylinder head. It operates both intake and exhaust valves via rocker arms or direct followers. SOHC designs typically have two or four cams per cylinder head.
Advantages
- Simpler design with fewer moving parts
- Lower production costs
- Good reliability and maintenance friendliness
- Efficient for moderate-performance engines
Limitations
- Limited valve train flexibility
- Less optimal airflow compared to DOHC
- Not ideal for high-revving engines
Best for: V6 and inline engines, economy vehicles, general-purpose use
Dual Overhead Camshaft (DOHC)
Featuring two camshafts per cylinder head — one for intake valves and one for exhaust valves — this design allows independent control over valve timing, improving engine breathing and performance.
Advantages
- Superior airflow management
- Better performance at high RPMs
- Supports variable valve timing (VVT)
- Ideal for turbocharged/supercharged setups
Limitations
- More complex and heavier design
- Higher manufacturing and repair costs
- Increased maintenance requirements
Best for: High-performance engines, small-displacement turbo engines, racing applications
Flathead Camshaft
Also known as a "valve-in-block" design, the flathead casting camshaft places all valve components within the engine block, below the piston chamber. This layout simplifies construction but limits airflow efficiency.
Advantages
- Simple, robust design
- Inexpensive to manufacture and maintain
- Compact and lightweight
- Easy access for repairs
Limitations
- Poor airflow dynamics
- Lower power output potential
- Outdated technology in modern engines
Best for: Vintage cars, agricultural machinery, budget-friendly utility engines
Pushrod Camshaft
Also referred to as an overhead valve (OHV) configuration, this type positions the camshaft near the crankshaft at the bottom of the engine. Motion is transferred to the valves via pushrods and rocker arms located at the top of the engine.
Advantages
- Proven reliability and longevity
- Robust design suitable for heavy-duty use
- Cost-effective for large displacement engines
- Excellent torque delivery at low RPMs
Limitations
- Higher weight and complexity
- Less efficient at high RPMs
- Vibration-prone at higher speeds
Best for: V8 engines, trucks, muscle cars, older automotive models
Roller Camshaft
This advanced design uses roller lifters instead of flat tappets, reducing friction and wear between the cam lobes and followers. Roller camshafts are engineered for high-efficiency and high-stress environments.
Advantages
- Reduced mechanical friction
- Improved engine efficiency and longevity
- Allows aggressive cam profiles
- Enhanced performance at high RPMs
Limitations
- More expensive than flat-tappet designs
- Requires precision machining and setup
- Complexity adds to maintenance needs
Best for: Racing engines, modified street performance vehicles, high-horsepower builds
Solid vs. Hydraulic Lifter Camshaft
This classification refers to the type of valve clearance adjustment mechanism used in conjunction with the camshaft. Solid lifter systems require manual adjustment, while hydraulic lifters use oil pressure to automatically compensate for clearance changes.
Advantages
- Solid lifters offer precise control at high RPMs
- Hydraulic versions provide maintenance-free operation
- Both types support customization for different engine needs
Limitations
- Solid lifters need frequent adjustments
- Hydraulic systems can experience pump-up or leakage
- Each type requires specific tuning expertise
Best for: Solid – Racing & track use; Hydraulic – Daily drivers, OEM applications
| Type | Design Characteristics | Performance Level | Maintenance Needs | Typical Use Case |
|---|---|---|---|---|
| Single Overhead Camshaft (SOHC) | One camshaft per cylinder head, shared valve control | Moderate | Low | Economy cars, standard passenger vehicles |
| Dual Overhead Camshaft (DOHC) | Two camshafts per cylinder head, separate valve control | High | Moderate | High-performance vehicles, sports cars, compact turbo engines |
| Flathead Camshaft | Valves located in the engine block | Low | Very Low | Vintage vehicles, utility engines |
| Pushrod Camshaft | Camshaft at engine base, pushrod-actuated valves | Moderate to High | Moderate | Trucks, muscle cars, large V8 engines |
| Roller Camshaft | Uses roller followers for reduced friction | Very High | High | Racing engines, modified performance vehicles |
| Solid/Hydraulic Lifter | Adjustable or self-adjusting valve clearance | Varies by application | High (solid), Low (hydraulic) | Solid – Track/race; Hydraulic – Street/stock engines |
Expert Tip: When selecting a casting camshaft for performance upgrades, consider matching it with compatible valvetrain components like lifters, pushrods, and springs to ensure optimal functionality and prevent premature wear.
Specifications and Maintenance of Casting Cam Shafts
Critical Specifications for Casting Cam Shafts
Selecting the right casting cam shaft requires careful consideration of multiple technical specifications to ensure compatibility, performance, and longevity. Here's a detailed breakdown of the most important factors buyers should evaluate:
Material Composition
The material used in casting cam shafts significantly impacts their durability, heat resistance, and overall performance. Common options include carbon steel, stainless steel, and various alloy steels.
- Carbon Steel: Offers excellent strength and wear resistance at a cost-effective price point. Suitable for standard applications but may be prone to corrosion if not properly coated.
- Stainless Steel: Provides superior corrosion resistance, making it ideal for high-humidity or marine environments. Often used in performance engines where longevity is critical.
- Alloy Steel: Combines the benefits of different elements to enhance strength, toughness, and thermal stability. Popular in heavy-duty and high-performance automotive applications.
Dimensions and Sizing
Precise dimensional specifications are crucial for proper engine function and fitment. Key measurements include length, diameter, journal size, and lobe geometry.
Business buyers must ensure that camshaft dimensions match OEM specifications or aftermarket performance requirements. Incorrect sizing can lead to misalignment, increased wear, or catastrophic engine failure.
Note: Always cross-reference part numbers with manufacturer catalogs to verify dimensional accuracy before bulk purchasing.
Number of Cams (Lobes)
The number of cams on a casting cam shaft varies depending on the engine configuration. Typical ranges span from 2 to 8 lobes or more for complex V-configurations and overhead cam designs.
Each lobe controls valve operation timing and lift. Buyers should consider common engine types in their market—such as inline-four, V6, or V8 configurations—when selecting appropriate camshaft models.
Lobe Profile Design
The profile shape of each cam lobe determines valve timing characteristics, affecting engine power output, fuel efficiency, and emissions.
- Street Performance: Balanced profiles for everyday driving with moderate lift and duration.
- Racing Applications: Aggressive profiles with higher lift and longer duration for maximum horsepower at high RPMs.
- Eco-Friendly Designs: Optimized for improved fuel economy through precise valve control and reduced pumping losses.
Heat Treatment Processes
Proper heat treatment enhances hardness, wear resistance, and structural integrity. Common techniques include induction hardening, case hardening, and nitriding.
Induction-hardened camshafts develop a hardened surface layer while maintaining a ductile core, providing an optimal balance between strength and impact resistance.
Surface Finish Quality
A smooth, precision-finished surface minimizes friction between moving parts and prolongs component life. Surface treatments like polishing, chrome plating, and DLC (diamond-like carbon) coatings further improve performance.
Coated camshafts offer additional protection against wear and scuffing, particularly under high-load conditions or during cold starts when lubrication is minimal.
| Specification | Performance Impact | Selection Guidance |
|---|---|---|
| Hardness Rating | High | Measured on Rockwell scale; typical range for camshafts is RC 50-60 depending on application |
| Surface Roughness (Ra) | Medium | Lower Ra values indicate smoother surfaces; aim for Ra ≤ 0.8μm for critical contact areas |
| Tensile Strength | High | Should meet or exceed 800 MPa for most automotive applications |
| Conformance to Standards | Very High | Look for ISO 9001, IATF 16949, or CE certifications ensuring quality manufacturing processes |
Essential Maintenance Practices for Casting Cam Shafts
Proper maintenance is vital to maximize the service life of casting cam shafts and maintain optimal engine performance. Implement these best practices:
Important: If any camshaft wear or damage is detected, inspect related components—including lifters, pushrods, rocker arms, and timing components—for matching signs of distress. Replacing only the camshaft without addressing worn ancillaries can lead to premature re-failure and costly repeat repairs.
How to Choose Casting Cam Shafts
Selecting the right casting cam shaft is essential for ensuring engine performance, longevity, and compatibility with your vehicle's specifications. Whether you're repairing a worn component or upgrading for enhanced performance, understanding the key selection criteria will help you make an informed decision that aligns with your business needs.
Engine Type Considerations
The type of engine—gasoline or diesel—plays a significant role in determining which camshaft profile will deliver optimal results. Each engine type has unique powerband requirements that influence camshaft design and performance characteristics.
- Gasoline engines: Typically benefit from camshafts with higher lift and duration profiles to maximize high RPM horsepower output
- Diesel engines: Require camshafts optimized for low-end torque delivery due to their compression ignition nature and operating range
- Valve timing differences: Diesel engines often require different lobe separation angles and valve timing to accommodate combustion characteristics
Technical tip: Always verify the camshaft's compatibility with the engine's firing order and valve train configuration
Vehicle Make and Model Specificity
Camshafts are engineered to precise tolerances based on specific vehicle platforms. Selecting the correct casting cam shaft for the exact make and model ensures proper fitment, timing alignment, and overall engine function.
- Manufacturer-specific designs account for cylinder head geometry and valvetrain dynamics
- OE (Original Equipment) replacements maintain factory performance characteristics
- Application-specific variations exist even within the same brand's product line
Critical check: Cross-reference part numbers with OEM databases or reputable suppliers before purchase
Engine Modifications and Performance Upgrades
If the engine has been modified beyond stock specifications, these changes must be considered when selecting a camshaft. The camshaft should complement and enhance the benefits of existing modifications.
- Forced induction setups may require reduced overlap to prevent cylinder scavenging issues
- High-flow cylinder heads allow for more aggressive cam profiles without compromising efficiency
- Exhaust system improvements enable better breathing for performance-oriented cam selections
- Intake system enhancements work synergistically with increased cam duration
Performance synergy: Consider camshaft selection as part of a comprehensive engine package rather than in isolation
Torque vs. Power Delivery Preferences
Understanding whether your application prioritizes low-end torque or high-RPM power will guide your camshaft selection toward the appropriate lobe profile and timing characteristics.
- Towing applications: Benefit from shorter duration and moderate lift for improved low-speed responsiveness
- Racing applications: Prefer longer duration and higher lift for maximum high-RPM power output
- Street driving: Requires balanced profiles that maintain drivability across all RPM ranges
- Idle quality: Shorter duration profiles typically produce smoother idle characteristics
Key metric: Pay attention to advertised duration and lift specifications at .050" tappet lift
Budget Optimization Tip: While casting cam shafts represent a cost-effective option compared to forged alternatives, consider evaluating total cost of ownership. In high-performance or heavy-duty applications, investing in a forged camshaft might provide better long-term value through extended service life and superior performance characteristics.
| Application Type | Recommended Cam Type | Lobe Separation Angle | Durability Rating |
|---|---|---|---|
| Fleet maintenance | Casting cam shaft | 110-114° | ★★★☆☆ |
| Light performance upgrade | Heat-treated casting | 106-110° | ★★★★☆ |
| Heavy-duty towing | Reinforced casting | 108-112° | ★★★★☆ |
| Race-prepared engine | Forged steel | 102-108° | ★★★★★ |
DIY Replacement Guide for Casting Cam Shaft
Replacing a casting cam shaft is a moderately complex task that requires mechanical knowledge and precision, but it can be successfully completed as a DIY project with the right preparation. The cam shaft plays a crucial role in engine operation by controlling the opening and closing of the intake and exhaust valves. A worn or damaged cam shaft can lead to poor performance, reduced fuel efficiency, and unusual engine noises. This guide provides a comprehensive walkthrough to help you replace your casting cam shaft safely and effectively.
Safety Warning: Always disconnect the battery before starting work and ensure the vehicle is securely supported on jack stands. Wear safety glasses and gloves when handling engine components and fluids.
Step-by-Step Replacement Process
- Preparation and Workspace Setup
- Choose a clean, well-lit, and spacious area to work on your vehicle
- Gather essential tools such as socket sets, wrenches, screwdrivers, torque wrench, and camshaft alignment tools
- Acquire replacement parts including the new casting cam shaft, gaskets, seals, timing belt or chain (if applicable), and fresh engine oil
- Consult your vehicle's service manual for specific instructions related to your make and model
- Take photos during disassembly to aid reassembly later
- Engine Cooling and Battery Disconnection
- Ensure the engine is completely cool before beginning any work to avoid burns
- Turn off the ignition and disconnect the negative terminal of the car battery to prevent electrical shorts
- Securely support the vehicle using jack stands if undercarriage access is required
- Component Removal for Cam Shaft Access
- Remove the air intake system to gain better access to the engine bay
- Take off the valve covers after removing all bolts and fasteners
- Drain the engine oil and coolant if necessary to prevent leaks during disassembly
- Remove the timing belt or chain cover and mark the timing position for accurate reinstallation
- Disconnect any wiring harnesses or sensors attached to the cylinder head
- Removing the Old Cam Shaft
- Locate the camshaft bearing caps and carefully remove them one at a time, keeping track of their positions
- Lift the cam shaft straight out of the cylinder head to avoid damaging the lobes or journals
- Inspect the old cam shaft for signs of wear, scoring, or lobe damage to understand potential engine issues
- Clean the cylinder head surface thoroughly before installing the new cam shaft
- Preparing the New Cam Shaft
- Compare the new casting cam shaft with the old one to ensure compatibility in terms of journal size, lobe profile, and overall length
- Apply a thin layer of clean engine oil to the camshaft journals and lobes to reduce initial wear upon startup
- If your engine uses hydraulic lifters, ensure they are properly seated and not collapsed before installation
- Installing the New Cam Shaft
- Position the new cam shaft into the cylinder head, aligning it properly with the journals
- Reinstall the bearing caps in the correct sequence and orientation
- Tighten the cap bolts gradually and evenly to the manufacturer’s specified torque values
- Reset the timing belt or chain according to the service manual specifications to maintain proper engine synchronization
- Reassembly of Engine Components
- Replace the valve covers using new gaskets to prevent oil leaks
- Reconnect any wiring harnesses or sensors that were disconnected earlier
- Reinstall the timing belt or chain cover and air intake system
- Refill the engine with the recommended type and amount of oil
- If drained, refill the cooling system with the proper coolant mixture
| Phase | Key Tasks | Potential Risks | Essential Tools |
|---|---|---|---|
| Preparation | Manual review, tool gathering, part verification | Mismatched camshaft, missing tools | Service manual, digital camera, marking pens |
| Disassembly | Battery disconnect, component removal, timing marking | Fluid spills, lost timing marks | Ratchet set, drain pans, zip ties |
| Cam Removal | Bearing cap removal, careful extraction | Damaged journals, lost parts | Camshaft holder, soft cloth |
| Installation | Proper alignment, lubrication, torque specs | Improper seating, over-torquing | Torque wrench, alignment gauge |
| Reassembly | Gasket replacement, fluid refill, system checks | Leaks, incorrect oil level | New gaskets, funnel, dipstick |
Expert Tip: After installation, rotate the engine by hand several times to ensure smooth operation and proper valve timing before starting it up. This helps identify any binding or interference issues early.
Final Steps and Testing
- Initial Engine Start-Up
- Reconnect the battery and turn the key to prime the fuel system
- Start the engine and let it idle while listening for abnormal noises like ticking or knocking
- Monitor the oil pressure gauge or warning light to ensure proper lubrication
- Post-Installation Checks
- Check for oil leaks around the valve covers and timing cover
- Verify the engine runs smoothly without hesitation or misfires
- Confirm there are no error codes using an OBD-II scanner
- Perform a brief test drive to assess overall performance
By following this detailed guide, you should be able to successfully replace your casting cam shaft and restore optimal engine performance. If you encounter unexpected difficulties or are unsure about any step, consult a professional mechanic to avoid causing further damage to your vehicle.
Camshaft Q&A: Understanding Engine Timing and Performance

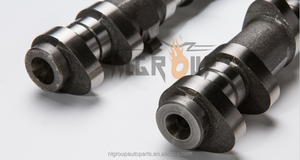

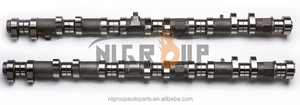

A casting cam shaft, more commonly referred to as a cast iron camshaft, is a critical component in an internal combustion engine responsible for precisely controlling the opening and closing of the engine's intake and exhaust valves. The design and profile of the lobes (commonly called "grinds") on the camshaft determine the timing, duration, and lift of the valve operation. These factors directly influence the engine's performance characteristics, including power delivery, torque curve, and fuel efficiency.
The casting process involves pouring molten metal into a mold to create the camshaft shape. This method is cost-effective and suitable for mass production while still offering adequate durability for many applications. When designing a camshaft, engineers consider multiple factors such as engine type (e.g., overhead valve or overhead cam), displacement, compression ratio, and intended use (street, racing, or industrial).
The cam shaft (or camshaft) is typically located within the engine block or cylinder head, depending on the engine configuration. In older pushrod engines (also known as overhead valve or OHV engines), the camshaft resides inside the engine block, below the pistons and cylinders. It operates the valves via lifters, pushrods, and rocker arms.
In modern overhead cam (OHC) engines, the camshaft is positioned directly above the valves in the cylinder head. Single overhead cam (SOHC) engines have one camshaft per cylinder head, while dual overhead cam (DOHC) engines feature two camshafts—one for the intake valves and one for the exhaust valves.
This strategic placement allows the camshaft to precisely coordinate the engine’s breathing cycle—controlling when the intake and exhaust valves open and close in relation to the piston's position. Proper synchronization between the crankshaft and camshaft ensures optimal engine performance and efficiency.
The primary function of a cam shaft is to regulate the timing and motion of the intake and exhaust valves in an internal combustion engine. As the camshaft rotates (synchronized with the crankshaft via a timing belt, chain, or gear system), its eccentric lobes press against valve lifters or followers, which in turn actuate the engine's valves.
This orchestrated movement determines how long each valve remains open (duration), how far it opens (lift), and the exact timing of these events relative to the piston's position in the cylinder. By adjusting the camshaft profile—such as lobe shape, angle, and overlap (the brief period when both intake and exhaust valves are open)—engineers can tailor the engine’s behavior to emphasize:
- Low-end torque for better acceleration at lower RPMs
- High-RPM horsepower for peak performance
- Fuel efficiency and emissions compliance for everyday driving
Therefore, the camshaft plays a pivotal role in aligning an engine's mechanical operation with its intended performance goals, making it a central element in engine tuning and optimization.
Camshafts come in various materials and manufacturing methods, each suited to different engine designs and performance requirements. Below is a detailed breakdown of the most common types:
| Type | Characteristics | Applications |
|---|---|---|
| Cast Iron Cam Shafts | Made by casting molten iron into molds. They offer good wear resistance and are relatively inexpensive to produce. Often surface-hardened or nitrided for enhanced durability. | Common in OEM passenger vehicles and general-purpose engines where moderate performance and cost-effectiveness are prioritized. |
| Billet Steel Cam Shafts | CNC-machined from a solid block of steel, allowing for highly customized profiles and extreme precision. Extremely durable under high loads and RPMs. | Used in racing engines, high-performance builds, and custom motorsports applications where maximum strength and tailored performance are required. |
| Forged Steel Cam Shafts | Forged under high pressure for superior strength and fatigue resistance. More expensive than cast but less so than billet. Often used in heavy-duty engines. | Ideal for commercial vehicles, industrial machinery, and engines that operate under continuous stress or high temperatures. |
| Aluminum Cam Shafts | Lightweight and corrosion-resistant. Typically not used as standalone camshafts due to lower hardness but may be coated or used in specific low-load applications. | Occasionally found in lightweight prototype engines or aerospace applications where weight savings are critical and wear is managed through coatings or hybrid materials. |
Each type of camshaft has its own advantages and trade-offs in terms of cost, durability, customization, and suitability for various engine environments. Choosing the right camshaft depends on the engine’s purpose, operating conditions, and desired performance output.
