Types of Axle Shaft and Their Applications
An axle shaft is a vital component within a vehicle's drivetrain system, responsible for transferring rotational force from the transmission or differential to the wheels. Depending on the design and mechanical requirements of the vehicle, axle shafts come in various types, each tailored to specific applications such as front-wheel drive systems, heavy-duty trucks, or lightweight utility vehicles.
Axle shafts not only deliver power but also support the weight of the vehicle and withstand dynamic forces during acceleration, braking, and cornering. Understanding the different types of axle shafts can help you choose the right one for your vehicle’s performance needs and driving conditions.

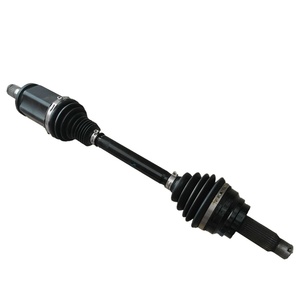

Constant Velocity (CV) Shafts
CV shafts are commonly used in front-wheel drive vehicles and feature two constant velocity joints that allow smooth power transfer while accommodating suspension movement and steering angles.
Advantages
- Smooth power delivery at varying angles
- Excellent for tight turns and variable suspension travel
- Widely used in modern passenger cars
Limitations
- More complex and expensive than other types
- Boots can wear out, leading to joint failure if neglected
- Less suited for heavy-duty applications
Best for: Front-wheel drive cars, compact SUVs, and vehicles requiring high articulation
Stub Shafts
Shorter shafts connecting the wheel hub to the differential, commonly found in independent suspension setups where each wheel moves independently for improved traction and handling.
Advantages
- Enhances off-road and uneven terrain performance
- Reduces unsprung weight for better ride quality
- Allows greater flexibility in suspension geometry
Limitations
- Not suitable for high-torque applications
- May require more frequent inspection in rugged use
- Limited load-carrying capacity compared to solid axles
Best for: Off-road vehicles, sports cars with independent suspensions, and lightweight trucks
Real Axle Shafts (Live Axles)
Also known as live axles, these shafts rotate with the wheels and are typically used in rear-wheel drive configurations. They receive power directly from the differential and are common in older or rugged vehicle designs.
Advantages
- Robust construction for durability
- Simple design with fewer components
- Ideal for towing and hauling applications
Limitations
- Heavier than independent systems
- Can affect ride comfort due to unsprung weight
- Limited traction control on uneven surfaces
Best for: Pickup trucks, classic muscle cars, trailers, and farm equipment
Double Axle Shafts
Designed for heavy-duty applications, double axle shafts consist of two interconnected shafts that evenly distribute torque across both ends, providing enhanced strength and reliability under extreme loads.
Advantages
- High torque distribution capability
- Durable under extreme stress and load conditions
- Used in commercial and industrial vehicles
Limitations
- Heavy and bulky design
- Higher cost due to complex engineering
- Not practical for standard passenger vehicles
Best for: Commercial trucks, buses, construction machinery, and large transport vehicles
| Type | Primary Use | Torque Handling | Weight | Recommended For |
|---|---|---|---|---|
| CV Shafts | Front-wheel drive systems | Moderate | Light | Passenger cars, compact SUVs |
| Stub Shafts | Independent suspension systems | Low to Moderate | Light | Off-road vehicles, sports cars |
| Real Axle Shafts | Rear-wheel drive systems | High | Heavy | Trucks, trailers, vintage vehicles |
| Double Axle Shafts | Heavy-duty applications | Very High | Very Heavy | Commercial vehicles, industrial machines |
Expert Tip: When replacing an axle shaft, especially a CV shaft, always inspect the CV boots for cracks or tears. A damaged boot can lead to premature joint failure due to contamination or loss of lubrication.
Specifications & Maintenance of Axle Shafts
Understanding axle shaft specifications is critical to making informed purchases and ensuring proper maintenance for optimal performance and durability. Axle shafts are vital components of a vehicle's drivetrain system, responsible for transferring torque from the differential to the wheels. Selecting the right axle shaft involves evaluating multiple technical factors, while regular maintenance ensures long-term reliability and safety.
Key Specifications to Consider
Material Composition
Axle shafts are typically constructed from steel alloys designed to withstand high stress and wear. The two primary types are:
- Carbon Steel: Known for its excellent balance of strength and toughness, carbon steel is commonly used in standard passenger vehicles. It provides adequate durability under normal driving conditions.
- Alloy Steel: Contains additional elements such as chromium, nickel, or molybdenum that enhance hardness, wear resistance, and fatigue strength. These shafts are ideal for heavy-duty applications like commercial trucks, off-road vehicles, and performance cars.
The material choice significantly affects the axle's ability to handle torque loads, resist bending, and endure harsh operating environments.
Length and Diameter
The physical dimensions of an axle shaft play a crucial role in determining its mechanical strength and compatibility with specific vehicle models:
- Length: Must match the distance between the differential and wheel hub precisely. Variations can cause improper alignment, vibration, or damage to connected components.
- Diameter: Larger diameters increase torsional rigidity and load capacity. High-performance and heavy-duty vehicles typically use thicker axle shafts to handle increased torque and reduce the risk of failure.
Selecting the correct length and diameter ensures safe operation and prevents premature wear or structural failure.
Spline Design and Count
Splines are precision-cut grooves along the axle shaft that allow it to engage securely with the differential gears and wheel hubs:
- More Splines: Provide better torque transmission and distribute stress more evenly across the surface, reducing the risk of spline wear or stripping.
- Spline Shape: Can vary between straight and involute profiles. Involute splines offer improved load distribution and smoother engagement, especially in high-torque applications.
Proper spline fitment is essential for maintaining driveline integrity and preventing power loss or mechanical failure during operation.
Heat Treatment Processes
Heat treatment enhances the mechanical properties of axle shafts, increasing their hardness, strength, and fatigue resistance:
- Quenching: Rapid cooling after heating to harden the outer surface while retaining core toughness.
- Tempering: Reduces brittleness caused by quenching while maintaining desired hardness levels.
- Carburizing: Adds carbon to the surface layer, creating a hardened exterior over a tough inner core—ideal for high-stress applications.
These treatments ensure axle shafts can withstand repeated torque cycles, extreme temperatures, and environmental exposure without deforming or fracturing.
| Specification | Critical Importance | Selection Guidance |
|---|---|---|
| Material Grade | High | Use alloy steel for high-torque or heavy-load applications; carbon steel for standard vehicles |
| Shaft Diameter | High | Larger diameters improve strength and longevity—especially important for modified or performance vehicles |
| Spline Count | Medium-High | Higher spline counts improve torque transfer efficiency and durability in demanding applications |
| Hardness Rating (HRC) | Medium | Look for HRC ratings between 55-60 for optimal wear resistance and toughness |
| Surface Finish | Medium | Smooth, burr-free surfaces reduce stress concentration points and extend service life |
Essential Maintenance Practices
Regular maintenance of axle shafts is essential to ensure consistent performance and prevent costly repairs. Here are key practices to follow:
- Visual Inspection: Regularly check for signs of cracks, rust, warping, or oil leaks around CV joints. Look for unusual noises or vibrations during driving, which may indicate internal damage or misalignment.
- CV Joint Lubrication: Maintain proper lubrication of constant velocity (CV) joints using high-quality grease recommended by the manufacturer. Inspect CV boots for tears or splits that could expose the joint to dirt and moisture.
- Torque Specification Compliance: When reinstalling or replacing axle shafts, always adhere to the manufacturer’s recommended torque values for fasteners. Improper tightening can lead to loosening or distortion of mating surfaces.
- Load Management: Avoid exceeding the vehicle’s towing or payload capacity, as this places undue stress on the axle shafts. Overloading accelerates wear and increases the likelihood of catastrophic failure.
- Protective Component Integrity: Examine CV boots, dust shields, and seals regularly. Replace damaged components immediately to prevent contamination and corrosion of internal parts.
Important: Always replace damaged or worn axle shafts as soon as possible. Continuing to drive with compromised shafts can result in complete failure, leading to loss of control, extensive repair costs, or even accidents. If one side shows significant wear, inspect and consider replacing both sides simultaneously for balanced performance.
How to Choose Axle Shafts
Selecting the right axle shaft for your vehicle is crucial for ensuring reliable performance, durability, and safety. Whether you're maintaining a personal vehicle or managing a commercial fleet, understanding the key factors in axle shaft selection can help you make informed decisions that align with your driving needs and operational requirements.
Vehicle Type and Application
The type and model of your vehicle play a critical role in determining the appropriate axle shaft specifications. Larger vehicles such as trucks and SUVs typically require heavy-duty axle shafts designed to withstand higher torque loads and off-road conditions. Compact cars and sedans, on the other hand, are best suited for lighter, standard axle shafts optimized for fuel efficiency and smooth urban driving.
- Trucks & SUVs: Require reinforced axle shafts capable of handling high-torque applications and rugged terrain
- Compact Cars: Benefit from lightweight axles that provide smooth operation and improved fuel economy
- Off-Road Vehicles: Should use axles with increased strength and corrosion resistance
Expert Tip: Always refer to your vehicle’s service manual or consult with a mechanic for recommended axle specs.
Driving Conditions and Terrain
Your typical driving environment significantly influences the ideal axle shaft design. If your route involves frequent travel on rough roads, gravel, mud, or uneven surfaces, an all-wheel-drive (AWD) or four-wheel-drive (4WD) axle setup may be necessary to maintain traction and stability. For city driving or highway commutes, a two-wheel-drive (2WD) axle configuration is usually sufficient and more cost-effective.
- Rural/Off-Road Use: AWD/4WD systems offer better control and durability
- Urban Driving: 2WD setups are adequate and often more economical
- Extreme Weather: Consider axles with sealed bearings and protective coatings
Note: Harsh environments accelerate wear and should factor into replacement frequency planning.
Load Capacity Requirements
One of the most important considerations when choosing an axle shaft is its load-bearing capacity. Commercial vehicles used for transporting goods must have axles rated for heavier payloads to avoid premature failure or safety risks. Passenger vehicles generally operate within standard load limits, but it's still important to match the axle rating to your vehicle's gross vehicle weight rating (GVWR).
- Commercial Trucks: Look for axles rated for Class 3 or higher duty cycles
- Vans & Delivery Vehicles: Medium-load capacity axles are typically sufficient
- Personal Vehicles: Standard OEM-rated axles work well under normal usage
Critical Check: Overloading beyond axle specifications can lead to catastrophic failures and void warranties.
Aftermarket Options and Brand Reliability
Business buyers have access to a wide range of aftermarket axle shafts from various manufacturers. While this offers flexibility in pricing and features, it's essential to choose reputable brands known for quality and reliability. Evaluate product specifications, material composition, warranty terms, and customer reviews before making a purchase decision.
- Material Quality: High-strength steel alloys ensure longevity and resistance to stress fractures
- Manufacturing Standards: Look for ISO-certified producers or OE-level tolerances
- Warranty Comparison: Extended warranties often reflect manufacturer confidence in product durability
Pro Tip: Compare at least three different suppliers before finalizing your purchase.
Installation and Maintenance Considerations
The ease of installation and long-term maintenance requirements of an axle shaft should not be overlooked. Some aftermarket shafts come pre-assembled with precision components and detailed instructions, allowing for straightforward DIY installation. Others may require specialized tools or professional expertise, which can add to overall costs. Additionally, selecting an axle with minimal wear characteristics helps reduce ongoing maintenance expenses.
- DIY-Friendly Models: Look for units with integrated seals and pre-lubricated joints
- Professional Installation: Budget for labor costs if modifications or alignment are needed
- Maintenance Intervals: Sealed axles reduce the need for regular servicing
Cost Insight: Factor in both upfront cost and lifetime ownership expenses when evaluating options.
Warranty Coverage and Customer Support
When purchasing axle shafts for business use, always review the supplier’s warranty policy and support offerings. Many reputable manufacturers provide extended warranties ranging from one to five years, offering protection against defects and unexpected failures. Strong customer support ensures timely assistance with technical questions, replacements, or troubleshooting issues that may arise after installation.
- Standard Warranty: Typically ranges from 12 to 24 months
- Extended Plans: Available for commercial-grade components
- Support Channels: Email, phone, and online resources improve response times
Best Practice: Register your product with the manufacturer to activate warranty coverage immediately.
Selection Advice: When selecting axle shafts for a fleet or business application, prioritize consistency across your vehicles. Choosing the same axle model for similar vehicles simplifies inventory management, reduces training time for mechanics, and streamlines future replacements. It also allows for easier comparison of performance data over time.
| Use Case | Recommended Axle Type | Material Grade | Key Features |
|---|---|---|---|
| Light passenger vehicles | Two-wheel drive (2WD) | Medium carbon steel | Precise balance of strength and comfort |
| City delivery vans | All-wheel drive (AWD) | Forged alloy steel | Durable under mixed road conditions |
| Heavy-duty transport | Four-wheel drive (4WD) | High-strength forged steel | Enhanced load capacity and impact resistance |
| Off-road construction vehicles | Custom-fit 4WD | Heat-treated alloy steel | Corrosion-resistant and shock-absorbing design |
DIY Guide to Replacing Axle Shafts at Home
Replacing an axle shaft is a practical DIY task that can be completed in your garage with basic tools and some mechanical knowledge. This guide provides detailed instructions for replacing axle shafts on both front-wheel drive (FWD) and rear-wheel drive (RWD) vehicles, covering everything from preparation to final testing.
Safety Warning: Always work on a securely supported vehicle using jack stands. Never rely solely on a jack. Wear safety glasses and gloves to protect yourself when working with heavy components and sharp edges.
Tools and Materials Required
- Jacks and jack stands
- Lug wrench or impact gun
- Socket set and ratchet
- Axle nut socket (typically 30–36mm)
- Hammer or mallet
- Torque wrench (for proper bolt tightening)
- New axle shaft (OEM or high-quality aftermarket)
- Gloves and safety glasses
- Drip pan (for collecting any leaked fluids)
Step-by-Step Replacement Process
- Lift the Vehicle Safely
- Park the vehicle on a flat, level surface and engage the parking brake.
- Use a floor jack to lift the vehicle at the designated jacking point near the affected wheel.
- Securely support the vehicle using jack stands placed under sturdy frame points.
- Loosen the wheel lug nuts slightly before lifting, then fully remove them after lifting and secure the wheel aside.
- Remove the Axle Nut
- Locate the large axle nut in the center of the wheel hub—this secures the axle to the hub assembly.
- Using an axle nut socket and breaker bar, loosen and remove the nut. In some cases, you may need to use a hammer to break it free if it’s rusted.
- Set the nut aside in a safe place where it won't roll away.
- Disconnect the CV Joint (Front-Wheel Drive Vehicles Only)
- For FWD vehicles, locate the inner CV joint connected to the transmission.
- Use a socket set to remove the bolts securing the CV joint to the transmission flange.
- You may need to gently pry the joint loose with a pry bar once the bolts are removed.
- Be careful not to damage the transmission seal during this process.
- Disconnect Suspension Components (if Necessary)
- Some vehicles require disconnecting suspension parts like control arms or sway bars to provide clearance for axle removal.
- Refer to your vehicle's service manual for specific instructions and torque specs for reassembly.
- Label each disconnected component to ensure correct reinstallation later.
- Remove the Old Axle Shaft
- With the axle nut removed and CV joint disconnected, grasp the axle shaft and pull it straight out from the hub.
- If it’s stuck, use a rubber mallet or dead-blow hammer to gently tap the hub while pulling the axle out.
- For RWD vehicles, the axle may slide out from the differential housing without much resistance.
- Install the New Axle Shaft
- Before installation, inspect the new axle for any signs of damage or wear.
- Align the splines of the new axle with the wheel hub and push it straight in until it seats properly.
- If applicable, reconnect the CV joint to the transmission flange and secure it with the original bolts.
- Ensure all connections are tight and properly aligned to avoid vibration or premature wear.
- Reassemble Suspension Components (if Disconnected)
- Reinstall any suspension parts that were removed earlier, such as control arms or sway bar links.
- Tighten all bolts to the manufacturer's recommended torque specifications found in the service manual.
- Double-check that all fasteners are secure and no tools or hardware are left behind.
- Reinstall the Wheel and Lower the Vehicle
- Place the wheel back onto the hub and hand-tighten the lug nuts.
- Lower the vehicle slightly so the wheel makes contact with the ground, then tighten the lug nuts in a star pattern to ensure even pressure.
- Once fully lowered, double-check all lug nuts with a torque wrench to meet the manufacturer's specification.
- Start the engine and let it idle for a few minutes. Listen for unusual noises and check for leaks around the axle area.
| Replacement Stage | Key Actions | Common Issues | Recommended Tools |
|---|---|---|---|
| Lifting & Preparation | Secure vehicle placement, proper jack stand positioning | Improper support leading to instability or injury | Jacks, jack stands, wheel chocks |
| Axle Nut Removal | Proper socket selection, controlled force application | Stripped nut, damaged threads | Axle nut socket, breaker bar, mallet |
| CV Joint Disconnection | Correct bolt identification, gentle prying | Transmission seal damage, lost bolts | Socket set, pry bar, magnetic tray |
| Installation | Smooth alignment, proper seating of splines | Binding, improper fit causing noise/vibration | Rubber mallet, torque wrench |
| Final Assembly | Correct torque settings, leak checks | Loose connections, fluid leaks | Torque wrench, fluid catch pan |
DIY Tip: Before purchasing a new axle shaft, verify the part number matches your vehicle make, model, and year. Some axles come pre-greased and ready to install, while others may require additional maintenance steps. Also, consider replacing both axles at the same time if one has failed, especially on higher-mileage vehicles.
Post-Replacement Checks and Testing
After completing the replacement, perform the following checks before taking your vehicle on the road:
- Verify all suspension and CV joint bolts are tightened to spec.
- Check for any fluid leaks around the transmission or differential (if applicable).
- Ensure the wheel spins freely without binding or resistance.
- Take the vehicle for a short test drive at low speeds to listen for abnormal noises or vibrations.
- Recheck the axle nut torque after driving a short distance to ensure it remains secure.
Frequently Asked Questions About Axle Shafts
An axle shaft is a critical mechanical component in a vehicle’s drivetrain system. It serves as the link between the differential and the wheels, transmitting rotational power from the engine to the wheels to enable movement. The axle shaft must be strong enough to handle high levels of torque while maintaining precision in alignment and balance. In modern vehicles, axle shafts are typically made from durable steel alloys to withstand both dynamic loads and long-term wear.
The axle shaft performs two essential functions within a vehicle:
- Power Transmission: It transfers rotational force (torque) from the differential to the wheels, allowing the vehicle to move forward or backward depending on gear selection.
- Load Bearing: It supports a significant portion of the vehicle's weight, working alongside suspension components to maintain stability, balance, and control during driving.
In addition to these primary roles, the axle shaft contributes to the overall handling characteristics of the vehicle by influencing traction and responsiveness. Proper maintenance of the axle shaft ensures smooth operation and helps prevent premature wear on related drivetrain components.
Yes, every motor vehicle with a powered drivetrain includes one or more axle shafts. Whether the vehicle uses front-wheel drive (FWD), rear-wheel drive (RWD), or all-wheel drive (AWD), the axle shaft is an integral part of its design. In FWD vehicles, the axle shafts are often referred to as half-shafts or CV axles due to their connection with constant velocity joints that allow for wheel articulation. RWD vehicles typically feature solid or live axles that carry more load and transmit higher torque levels. AWD systems may incorporate multiple axle shafts across both axles to provide power to all four wheels simultaneously or selectively.
No, a vehicle cannot operate without a functioning axle shaft. Since the axle shaft is responsible for transferring power from the transmission and differential to the wheels, any damage or absence will result in the inability to propel the vehicle. Even if the engine runs and the transmission shifts properly, without an intact axle shaft, the rotational energy cannot reach the wheels to generate motion. Driving with a damaged or missing axle shaft can also pose serious safety risks, including potential loss of control or further mechanical failure.
There are primarily two types of axle shafts used in automotive applications:
| Type | Application | Description |
|---|---|---|
| Front Axle Shaft | Front-Wheel Drive Vehicles | These are commonly known as half-shafts or CV axles and connect the differential to the front wheels. They use constant velocity joints to accommodate steering movements and suspension travel. |
| Rear Axle Shaft | Rear-Wheel Drive and Rear Differential Vehicles | Typically found in trucks and performance cars, these shafts transfer power to the rear wheels and are housed within a solid or independent rear axle assembly. |
In all-wheel-drive (AWD) and four-wheel-drive (4WD) systems, vehicles may employ both front and rear axle shafts to ensure power distribution to all wheels. Some advanced AWD systems also integrate electronic controls and clutch packs to optimize torque delivery based on road conditions and driver inputs.
