Types & Varieties of 25 AWG wire
25 AWG Copper wire is available in various types and configurations to suit specific applications. Due to its thin diameter, this wire is frequently used in fields requiring flexibility and precision, such as electronics, telecommunications, and medical devices.
Coated copper wire

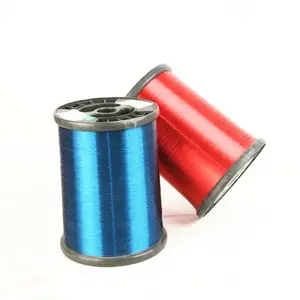

One of the most common types of 25 AWG wire is enamel-coated or insulating varnish. This type is primarily used in the electrical industry because the enamel coating protects the wire from short circuit and helps in insulation. It is primarily used in making motors, transformers, and inductors due to its excellent electrical properties.
25 AWG stranded wire
Another type is 25 AWG stranded wire. It consists of multiple strands. It is also known as multi-strand wire. This type of wire is very flexible and can be useful for soldering. Because of its flexibility, it is often used in applications that require repetitive bending, such as wire harnesses in the automotive industry.
Plated 25 AWG wire
Plated 25 AWG wire is mainly used in applications where it is exposed to corrosive elements. 25 AWG wire, which is plated with gold, silver, or tin, has better conductivity and anti-corrosive properties than copper wire. Therefore, this kind of wire is commonly used in areas exposed to harsh environmental conditions.
Steel-reinforced wire
25 AWG galvanized steel wire is not very common. However, if it is necessary to have the strength of steel with the conductivity of copper, then galvanized steel wire is the best choice. While it is not as conductive as copper, it provides greater tensile strength and is suitable for long-distance transmission lines.
Industrial applications of 25 AWG wire
25 AWG insulated wire is used in many industries. Because of its excellent properties, it can be used for fine wiring that requires precision and flexibility.
Telecommunications
25 AWG is used for wiring in the telecommunications industry. It is used to manufacture telephone cables, data transmission lines, and other communication devices because of its ability to carry signals with low attenuation. Due to its small size and flexibility, it can be easily used for internal wiring in different narrow spaces.
Electronics
The 25 AWG wire is commonly used in manufacturing circuit boards, sensors, and other electronic components. Its fine gauge allows easy soldering and integration into precision devices, such as home appliances. It is mainly used in devices like refrigerators and air conditioning systems, where small, lightweight wires are needed to support effective management without overheating.
Medical Devices
Because of its flexibility and precision, 25 AWG wire is used in several medical equipment, such as ECG wires, data cables, and internal components of medical monitors. It holds good conductivity while preventing any harm considering that it is used in critical equipment requiring reliability and durability.
Industrial machinery
It is also used for various industrial applications, such as motor windings, relays, and sensors. It is particularly useful for equipment in tight spaces, where the flexibility of the wire is crucial for proper installation. The 25 AWG wire efficiently transmits control signals and electrical power within complex machinery systems.
Robotics
It is also applied in robotics and automation systems. Due to its small size, it is ideal for wiring in robotic arms and sensors that require a high level of accuracy. The flexibility of the wire allows it to bend and move without breaking, making it suitable for dynamic applications. In these fields, the 25 AWG wire transmits signals and power to various components, enabling the robots to function accurately and efficiently.
Product specifications and features of 25 AWG wire
Specifications
- Diameter: The diameter of the 25 AWG wire is approximately 0.45 mm (0.0187 inches). Due to its small diameter, it is widely used in applications where precise and fine wires are needed.
- Material: Most of the 25 AWG wires are made of copper. Some are tinned or plated for better conductivity. Copper has excellent electrical conductivity.
- Insulation: The wire is often coated with different types of insulating materials, such as PVC, nylon, or enamel. The thickness and type of insulation depend on the specific application requirements.
The thickness of the insulating layer is about 0.5 - 1.0 mm. This increases the overall diameter of the wire. The insulating materials act as a protective layer and prevent the conductor from coming into contact with other conductors or metallic surfaces, which can cause short circuits.
- Resistance: The electrical resistance of 25 AWG wire is about 0.085 ohms per meter. This relatively low resistance makes it ideal for transmitting electrical signals over short distances.
The resistance is affected by temperature. It is important to consider in applications where the wire may carry a significant amount of current.
- Tensile Strength: The tensile strength of copper wire is around 210 MPa. This indicates how much force can be applied to the wire before it breaks. High tensile strength ensures that the wire will not snap during installation or in applications where the wire may be subjected to mechanical stress. The tensile strength may vary slightly depending on whether the wire is soft, hard, or heat-treated.
- Current-carrying capacity: 25 AWG wire can carry a maximum current of around 0.5 to 1.5 amperes for different applications. For instance, the wire can be used in household wiring and electronic applications where the current does not exceed 1.5 amperes.
How to install
- Preparation: Gather all the necessary tools and equipment for the installation, including wire cutters, strippers, a drill, anchors/screws, a screwdriver, a measuring tape, and a voltage tester. Check the area where the wire will be installed for any hazards, such as exposed wires. Plan the installation route by marking out where the wire will be run.
- Cut the Wire to Length: Measure the distance where the wire will be installed and then cut it using wire cutters. Ensure there is extra length at each end to allow for connections. Use wire strippers to remove about 1/4 inch (6 mm) of insulation from each end of the wire.
- Run the Wire: If the wire needs to be secured along walls, through ceilings, or floors, use a drill to make holes and anchors/screws to secure it. For wiring appliances or devices, simply attach the wire directly to the corresponding terminals or connectors.
Key considerations when selecting a 25 AWG wire
- Material: 25 AWG wires are often made of copper because it has excellent conductivity. There are wires coated with other metals, like tin. These types of wires are used in areas prone to rust.
- Stranded vs. Solid: A stranded wire consists of tiny strands. This one is bendable and is used in places where wires will be constantly moved or bent. The solid wire has a single, thick strand. This one is often used in permanent settings where strong connections are required.
- Insulation Type: 25 AWG copper wire is insulated with various materials, including PVC, silicone, and enamel. Each material has unique properties. PVC is tough and inexpensive. Silicone is heat-resistant, while enamel provides a thin, space-saving coating.
- Coating: Tinning or adding other metals to the 25 Awg wire improves its resistance to rust and ensures better soldering. For example, tinned wire keeps connections strong, especially in moist or outdoor conditions.
- Flexibility: If frequent movements or bends are expected, consider a stranded wire, which is more flexible than a solid wire. Stranded wire is best for applications requiring frequent movement or installation in tight or curved spaces.
- Corrosion Resistance: If the wire will be used outdoors or in a chemically harsh environment, choose tinned (tin-coated) wire. Tin acts as a protective shield, preventing rust on the copper wire underneath.
- Temperature Rating: Make sure the wire is rated for the temperature it will face. For instance, if the wire is for an application that generates a lot of heat, like an engine or furnace, get a wire with heat-resistant insulation, such as silicone.
- Cost: While often more expensive due to its enhanced properties, tinned wire delivers better long-term value in applications where corrosion is a concern. Other coatings, like enamel, may be more affordable while still offering effective protection for indoor or controlled environments.
- Load Capacity: Ensure proper wire sizes for power transmission. Thinner wires, like 25 AWG, are suited for light loads. For heavier electrical currents, wider wires are required to avert overheating and potential hazards. This is important for home wiring and appliance and electronic device applications. The choice of the right gauge helps maintain efficient power delivery while ensuring safety.
Q & A
Q. What is the maximum current a 25 AWG wire can hold?
A: This wire can carry up to 5A in short bursts. For sustained use, it typically handles 0.5 to 1.5 amperes, depending on the environment.
Q. Is 25 AWG wire suitable for long-distance transmission?
A: While flexible and great for tight spaces, it's best for short distances. For longer runs, a thicker wire is recommended to reduce signal loss.
Q. Can 25 AWG wire be used outdoors?
A: Yes. Use rust-resistant varieties like tinned copper, especially in places with moisture or salt in the air. It is great for outdoor and marine use.
Q. Is 25 AWG stranded wire better than solid wire?
A: The stranded wire is more flexible, making it ideal for moving parts or tight spaces. Solid wire offers a stronger, more durable connection in fixed locations.
Q. How do you know if 25 AWG wire is of good quality?
A: A voltage tester can check for breaks or weak spots. Good-quality wire ensures a stable signal with minimal interruptions or power loss.
